Buy testo testo 860i Schimmel-Set Hygrometer 0 RH 100 RH

A case containing a digital instrument set with two orange and black devices and a USB cable, designed for measuring temperature and humidity.

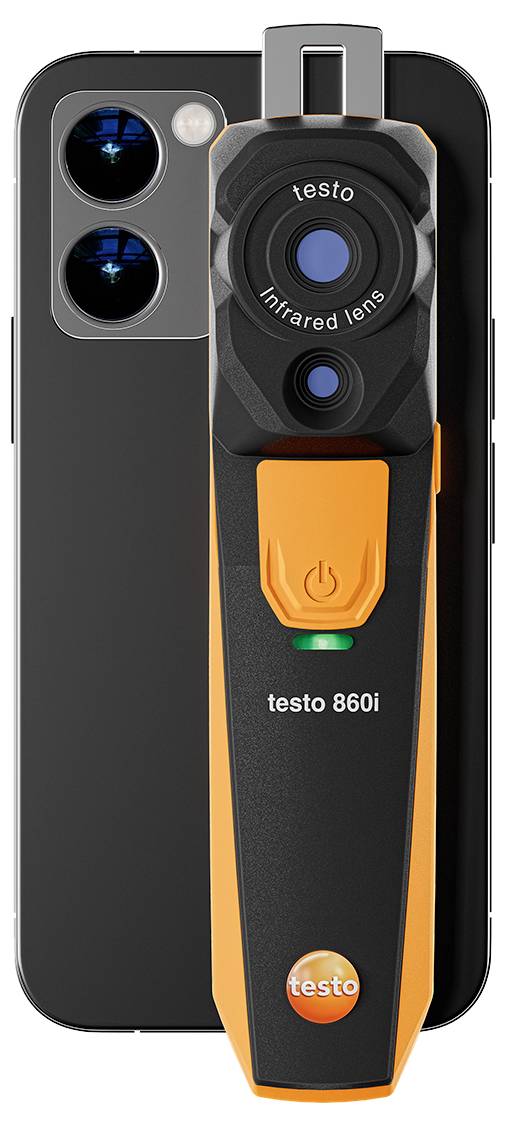

A handheld thermal imaging device with an infrared lens lies on top of a smartphone, indicating compatibility or connectivity between them.

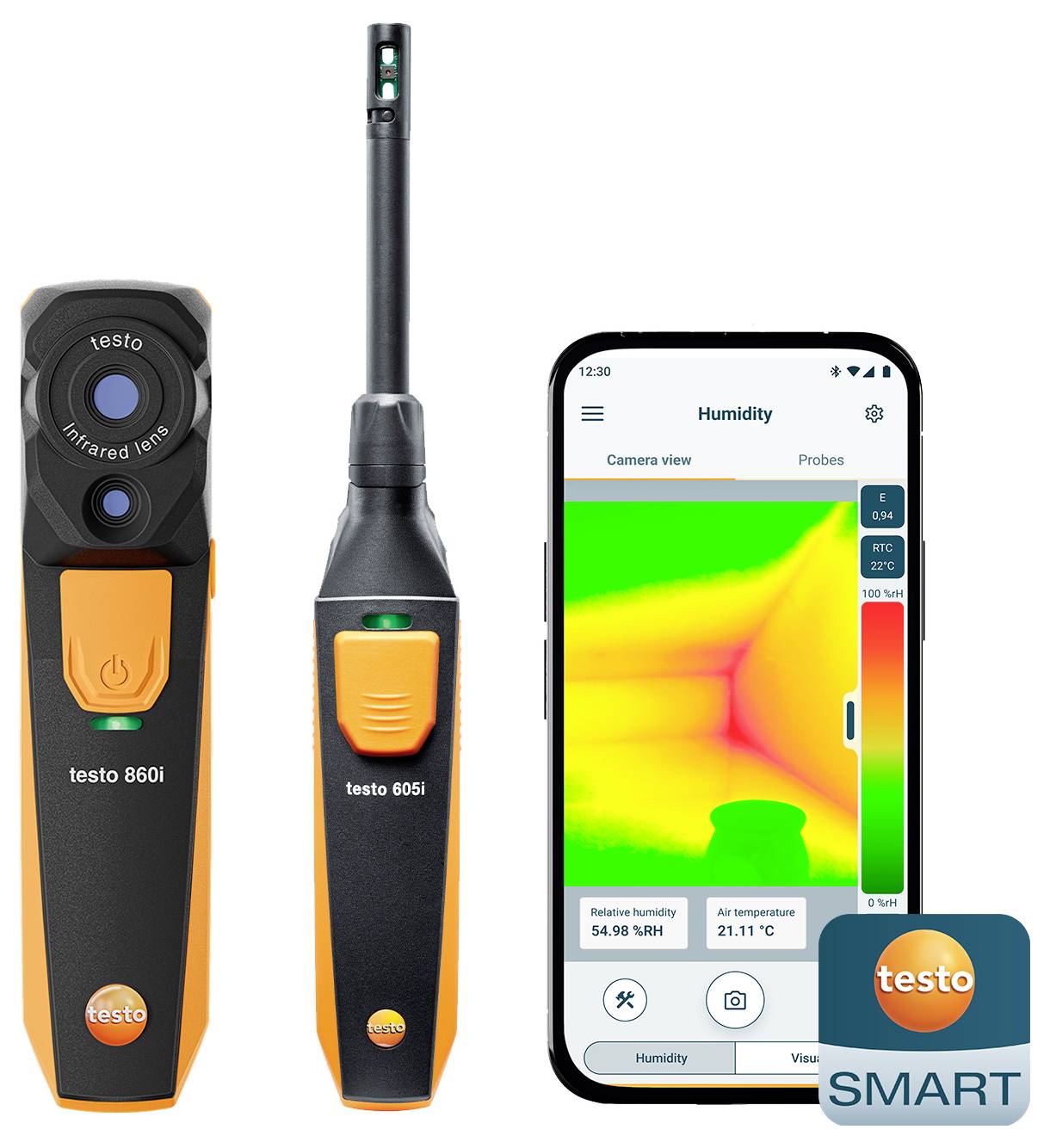

'Testo SMART' devices: an infrared camera and a probe, alongside a smartphone displaying humidity readings and thermal imaging results.

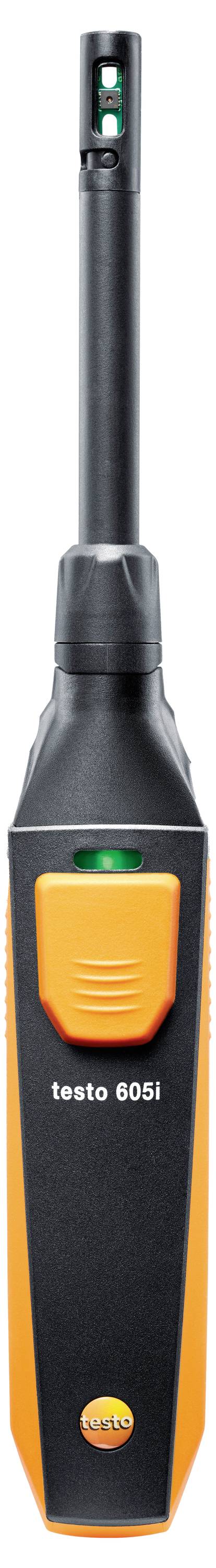

A handheld digital thermometer with an integrated humidity probe, labeled 'testo 605i', featuring a bright orange and black design.

Handheld gas detector with orange and black casing labeled 'testo 650.'

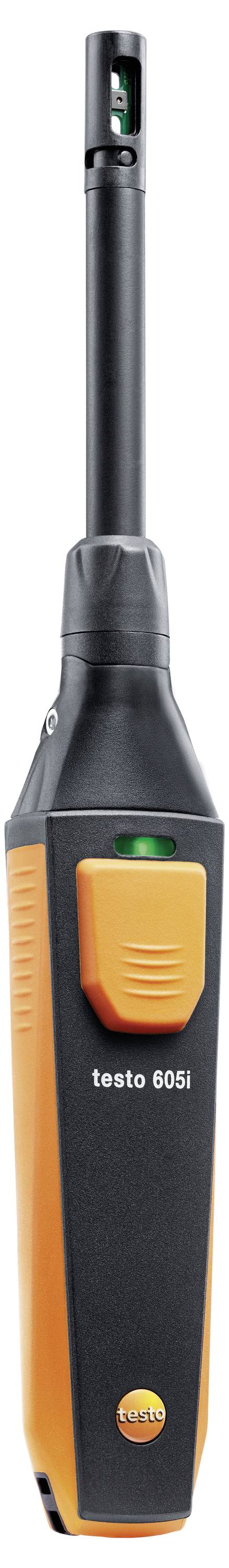

Handheld digital instrument with a black and orange body, labeled 'testo 605i,' featuring a probe at the top for measuring air parameters.

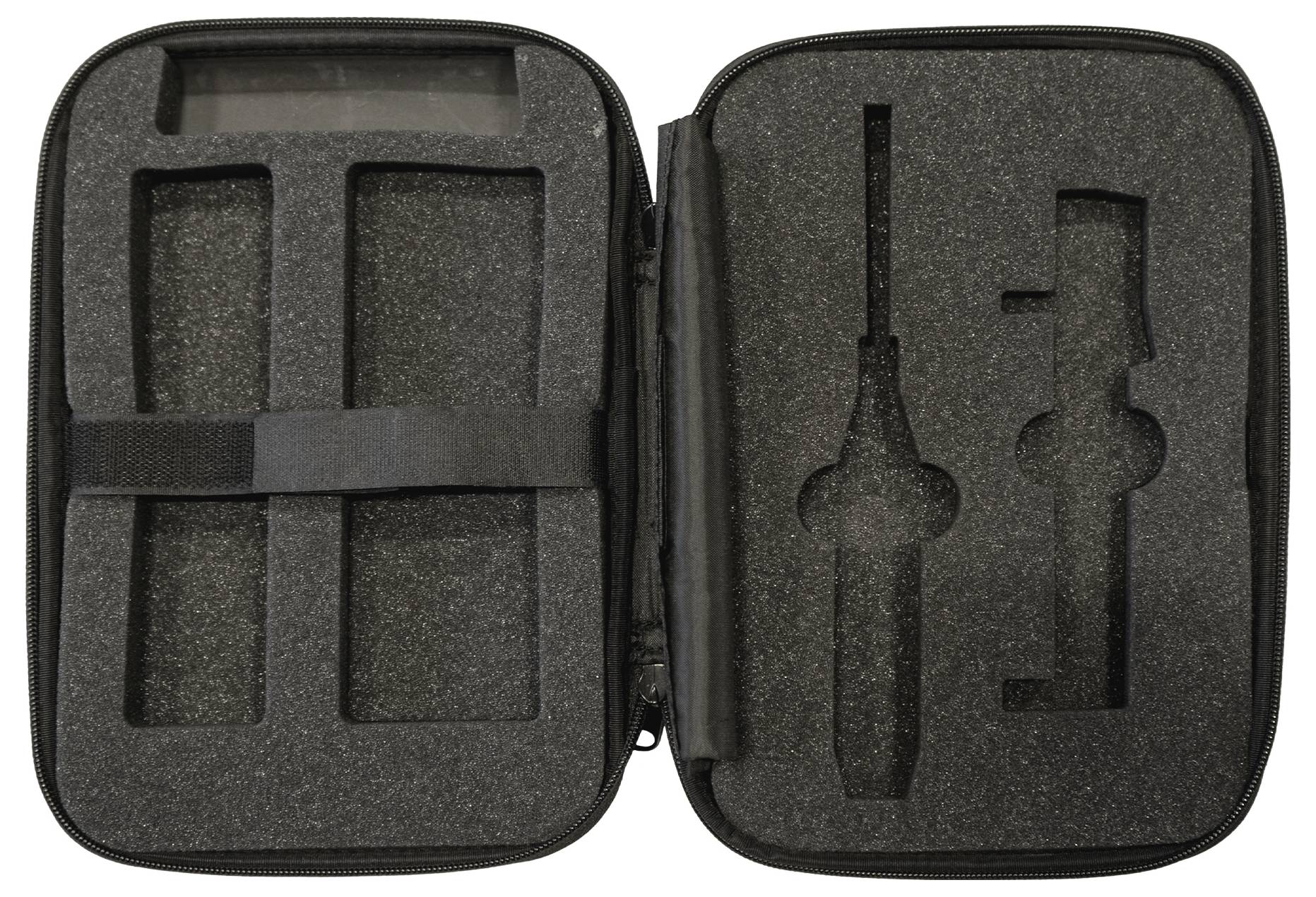

Open black foam case with cutouts designed for holding tools or equipment, two compartments on the left and two on the right.

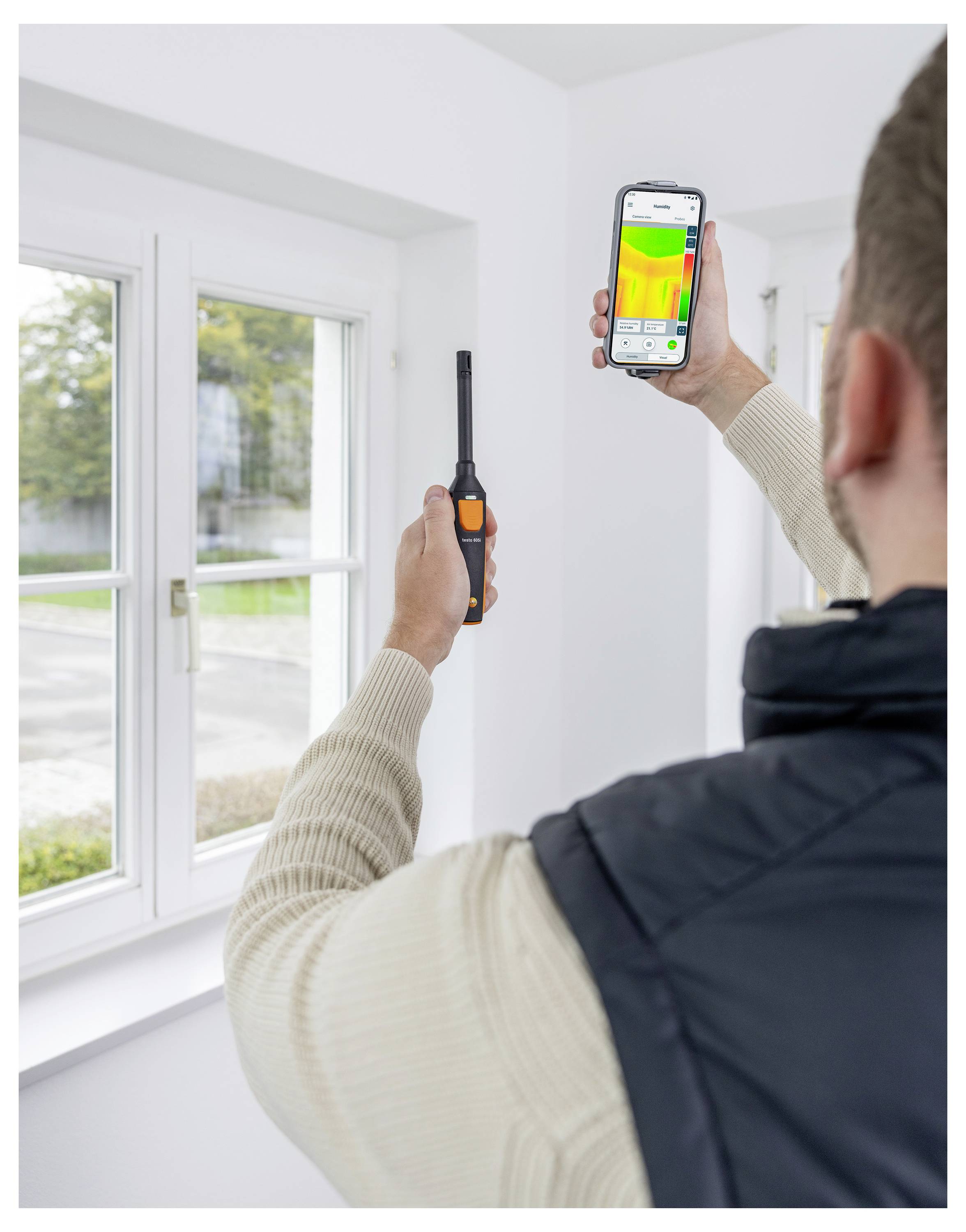

'A person uses a smartphone with an attached thermal imaging device to scan the wall near a window, displaying a colorful heat map.'

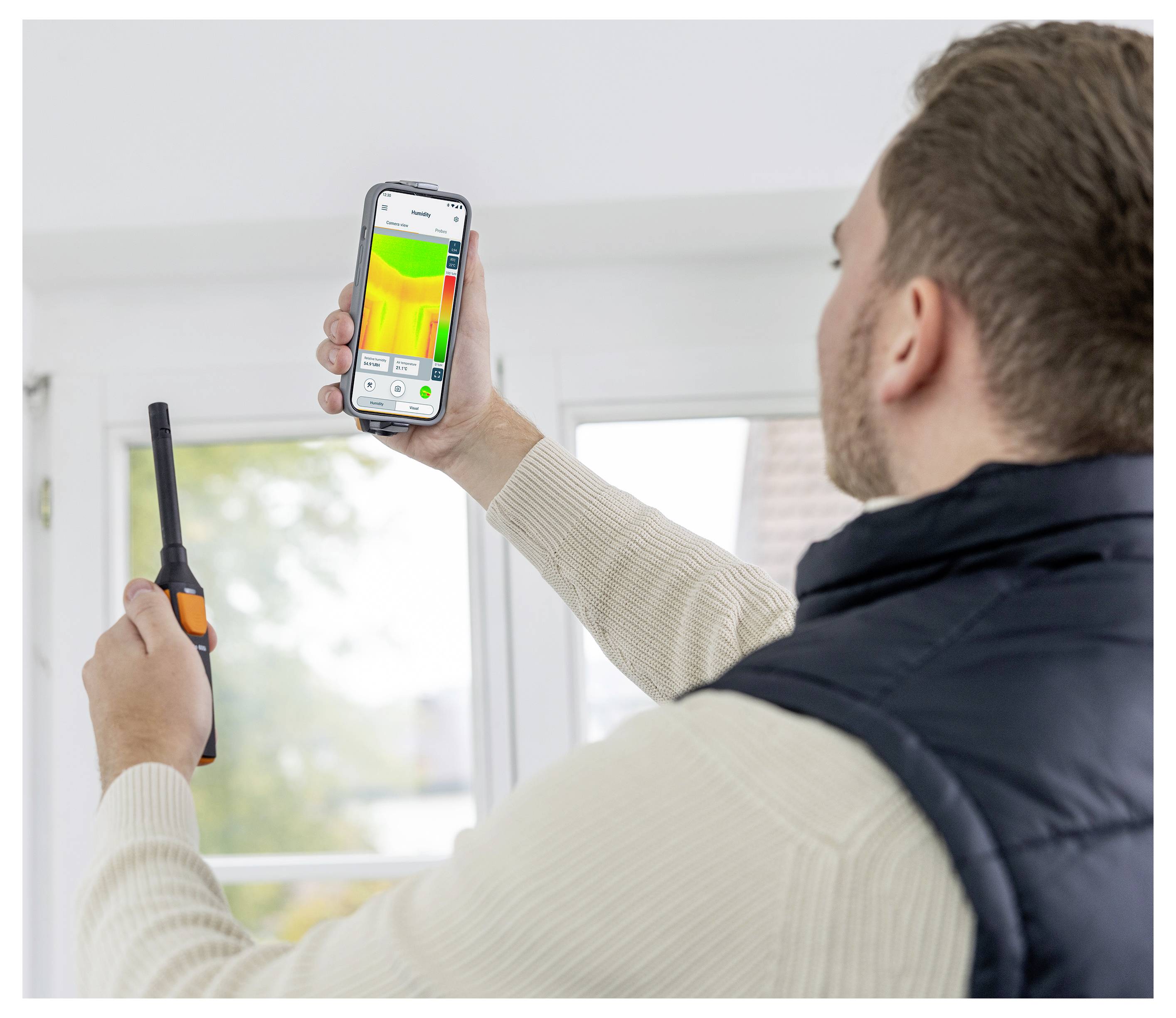

A person holds a smartphone displaying a thermal image app while using a handheld device. They appear to be checking for temperature variations indoors.

1/11

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 578.99 / piece)

€ 578.99

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

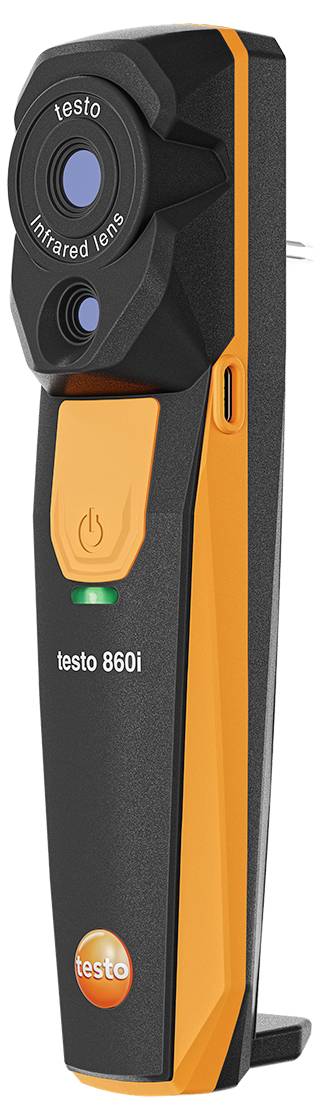

testo 860i mold set – Thermal camera testo 860i with Bluetooth humidity sensor testo 605i

Early detection of areas prone to mold thanks to the combination of thermal image and climate measurement
Simple, fast and clear mold indication via traffic-light colors
Everything central in the testo Smart APP: Combined measurement values, simple evaluation and direct documentation on site
High-resolution thermal images (256 × 192 pixels) for a targeted analysis of critical wall and ceiling areas

Technical specifications

Mould indication using traffic light principle (green, yellow, red) for identifying vulnerable zones
Infrared resolution 256 x 192 pixels
Thermal sensitivity (NETD): 50 mK
Protection class: IP54
Operating time: 2 hours (testo 860i) or 150 hours (testo 605i)

Product type: Hygrometer

Max. temperature: 350 °C

: Manufacturer's standards (no certificate)

Weight: 195 g

Basic accuracy: 3 %

Accuracy ± °C: 3 °C

Calibration service: The set contains a calibration protocol for the testo 605i

Humidity reading range (max.): 100 RH

Humidity reading range (min.): 0 RH

Humidity reading accuracy: 2 RH

Interfaces: USB-C
Bluetooth®

Min. temperature: -20 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3736797 testo testo 860i Schimmel-Set Hygrometer 0 RH 100 RH

User & Safety Instructions

User & Safety Instructions 3736797 testo testo 860i Schimmel-Set Hygrometer 0 RH 100 RH

Description

With the testo 860i mold set mold risks are detected early, before mold starts – with the infrared camera testo 860i and the thermo-hygrometer testo 605i. The combination of a thermal imager and a hygrometer allows the analysis of entire areas in the thermal image; the analysis of surface temperature and humidity safely identifies areas that are prone to mold before damage occurs. Mould is clearly indicated on the basis of the traffic light principle (green, yellow, red): Green does not indicate the risk of mold and red indicates an acute risk of mold formation. All measurement data can be easily evaluated and documented via the testo Smart APP and images are stored and sent directly on site as a report. In a practical set with suitable transport bag.

This text is machine translated.

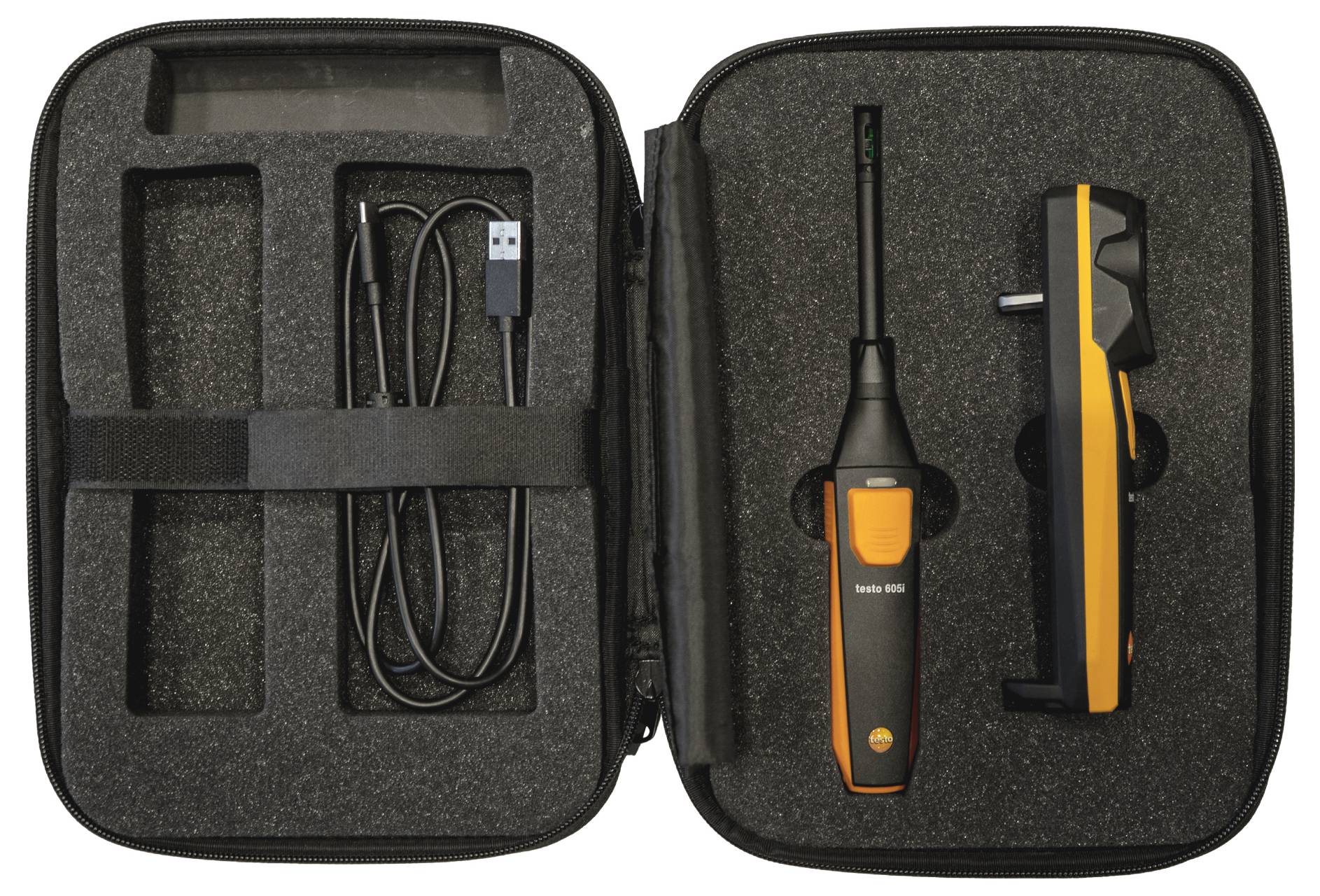

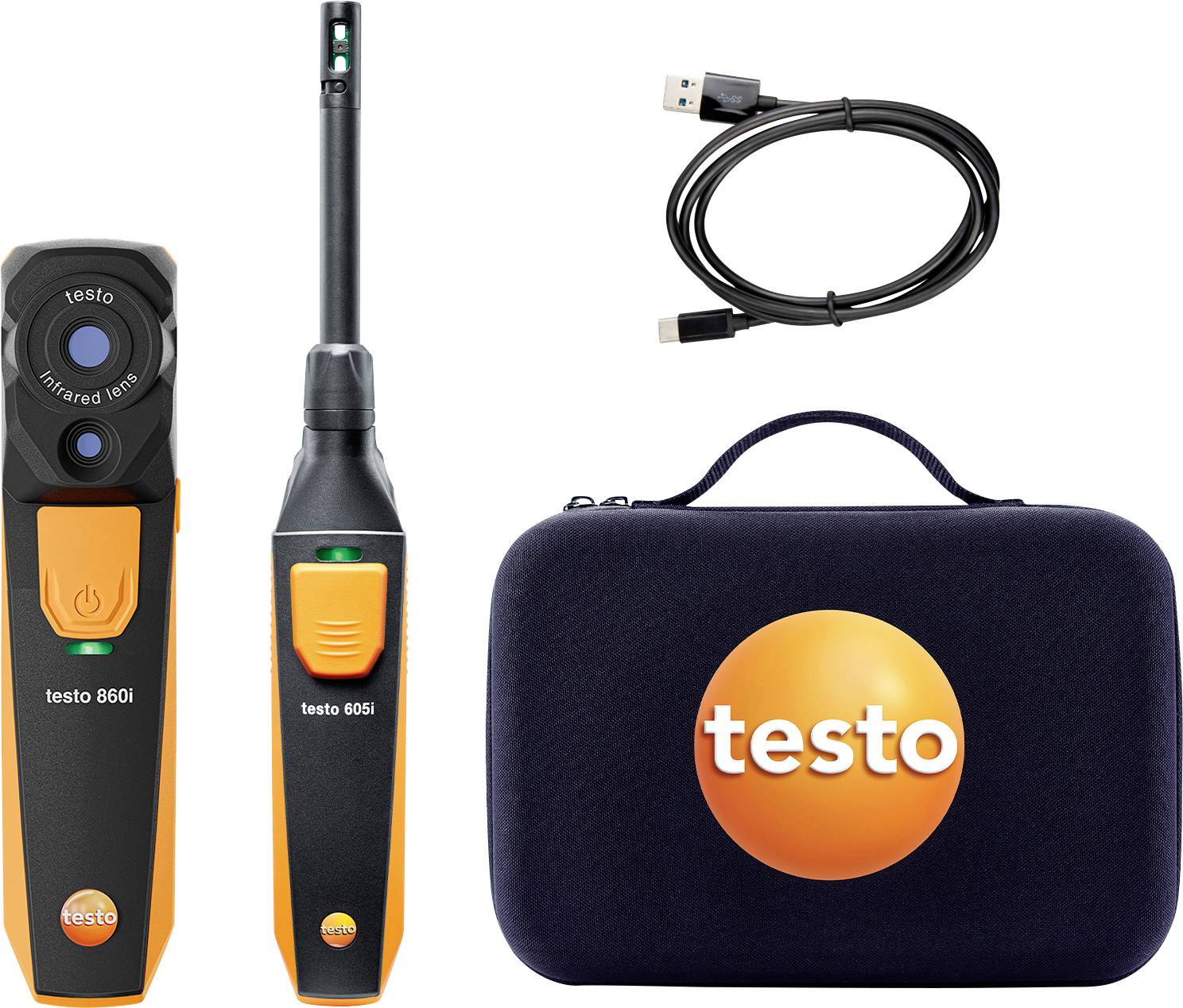

Scope of delivery

testo 860i – thermal imager for smartphones, includes USB-C cable

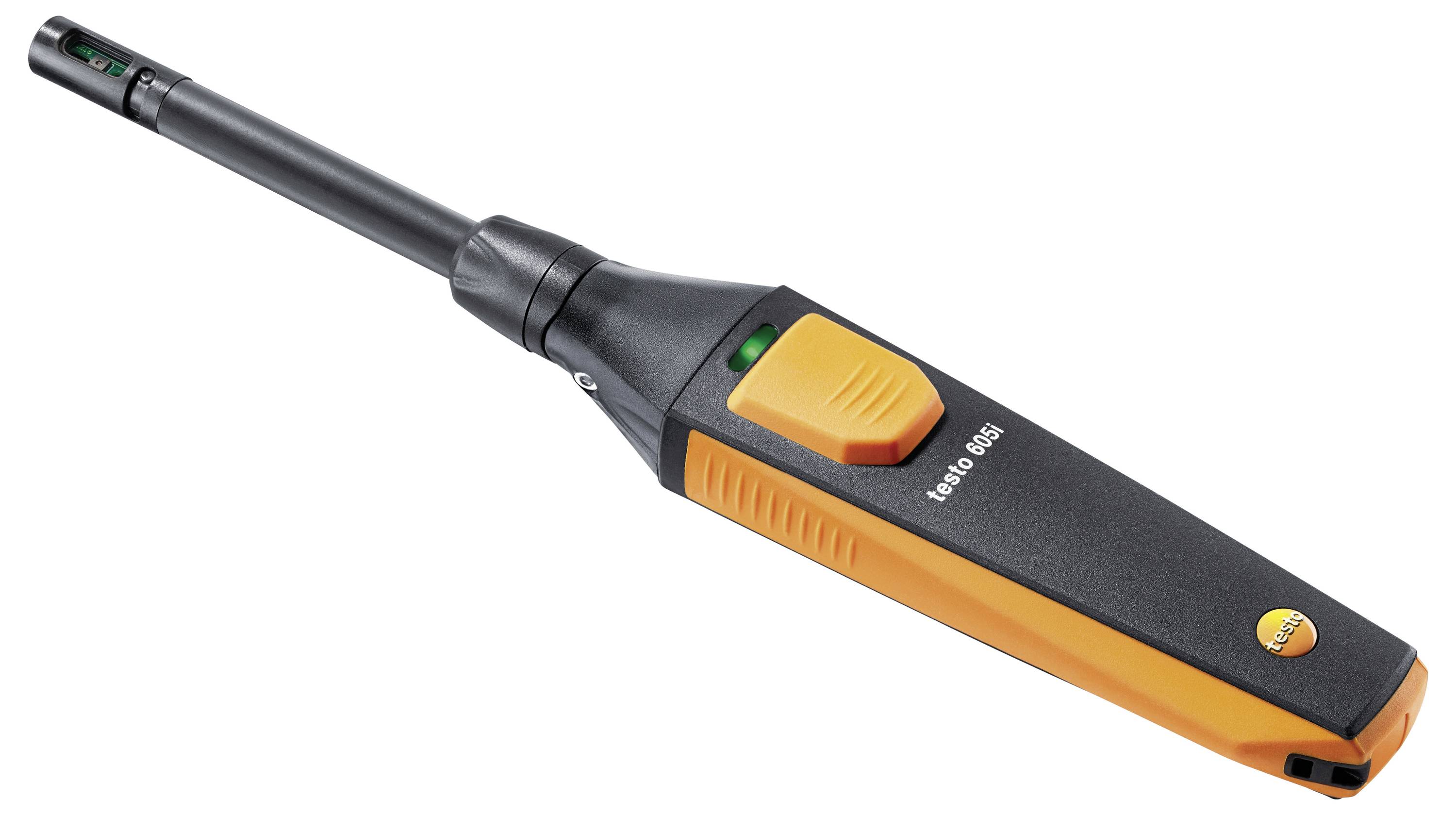

testo 605i - thermo-hygrometer, incl. batteries
testo Smart case (incl. foam insert)

System requirements

testo Smart App: IOS version ≥ 17 / Android version ≥ 14
PC software: testo IRSoft: Windows 10, Windows 11
