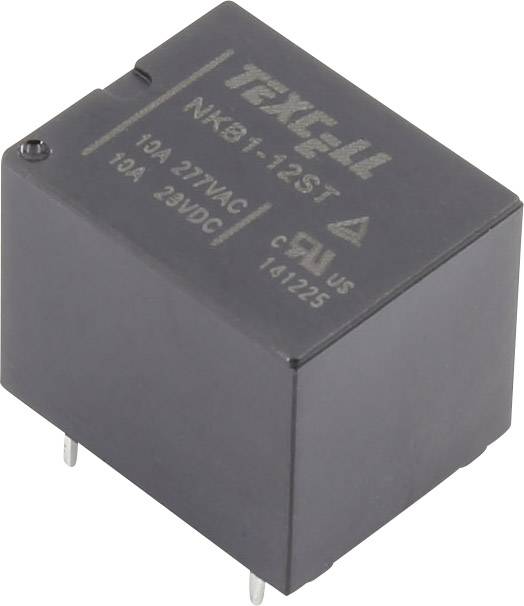

Texcell NKB1-12ST PCB relay 12 V DC 10 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
30 V DC
277 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Technical specifications
- Product type
PCB relay
- Type
NKB1-12ST
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
15.6 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
400 Ω
- Coil voltage rating
360 mW
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
30 V DC
277 V AC
- Switching current (max.)
10 A
- Max. switching capacity
210 W
2770 VA
- Connection
Solder pins
- Electrical lifespan
1 x 10 5 cycles
- Durability
1 x 107 switching operations
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
10 g
- Factory colour
Black
- Length
19 mm
- Width
15.2 mm
- Height
15.5 mm
- Dim
(L x W x H) 19 x 15.2 x 15.5 mm
- Content
1 pc(s)
