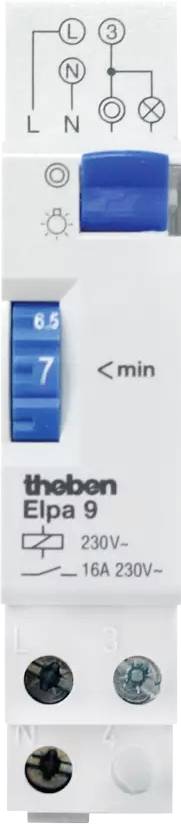

Electromechanical time switch 'Theben Elpa 9' for DIN rail mounting. Shows manual time controls and symbol descriptions.

Electromechanical time switch 'Theben Elpa 9' for DIN rail mounting. Shows manual time controls and symbol descriptions.

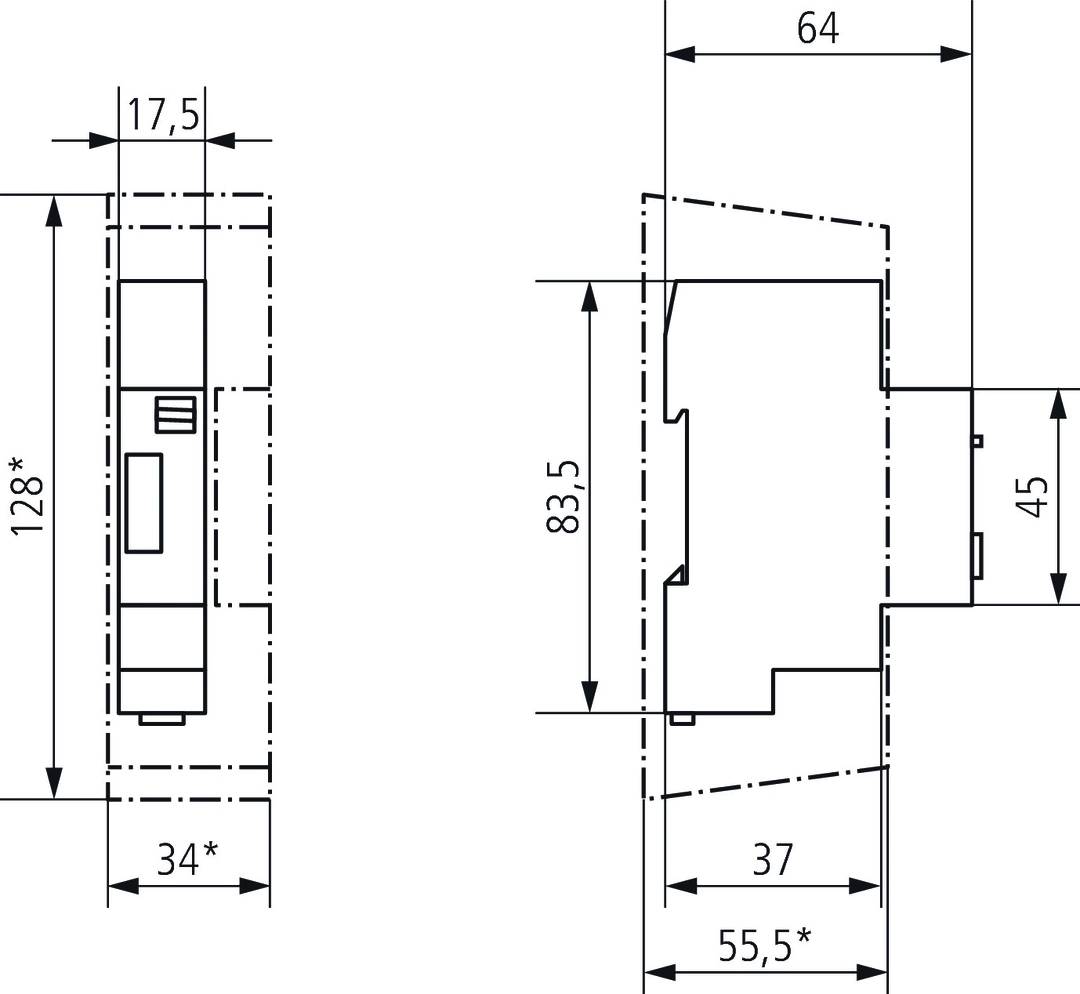

Technical drawing of a component with dimensions: Height 83.5 mm, Width 64 mm, Depth 17.5 mm, lateral dimensions 37 mm and 55.5 mm.

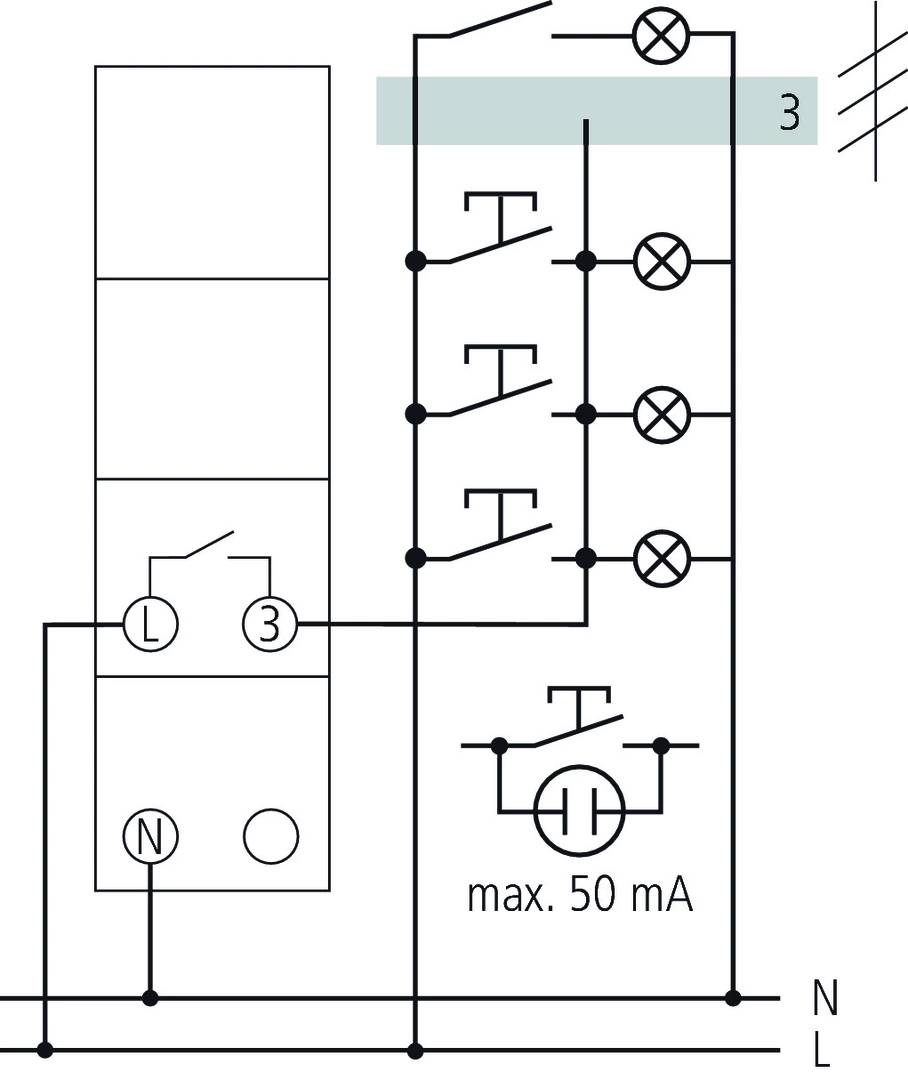

'Circuit diagram of an electrical circuit with switches, lamps and a current not exceeding 50 mA, showing connections and junction points.'

1/3

Product type

TDR

Nominal voltage

230 V AC

Mounting type

DIN rail

Nominal current

16 A

Dim

(W x H x D) 17.5 x 83.5 x 64 mm

Datasheet (PDF)

Deutsch (Deutschland)

Theben

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: TDR

Nominal voltage: 230 V AC

Nominal current: 16 A

Mounting type: DIN rail

Dim: (W x H x D) 17.5 x 83.5 x 64 mm

Width: 17.5 mm

Height: 83.5 mm

Depth: 64 mm

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3360593 Theben 0090001 TDR DIN rail 230 V AC

User & Safety Instructions

User & Safety Instructions 3360593 Theben 0090001 TDR DIN rail 230 V AC

What kind of Staircase Lighting Switches are you looking for?

TDR
