Theben 1010200 Surface-mount Motion detector 180 ° White IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Connection type: screw terminal
- Material: plastic
- Max. Switch-on current: 10 A
- Product type
Motion detector
- Detection angle
180°
12 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Twilight settings
2 – 200 lx
- Factory colour
White
IP55
- Operating temperature
-25 °C - +45 °C
- Length
66 mm
- Width
82 mm
- Height
82 mm
- Dim
(L x W x H) 66 x 82 x 82 mm
- Weight
0
Surface mounted (plaster)
White
82
Movement sensor
FALSE
82 mm
66 mm
Screwed terminal
Untreated
AC
50-60 MHz
TRUE
Thermoplastic
10 A
Plastic
9010
IK04
230-230 V
IP55
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2156481 Theben 1010200 Surface-mount Motion detector 180 ° White IP55
User & Safety Instructions
User & Safety Instructions 2156481 Theben 1010200 Surface-mount Motion detector 180 ° White IP55
Description

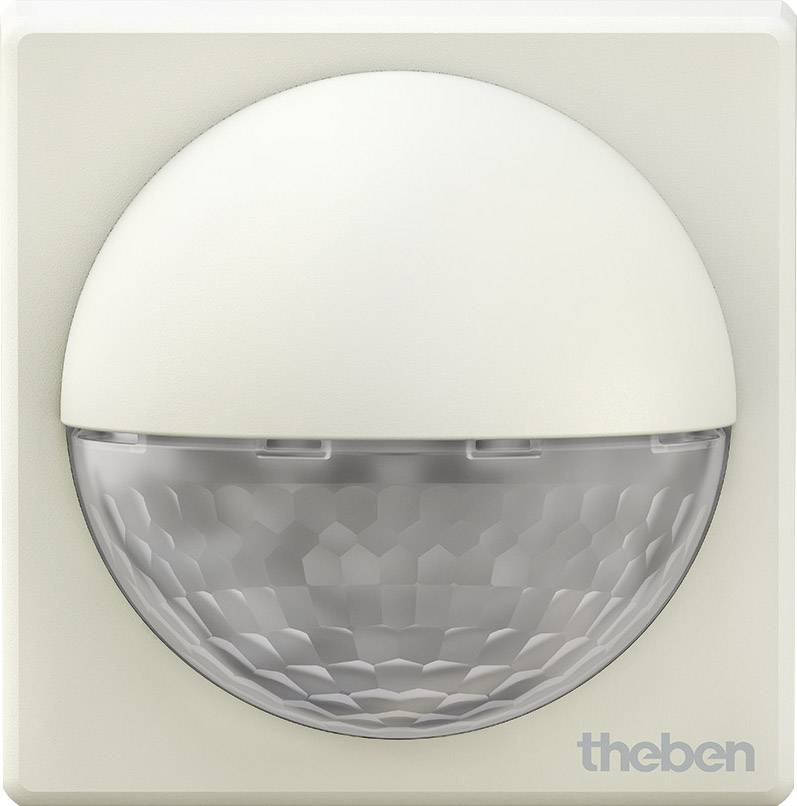

Motion detector for wall mounting, secure protection against manipulation thanks to robust housing design, concealed controls under the secured front hood, zero-voltage switching, automatic switching brightness and, depending on movement, teach-in function, mixed light measurement, including screws and plugs
