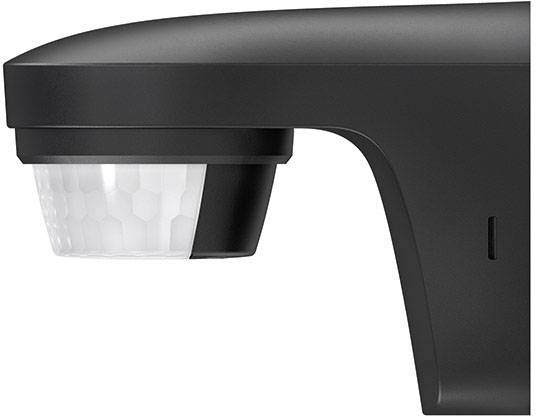

Theben 1010501 Surface-mount Motion detector 150 ° Black IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Connection type: screw terminal
- Material: plastic
- Max. Switch-on current: 10 A
- Product type
Motion detector
- Detection angle
150°
12 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Twilight settings
5 - 1000 lx
- Factory colour
Black
IP55
- Operating temperature
-25 °C - +45 °C
- Length
127 mm
- Width
100 mm
- Height
85 mm
- Dim
(L x W x H) 127 x 100 x 85 mm
- Weight
0.2770
Surface mounted (plaster)
Black
100
Movement sensor
FALSE
85 mm
127 mm
Screwed terminal
Untreated
AC
50-50 MHz
TRUE
Thermoplastic
10 A
Plastic
9005
IK04
230-230 V
IP55
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2154086 Theben 1010501 Surface-mount Motion detector 150 ° Black IP55
User & Safety Instructions
User & Safety Instructions 2154086 Theben 1010501 Surface-mount Motion detector 150 ° Black IP55
Description
Motion detector for wall mounting, rotating and tilting sensor head, additional sneak, indoor or outdoor installation, zero-voltage switching, automatic switching brightness and, depending on movement, teach-in function, mixed light measurement, including screws and plugs
