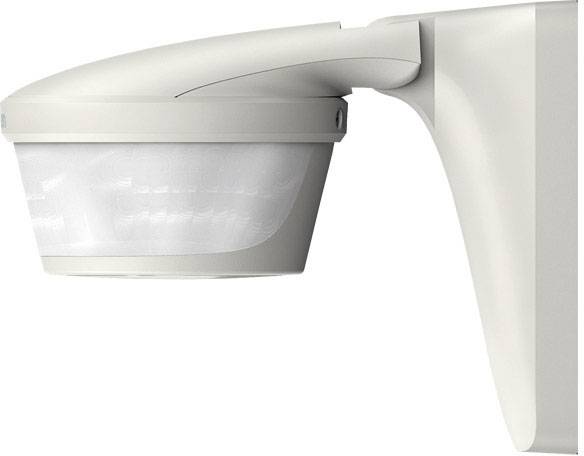

Theben 1010610 Surface-mount Motion detector 300 ° White IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Connection type: screw terminal
- Material: plastic
- Max. Switch-on current: 10 A
- Product type
Motion detector
- Detection angle
300°
16 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Twilight settings
5 - 1000 lx
- Factory colour
White
IP55
- Operating temperature
-25 °C - +45 °C
- Length
161 mm
- Width
127 mm
- Height
97 mm
- Dim
(L x W x H) 161 x 127 x 97 mm
Surface mounted (plaster)
White
127
Movement sensor
FALSE
97 mm
161 mm
Screwed terminal
Untreated
AC
50-50 MHz
TRUE
Thermoplastic
10 A
Plastic
9010
IK04
230-230 V
IP55
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2152259 Theben 1010610 Surface-mount Motion detector 300 ° White IP55
User & Safety Instructions
User & Safety Instructions 2152259 Theben 1010610 Surface-mount Motion detector 300 ° White IP55
Description
Motion detector for wall or ceiling installation, rotating and tilting sensor head, additional sneak, indoor or outdoor installation, sensitivity can be reduced, remote control, automatic switching brightness and, depending on movement, teach-in function, mixed light measurement, including distance holder, Eckwinkel, screws and wall plugs,
