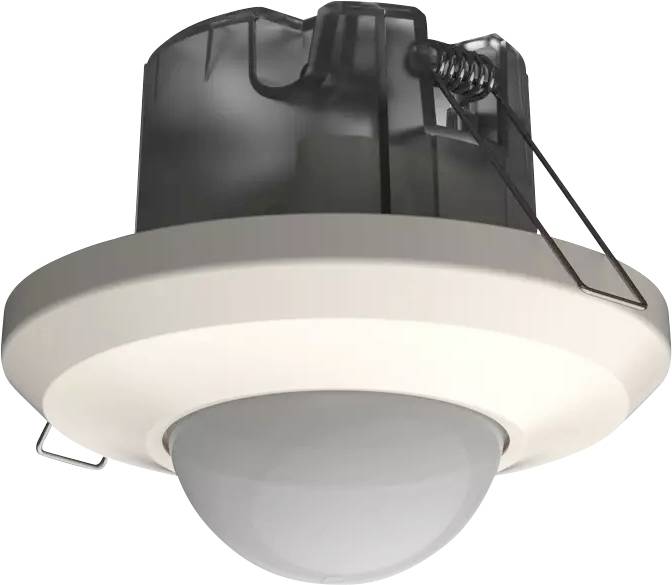

Ceiling-mounted motion sensor in a round, rotatable housing with a white casing, typical of security and automation systems.

Ceiling-mounted motion sensor in a round, rotatable housing with a white casing, typical of security and automation systems.

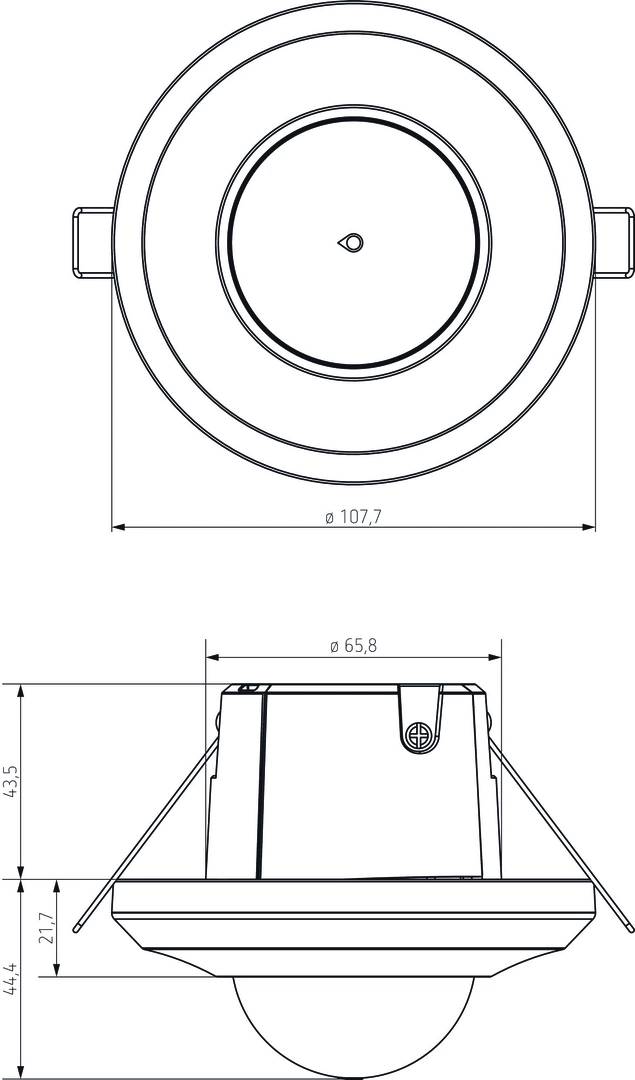

Technical drawing of a round device with dimensions: diameter 107.7 mm at top, 65.8 mm at bottom, height 43.5 mm.

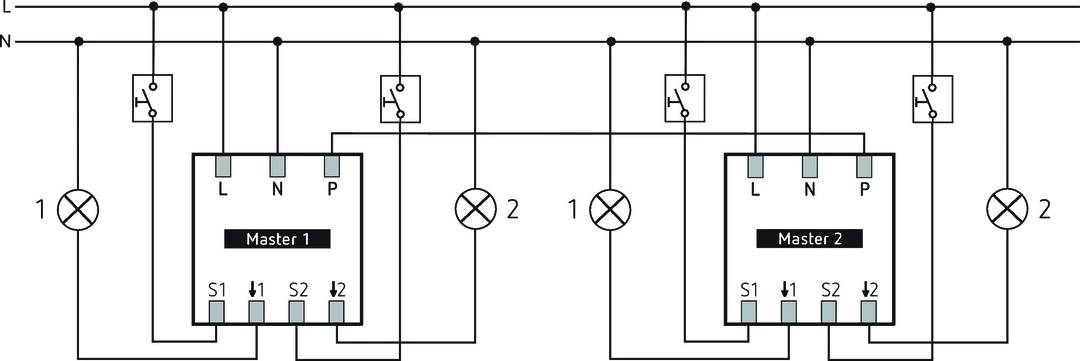

Circuit diagram of an electrical circuit with two switches and two lamps. Lamps are labelled '1' and '2'.

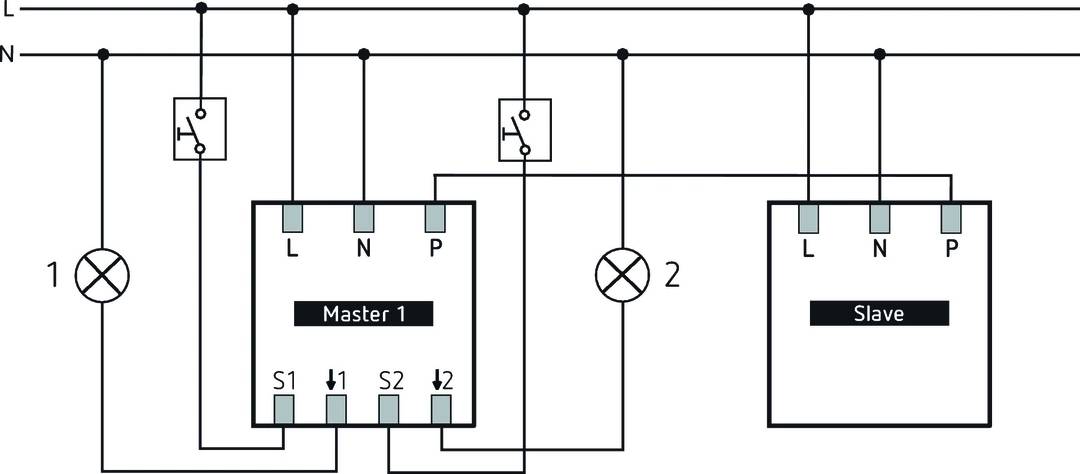

Circuit diagram with switch 'Master 1', two buttons 'S1', 'S2', and lamp '2'. Electrical circuits and connections are shown.

The circuit diagram shows the connection of switches (S1, S2) to a 'master' module with L/N inputs. Detailed electrical control.

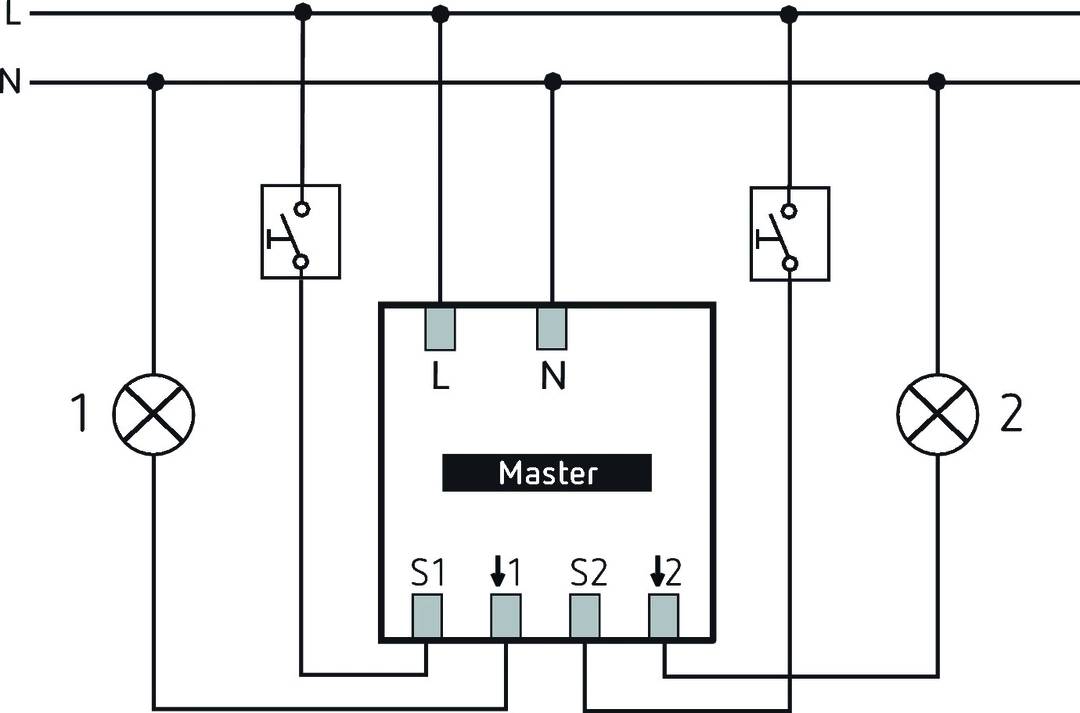

Circuit diagram of an electrical system with a 'master' device connected to two switches (S1, S2) and conductors (L, N).

1/6

Theben

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Occupancy sensor

: 6 m

Mounting type: Ceiling

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity (LED): 600 W

Standby current consumption: 0.5 W

Factory colour: White

Similar RAL: 9010

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3358058 Theben 1040200 Ceiling Occupancy sensor Relay White

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 3358058 Theben 1040200 Ceiling Occupancy sensor Relay White
