Buy Theben 1110230 Twilight switch

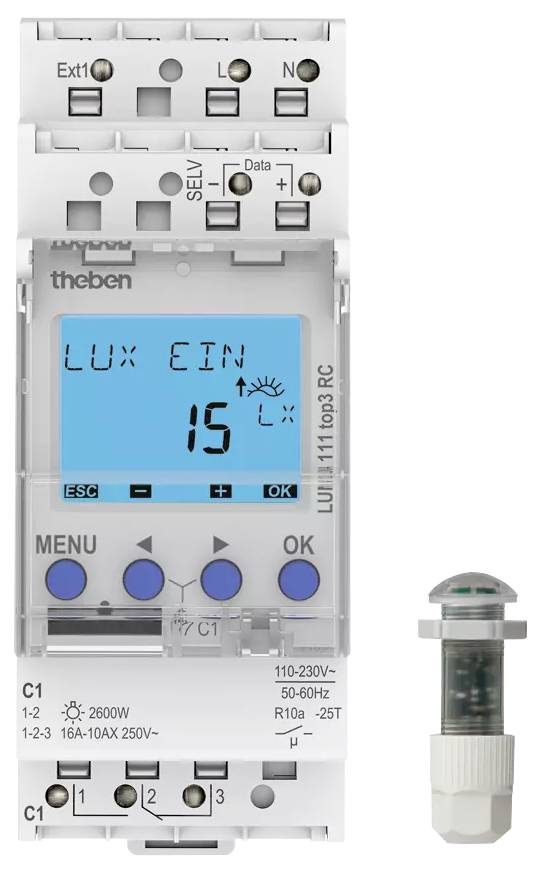

Electronic device with display. Display reading: '15 LUX ON' with symbols for settings and OK. View of a rotary switch on the right.

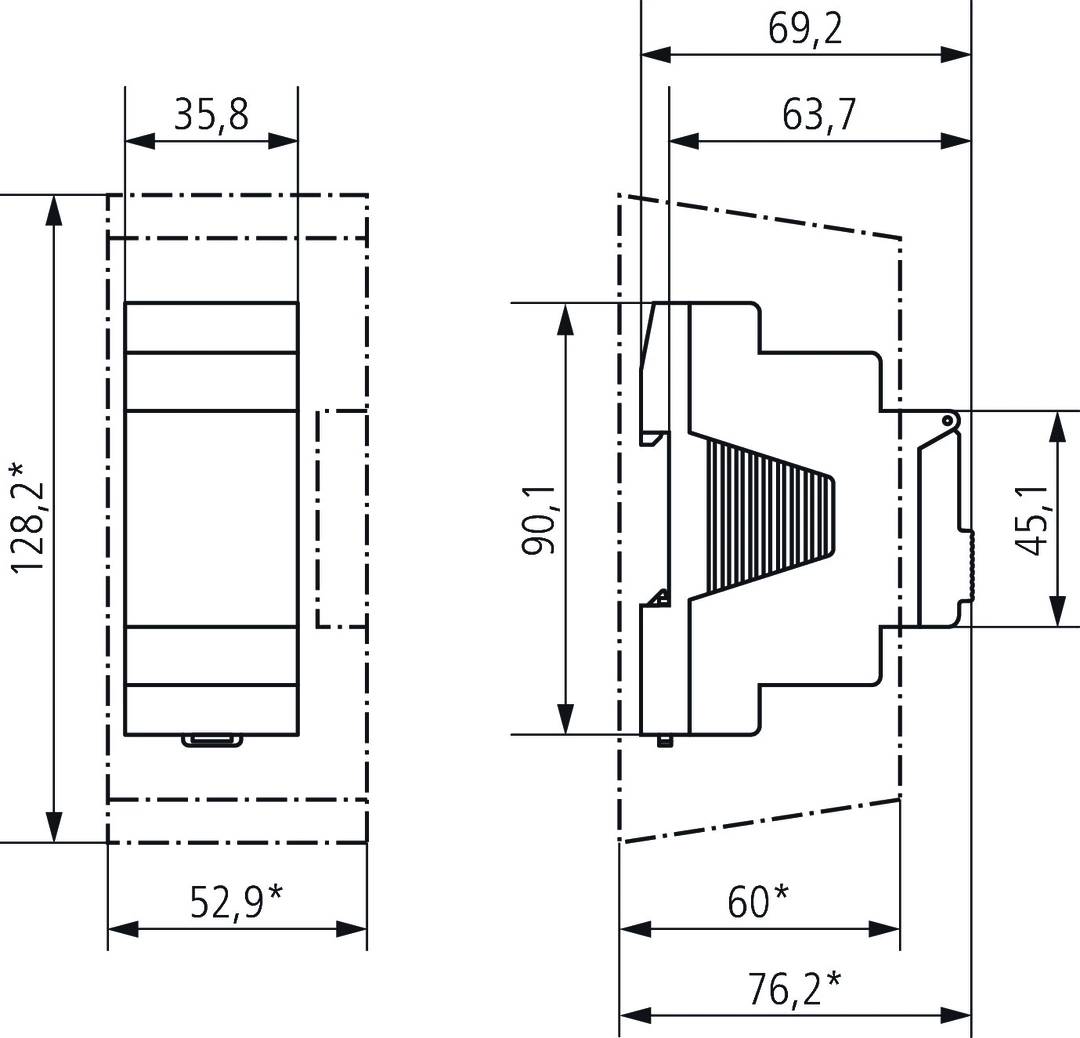

Technical drawing of a bracket with dimensional specifications: Width 35.8 mm, Height 126.2 mm, Depth 52.9 mm. Element details and sectional view.

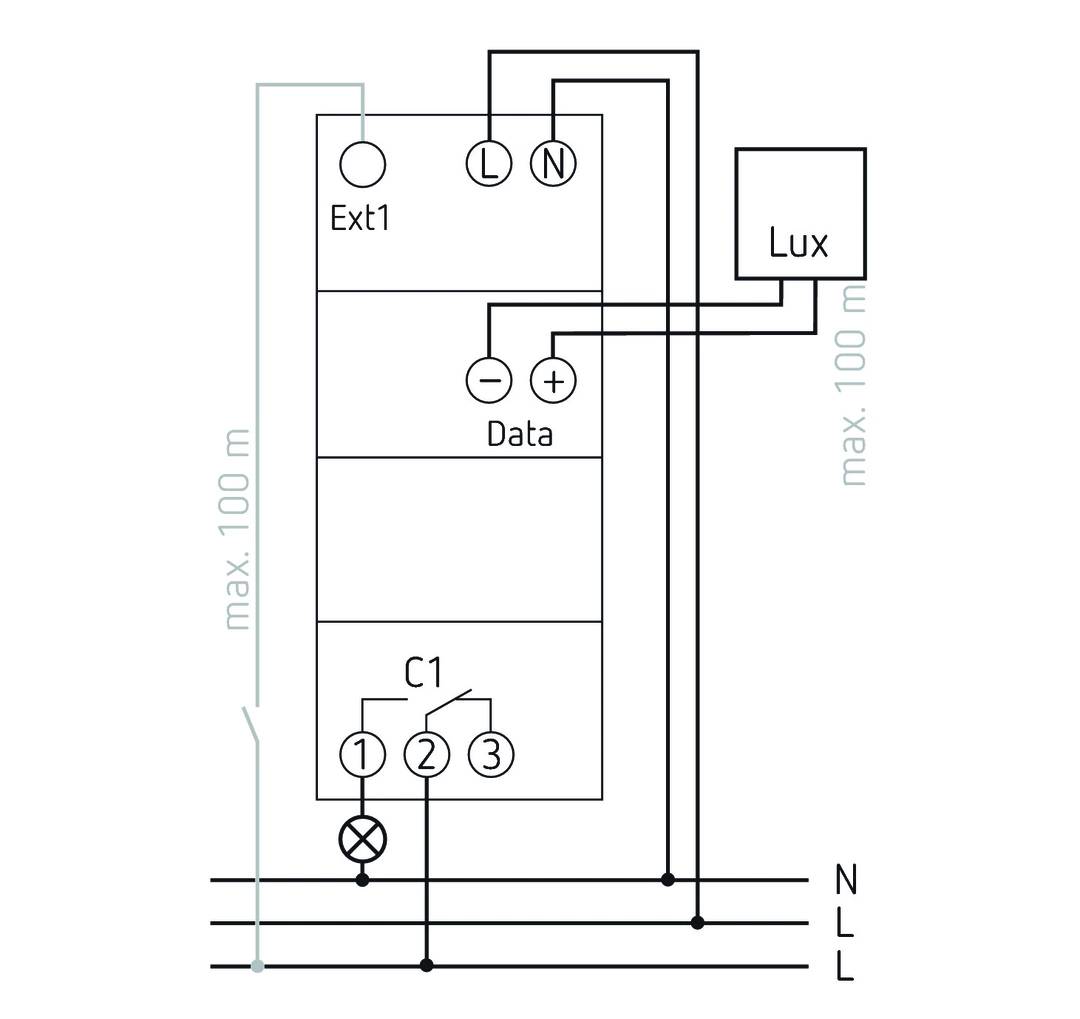

Circuit diagram of a lighting control system, showing the connection between Ext1, light sensor and C1 with power supplies N and L.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Twilight switch

Mounting type: DIN rail

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3357915 Theben 1110230 Twilight switch

User & Safety Instructions

User & Safety Instructions 3357915 Theben 1110230 Twilight switch

Description

Digital twilight switch/light control device, 1 channel, separate built-in light sensor (IP 66) included in delivery, 1-99,000 lx, external input, width 2 TE, APP-programming possible, Secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum tamper protection, programs can only be transferred from the APP into the watch if the Bluetooth OBELISK top3 is in the watch, 600 watts LED power, 800 amps/200 microseconds inrush current, low standby power, operating hours counter, Duoffix plug-in terminals, power reserve, OBELISK interface for PC programming

This text is machine translated.
