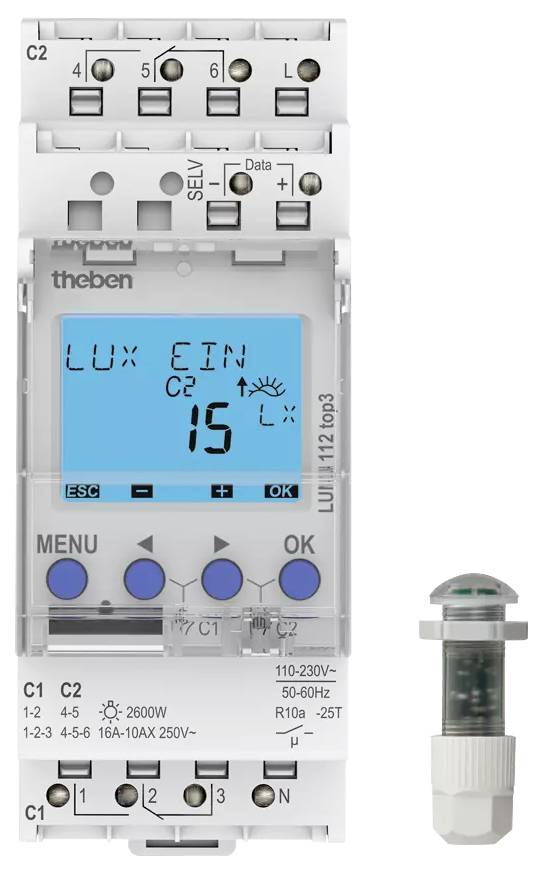

Digital light sensor installed in an electrical device with a blue display, showing 'LUX ON C2', controls light based on brightness.

Digital light sensor installed in an electrical device with a blue display, showing 'LUX ON C2', controls light based on brightness.

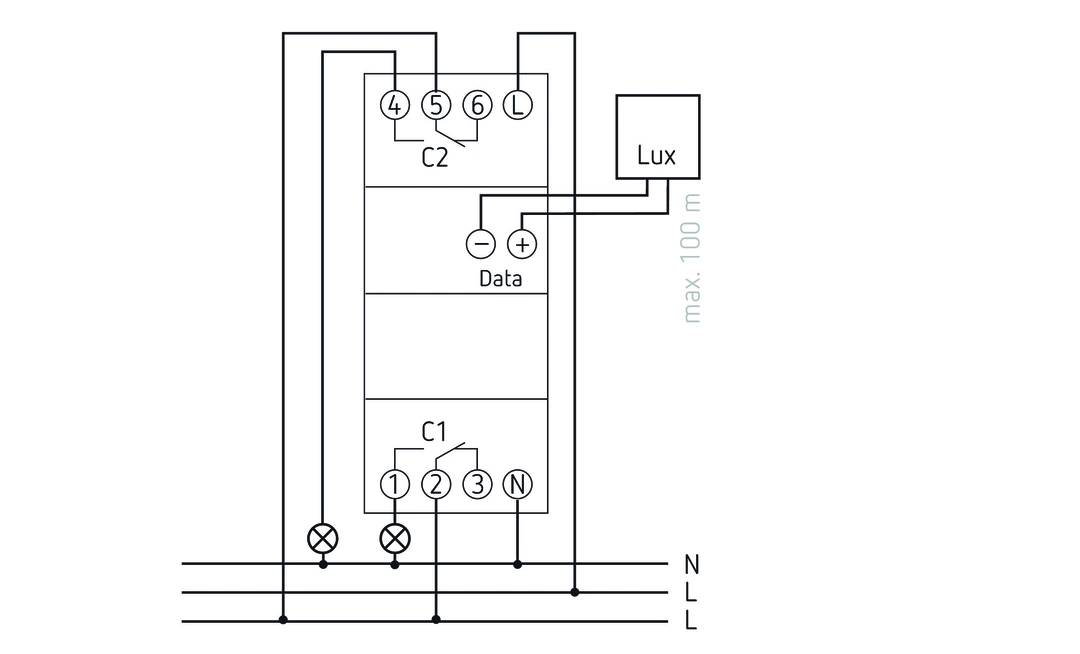

'Circuit diagram of a light measurement unit with wiring. Includes connections for L, N, two light fittings (1 and 2), and a lux sensor.'

1/2

Theben

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Twilight switch

UKCA: not relevant

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3357924 Theben 1120230 Twilight switch

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 3357924 Theben 1120230 Twilight switch

User & Safety Instructions 3357924 Theben 1120230 Twilight switch

Description

Digital twilight switch/light control device, 2 channels, separate built-in light sensor (IP 66) included in delivery, 1-99,000 lx, width 2 TE, APP programming possible, secure transmission via optional Bluetooth low energy OBELISK top3, maximum tamper protection, programs can only be transferred from the APP into the clock, when the Bluetooth OBELISK top3 is in the watch, 600 Watt LED power, 800 Ampere/200 microseconds switch-on current, low standby power, operating hours counter, Duofx plug-in terminals, power reserve, OBELISK interface for PC programming
