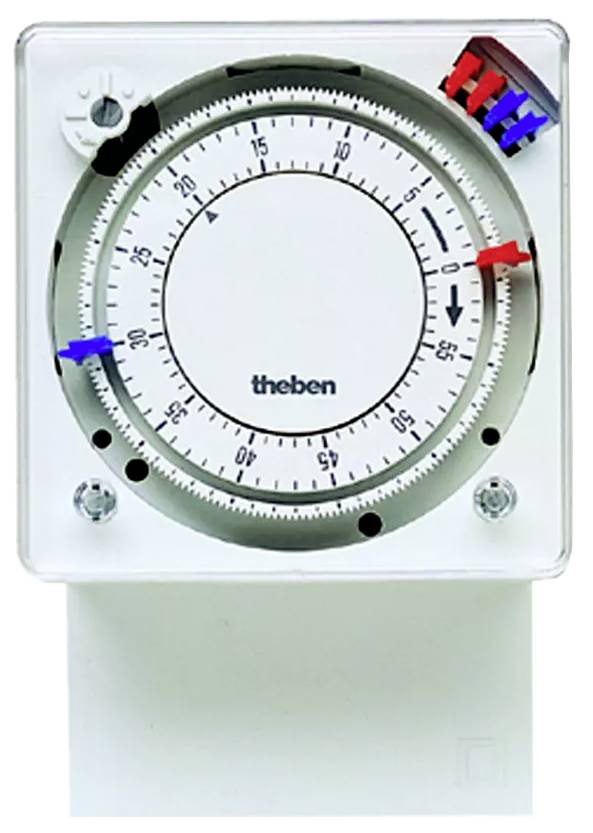

A mechanical time switch timer. Markings in hours and minutes with red and blue switches for setting switching times.

A mechanical time switch timer. Markings in hours and minutes with red and blue switches for setting switching times.

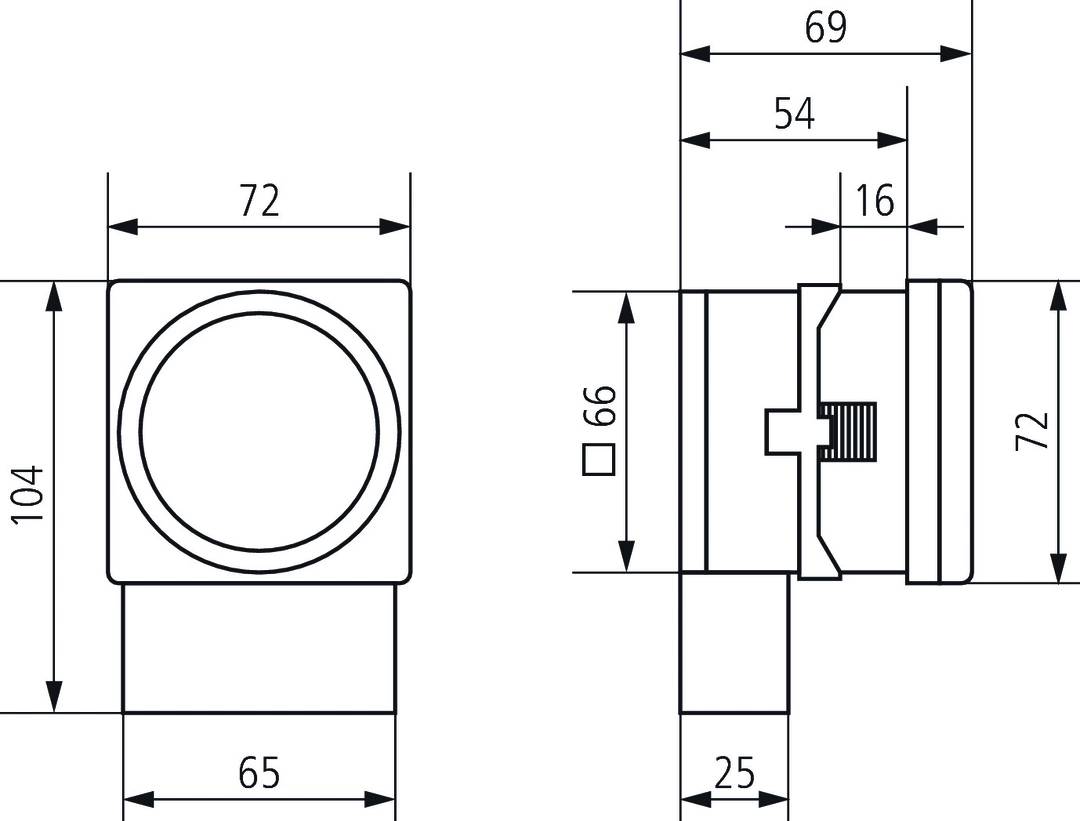

Technical Drawing: Cross-section of a mechanical component with dimensions in millimetres, including width 72 mm, height 66 mm.

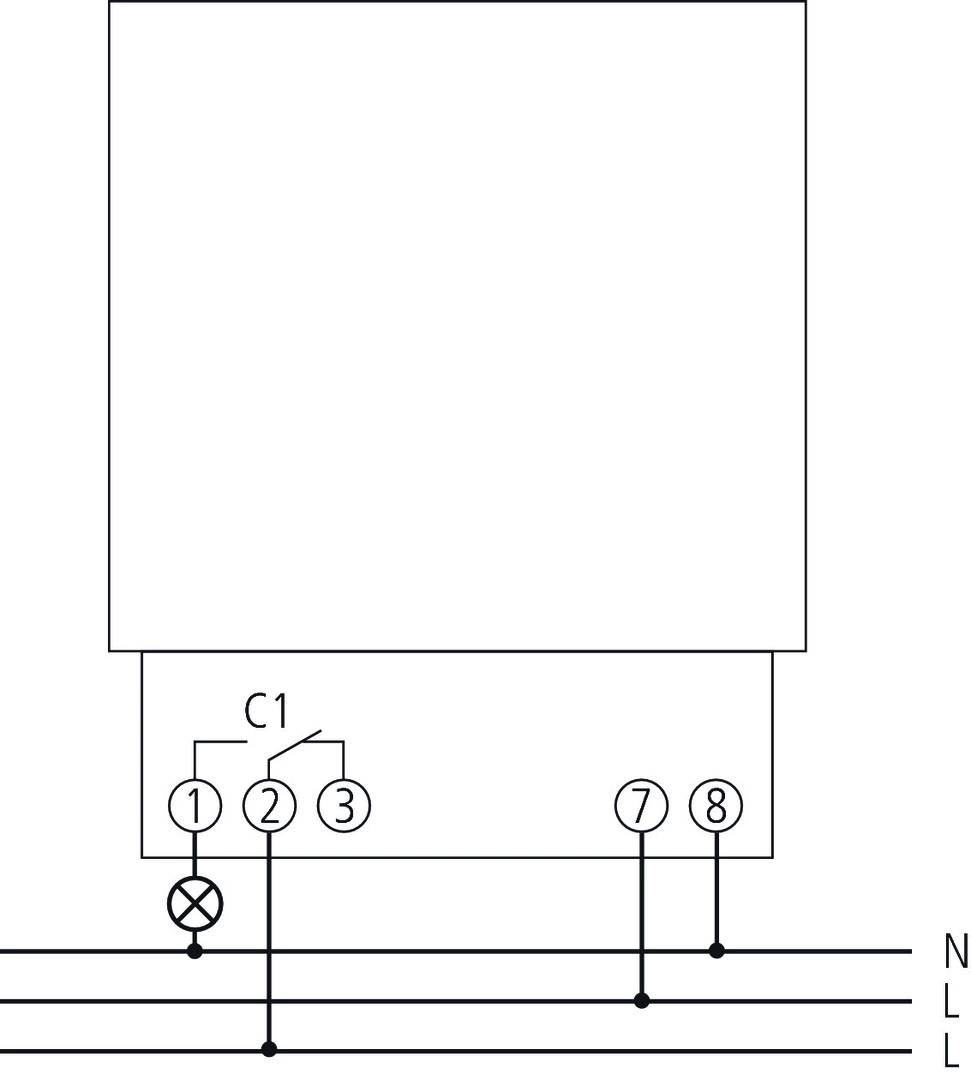

Circuit diagram of an electrical system with eight terminals, including C1, L and N. Shows the connection and component positioning.

1/3

Theben

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: DIN rail mount timer

Type: analogue

Switching cycle: 24h mode

Used at: Indoors

: IP20

Switching current (max.): 10 A

Factory colour: White

Width: 72 mm

Height: 104 mm

Depth: 69 mm

Dim: (W x H x D) 72 x 104 x 69 mm

: Panel mounting 72x72 mm

: 72

: 104 mm

: 69 mm

: Change-over contact

: AC

: IP20

UKCA: not relevant
