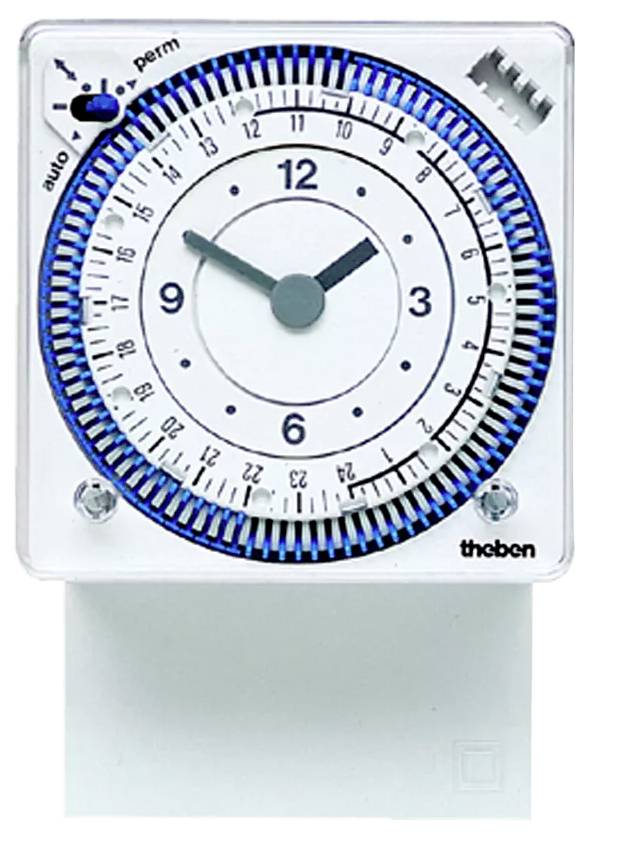

Theben 1891801 DIN rail mount timer analogue 24h mode IP20 Power reserve
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DIN rail mount timer
- Type
analogue
- Features
Power reserve
- Switching cycle
24h mode
- Used at
Indoors
IP20
- Operating voltage
110 V
- Switching current (max.)
10 A
- Factory colour
White
- Shortest switching time
15 min
- Width
72 mm
- Height
104 mm
- Depth
54 mm

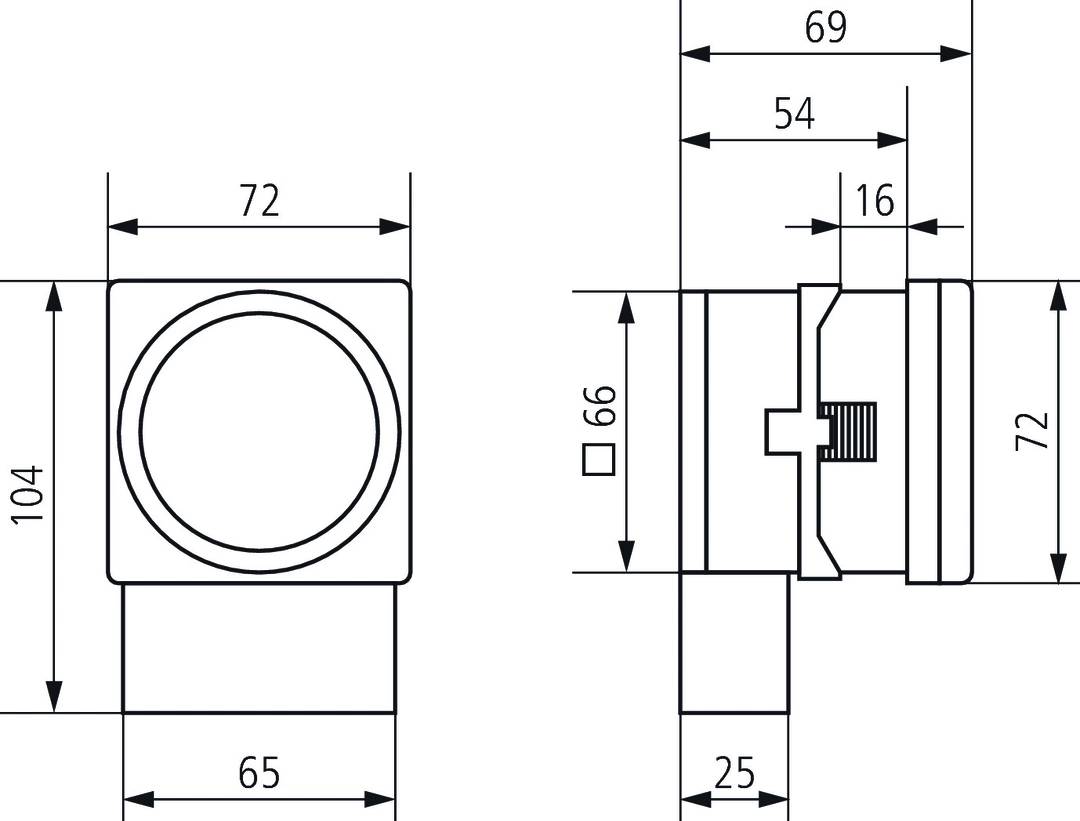

- Dim
(W x H x D) 72 x 104 x 54 mm
Panel mounting 72x72 mm
72
104 mm
54 mm

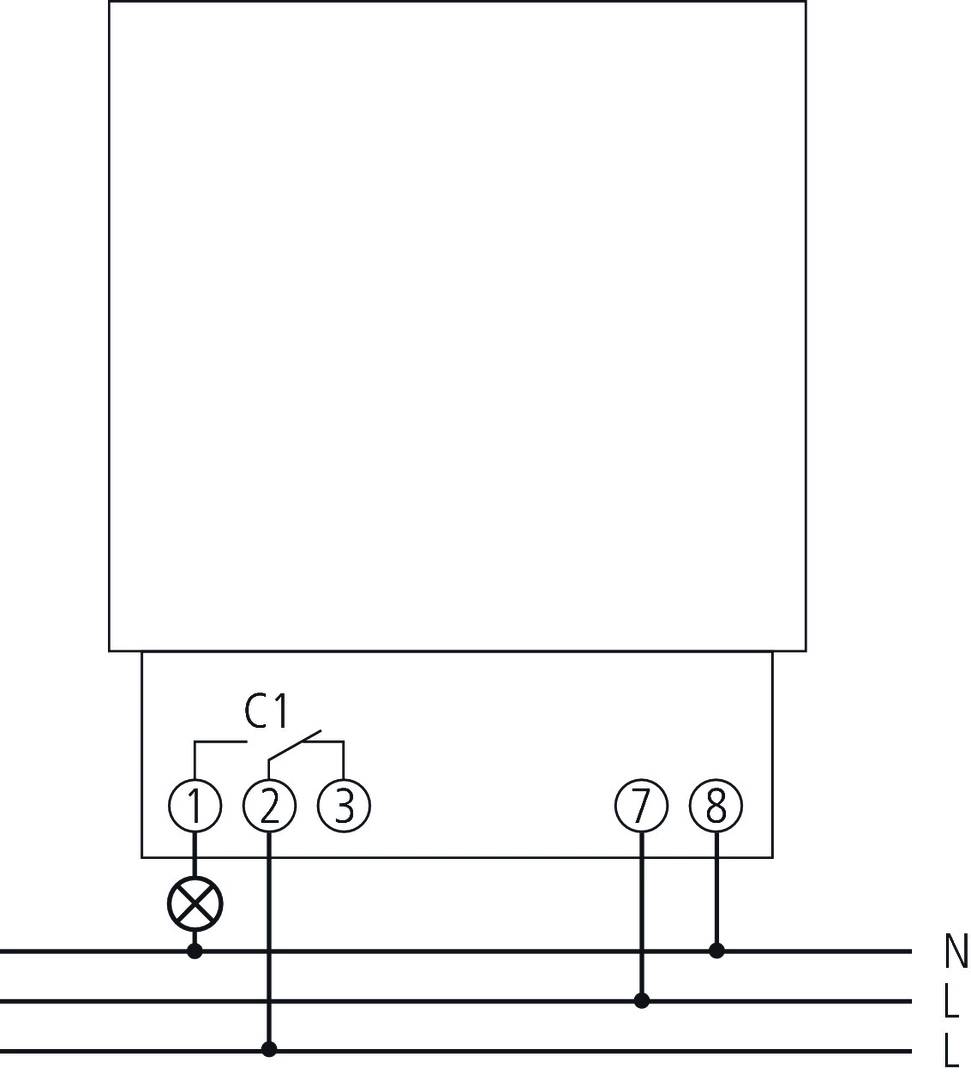

Change-over contact
AC
IP20
- UKCA
yes
