Theben 2010300 Flush mount Occupancy sensor 360 ° Relay White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

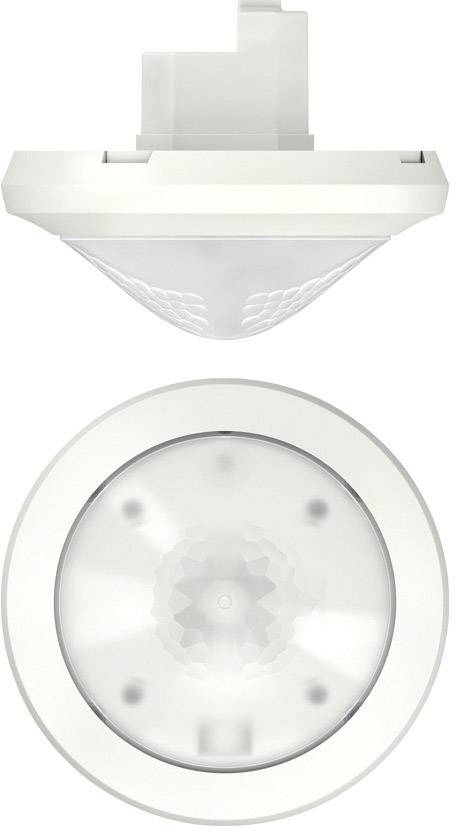

PIR presence detector thePassa P 360-101 UP WH
- Rectangular detection area for corridors and storage operations
- Switch-on delay and delay time can be set
- Adjustable sensitivity
- Master/slave function
- This text is machine translated.
Technical specifications
- Product type
Occupancy sensor
- Detection angle
360°
15 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
200 W
- Standby current consumption
0.1 W
- Twilight settings
30 - 3000 lx
- Time settings
10 s - 60 min
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C
- Height
83 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 83 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2111749 Theben 2010300 Flush mount Occupancy sensor 360 ° Relay White IP54
User & Safety Instructions
User & Safety Instructions 2111749 Theben 2010300 Flush mount Occupancy sensor 360 ° Relay White IP54
