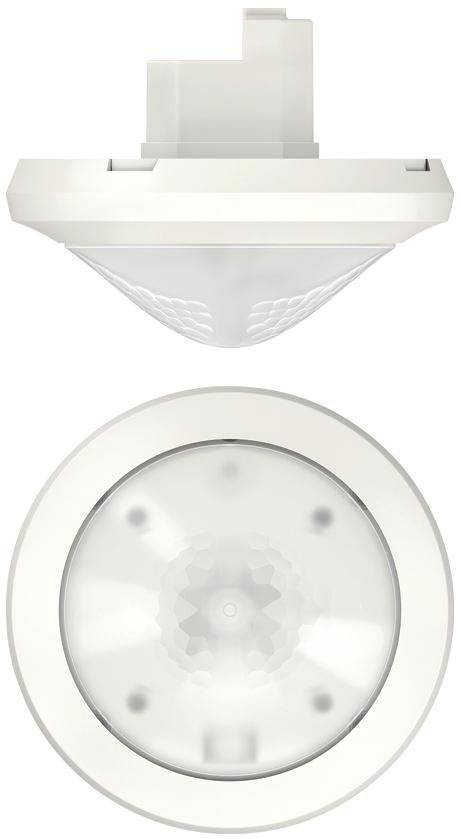

Theben 2010330 Ceiling Occupancy sensor 360 ° White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Max. Cable cross section max. 2 x 2.5 mm²
- Stand-by output 0.1 W
- Product type
Occupancy sensor
- Detection angle
360°
5 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2152734 Theben 2010330 Ceiling Occupancy sensor 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 2152734 Theben 2010330 Ceiling Occupancy sensor 360 ° White IP54
Description
Slave-UP presence detector for ceiling mounting, for the magnification of the detection area of a master device, the detection range 30 x 4.5 m can be switched to 15 x 4.5 m (for outgoing people) at 3 m installation height, mounting height up to 6 m, remote control, adjustable sensitivity, Operating voltage 110-230 V AC 50/60 Hz, power consumption 0.1 W, protection class IP 54, housing white
