Theben 2080025 Ceiling Occupancy sensor 360 ° White IP40
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Stand-by output 0.15 W
- Max. Cable cross section max. 2 x 2.5 mm²
- Mains frequency: 50/60 Hz.
- Product type
Occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Switching capacity (light bulbs)
2300 W
- Switching capacity (LED)
200 W
- Twilight settings
30 - 3000 lx
- Factory colour
White
IP40
- Operating temperature
-15 °C - +50 °C
- Length
110 mm
- Width
110 mm
- Height
83 mm
- (Ø)
110 mm
- Dim

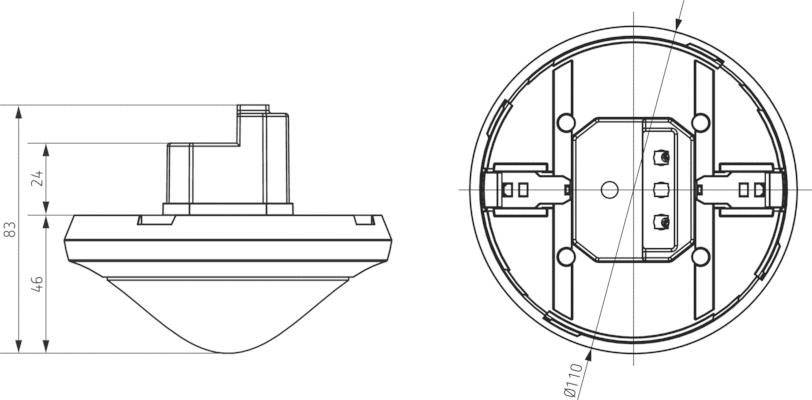

(Ø x H) 110 mm x 83 mm
- Weight
0.23
Flush mounted (plaster)
White
110
Presence detector
FALSE
83 mm
110 mm
Screwed terminal
Untreated
AC
37 mm
50-60 MHz
110 mm
FALSE
48 mm
48 mm
Thermoplastic
10 A
Plastic
9010
IK04
110-230 V
IP40
FALSE
Matt
FALSE
46
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2155452 Theben 2080025 Ceiling Occupancy sensor 360 ° White IP40
User & Safety Instructions
User & Safety Instructions 2155452 Theben 2080025 Ceiling Occupancy sensor 360 ° White IP40
Description
Presence detector for ceiling mounting, detection area round, automatic presence and brightness-dependent control for lighting and HVAC, operating as a fully or semi-automatic switchable, parallel circuit Master Master and master-slave possible, teach-in function, mixing light measurement, channel A light: Switch-off delay adjustable, staircase lighting function, possibility to connect button or switch for manual switching, with automatic detection button/switch, channel H presence: potential-free, adjustable sensitivity, master/Master or master/slave switching is possible, remote can be parameterized
