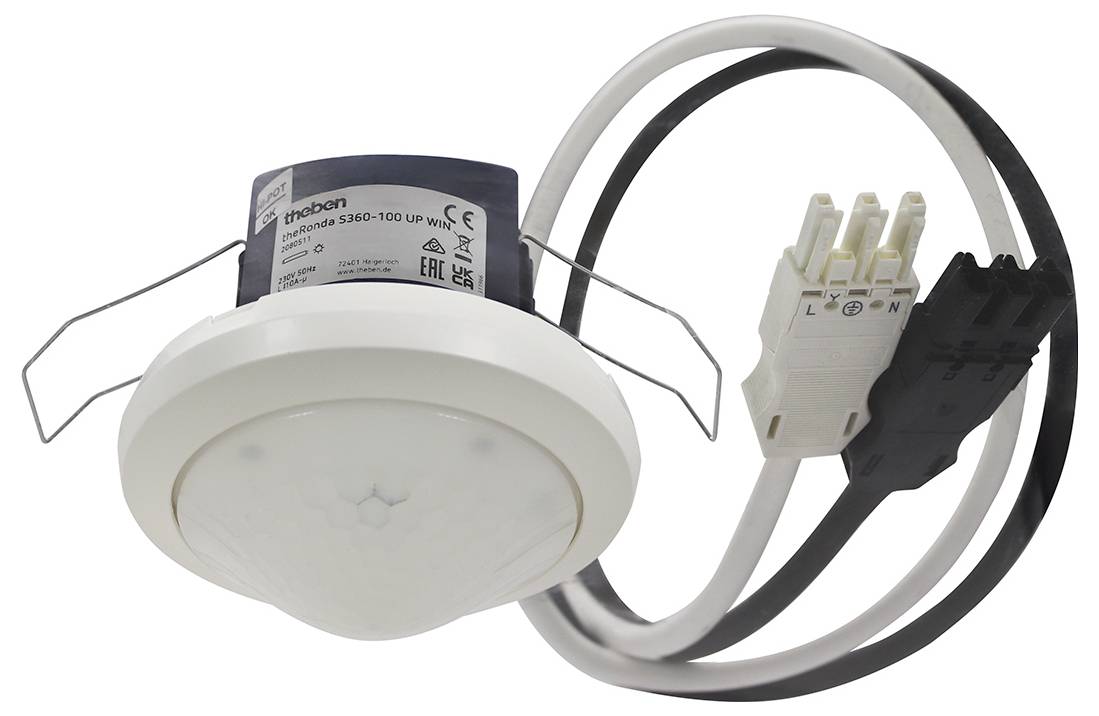

Theben 2080511 Flush mount Occupancy sensor 360 °
EAN:
Part number:
Item no:
Technical specifications
- Height: 83 mm
- Width 110 mm
- Depth: 110 mm
- Mounting depth: 37 mm
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP54
- Mounting width 48 mm
- Surface protection: Untreated
- Impact strength: IK04
- Transparent: No.
- Design of surface: Matt
- Nominal voltage 110..230 V
- Connection type: Spade connector
- Halogen-free: No.
- Diameter 110 mm
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Max. Switching capacity LED 600 W
- Max. switching capacity 2300 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 46 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 48 mm
- With connection cable: Yes
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 3 m.
- Max. Range to one side: 4 m.
- Max. Range: Front 4 m
- Capturing field Diameter on floor: 8 m.
- Horizontal coverage angle: 0..360°
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 60 min
- Constant light control: No.
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: No.
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced switching: No.
- Forced shutdown: No.
- Rear field monitoring: No.
- Scan angle 360°
- Bridge switch: No.
- Max. Presence area: 13 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 3600 s.
- Response brightness 5 - .3000 Lux
- Temperature: -15..50°C
- Max. Power surge 800 A
- Min Power surge 0.1 A
- Alarm function: No.
- With acoustic sensor: No.
- Length of connection cable 900 mm
- Switch-on delay 600 s.
- Product type
Occupancy sensor
- Detection angle
360°
8 m
- Mounting type
Flush mount
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Switching capacity (LED)
600 W
- Similar RAL
9010
- Width
110 mm
- Height
83 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 83 mm
- Voltage (min.)
110 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550948 Theben 2080511 Flush mount Occupancy sensor 360 °
Description
Presence detector (PIR), with cable and WAGO WINSTA connectors, detection range 8 m, 1 x light, cable length 0, 9 m, Circular detection area, automatic brightness-dependent control for lighting, mixed light measurement, switch-off delay adjustable, adjustable sensitivity, preset values (remote configurable)
