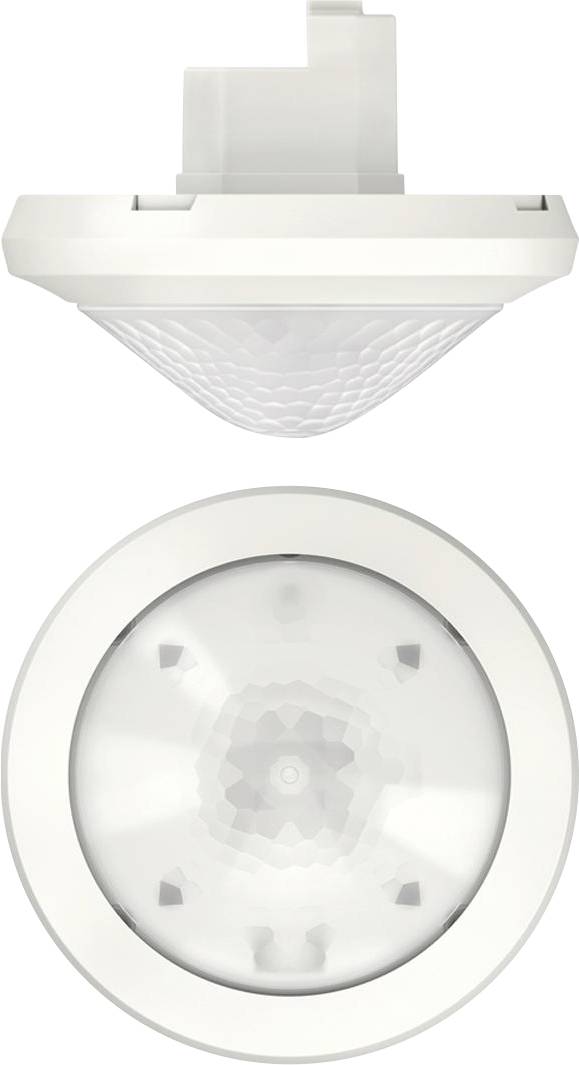

Theben 2080520 Ceiling Occupancy sensor 360 ° White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Max. Cable cross section max. 2 x 2.5 mm²
- Product type
Occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Switching capacity (light bulbs)
2300 W
- Switching capacity (LED)
200 W
- Twilight settings
30 - 3000 lx
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C
- Length
110 mm
- Width
110 mm
- Height
83 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 83 mm
- Weight
0.2210
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2154940 Theben 2080520 Ceiling Occupancy sensor 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 2154940 Theben 2080520 Ceiling Occupancy sensor 360 ° White IP54
Description
UP-presence detector for ceiling mounting, 10 A 230 V, detection range 4 m (for seated persons), 8 m (for outgoing people) at 3 m installation height, mounting height up to 4 m, switching output light: 2300 W, Delay Time: 10 s - 60 min, 1-button / switch input, operating as a fully or semi-automatic reversible, teach-in function, remote control, light measurement 10-3000 Lux, sensitivity can be adjusted, Operating voltage 110-230 V AC 50/60 Hz, power consumption 0.1 W, protection class IP 54, housing white
