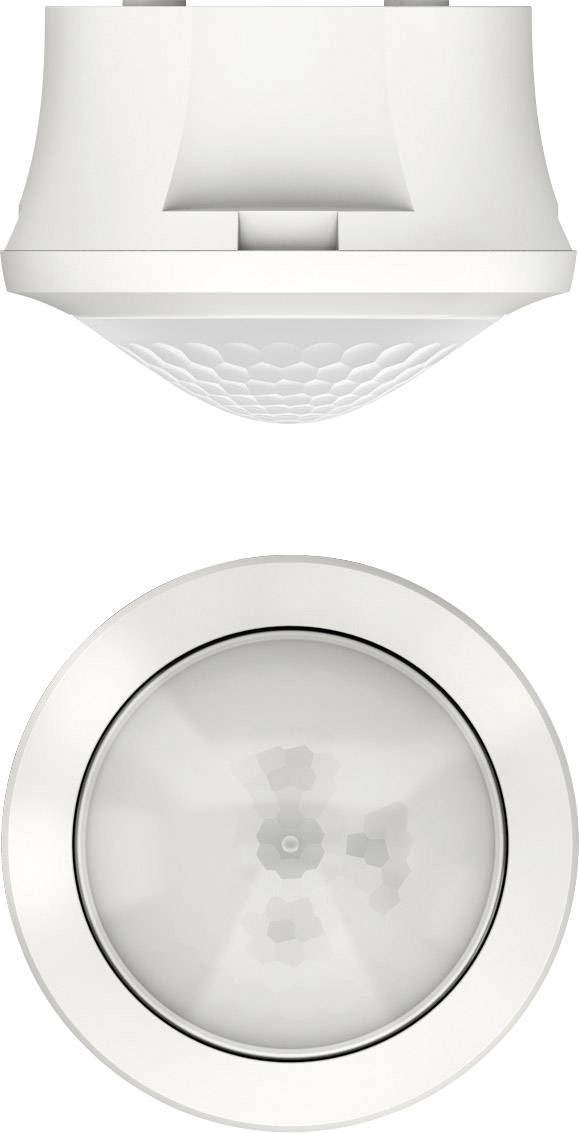

Theben 2080550 Surface-mount Occupancy sensor 360 ° White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: thermoplastic
- Material: plastic
- Frequency: 50 Hz
- Max. Cable cross section max. 2 x 2.5 mm²
- Product type
Occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Switching capacity (light bulbs)
2300 W
- Switching capacity (LED)
80 W
- Twilight settings
30 - 3000 lx
- Factory colour
White
IP54
- Operating temperature
-15 °C - +50 °C
- Length
97 mm
- Width
97 mm
- Height
71 mm
- (Ø)
97 mm
- Dim
(Ø x H) 97 mm x 71 mm
Surface mounted (plaster)
White
97
Presence detector
FALSE
71 mm
97 mm
Screwed terminal
Untreated
AC
50-60 MHz
97 mm
FALSE
Thermoplastic
10 A
Plastic
9010
IK04
230-230 V
IP54
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2155451 Theben 2080550 Surface-mount Occupancy sensor 360 ° White IP54
User & Safety Instructions
User & Safety Instructions 2155451 Theben 2080550 Surface-mount Occupancy sensor 360 ° White IP54
Description
Presence detector for ceiling mounting, detection area round, automatic brightness-dependent control for lighting, mixed light measurement, switch-off delay adjustable, sensitivity can be adjusted, values pre-set (remote parameterized)
