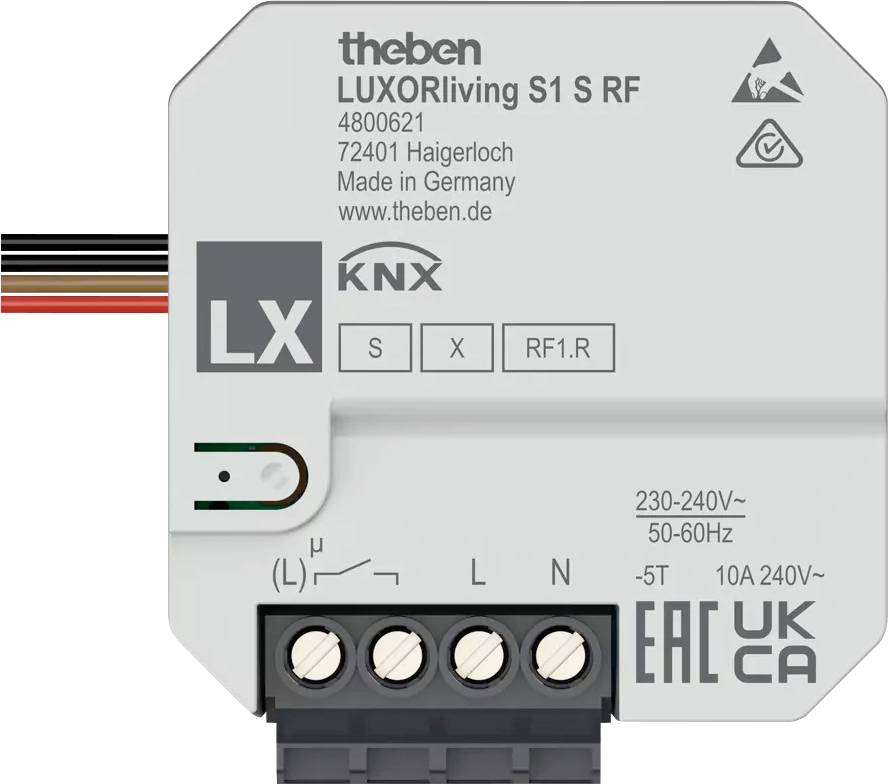

Theben 4800621 Wireless switching actuator LUXORliving S1 S RF
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless switching actuator
- Max. switching capacity
1800 W
- Operating voltage
230 V
0.3 W
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
868.3 MHz
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
0
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3358043 Theben 4800621 Wireless switching actuator LUXORliving S1 S RF
User & Safety Instructions
User & Safety Instructions 3358043 Theben 4800621 Wireless switching actuator LUXORliving S1 S RF
User & Safety Instructions 3358043 Theben 4800621 Wireless switching actuator LUXORliving S1 S RF
User & Safety Instructions 3358043 Theben 4800621 Wireless switching actuator LUXORliving S1 S RF
Description
LUXORLIVING 1-way radio switch actuator UP, secure communication via KNX-RF with support of KNX Data Secure, adjustable properties: NC/NO, switching, delay, pulse function, 2 binary inputs for potential-free contacts such as buttons, switches, temperature sensor (I2), The binary inputs are assigned to the switching output at the factory (function test before programming), integrated temperature monitoring for increased operational safety e.g. in case of overload
