Theben 5340001 Universal dimmer Suitable for light bulbs: Energy saving bulb White
EAN:
Part number:
Item no:
Datasheet (PDF)

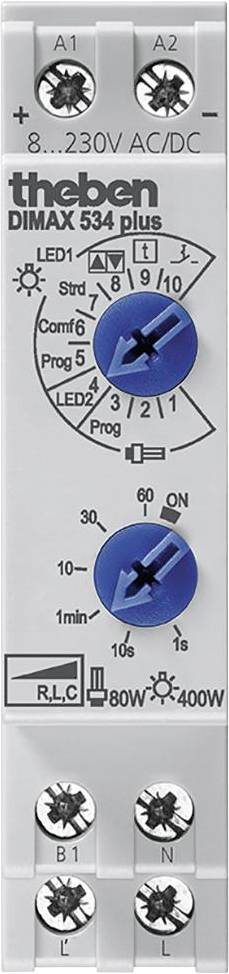

Theben DIMAX 534 plus universal dimmer
Technical specifications
- Halogen-free: Yes
- Material: plastic
- Material: thermoplastic
- Control voltage: 8 V-230V
- Number of modules: 1
- Installation type: REG
- Frequency: 50 Hz
- Product type
Universal dimmer
- Operating voltage
230 V
- Suitable for light bulbs
Energy saving bulb
- Factory colour
White
- Type
Screw terminal
- Dim
(L x W x H) 66 x 18 x 86 mm
- Length
66 mm
- Width
18 mm
- Height
86 mm
DRA (DIN-rail adapter)
Touch control button
White
TRUE
1
Screwed terminal
Untreated
0.2 W
50-50 MHz
Thermoplastic
Plastic
IK04
230-230 V
FALSE
Matt
IP20
18 mm
86 mm
66 mm
1
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158324 Theben 5340001 Universal dimmer Suitable for light bulbs: Energy saving bulb White
User & Safety Instructions
User & Safety Instructions 2158324 Theben 5340001 Universal dimmer Suitable for light bulbs: Energy saving bulb White
Description
Number of built-in universal dimmer for R, L and C-loads with automatic load detection, adjustable switch-on and minimum brightness for ESL, which can be activated, snooze function for the children's room, adjustable dimming speed 1 p.. 60 min, in addition up to 3 light scenes can be retrieved via separate input, e.g. 2 buttons series switch with diode modules, function staircase lighting with Abdimmfunktion, automatic electronic overload protection and over temperature cut-off, input electrically isolated for intercom systems AC/DC 8...230 V
