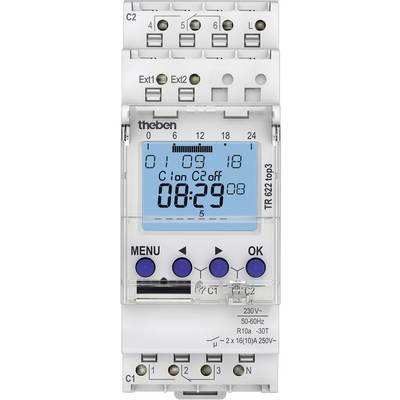

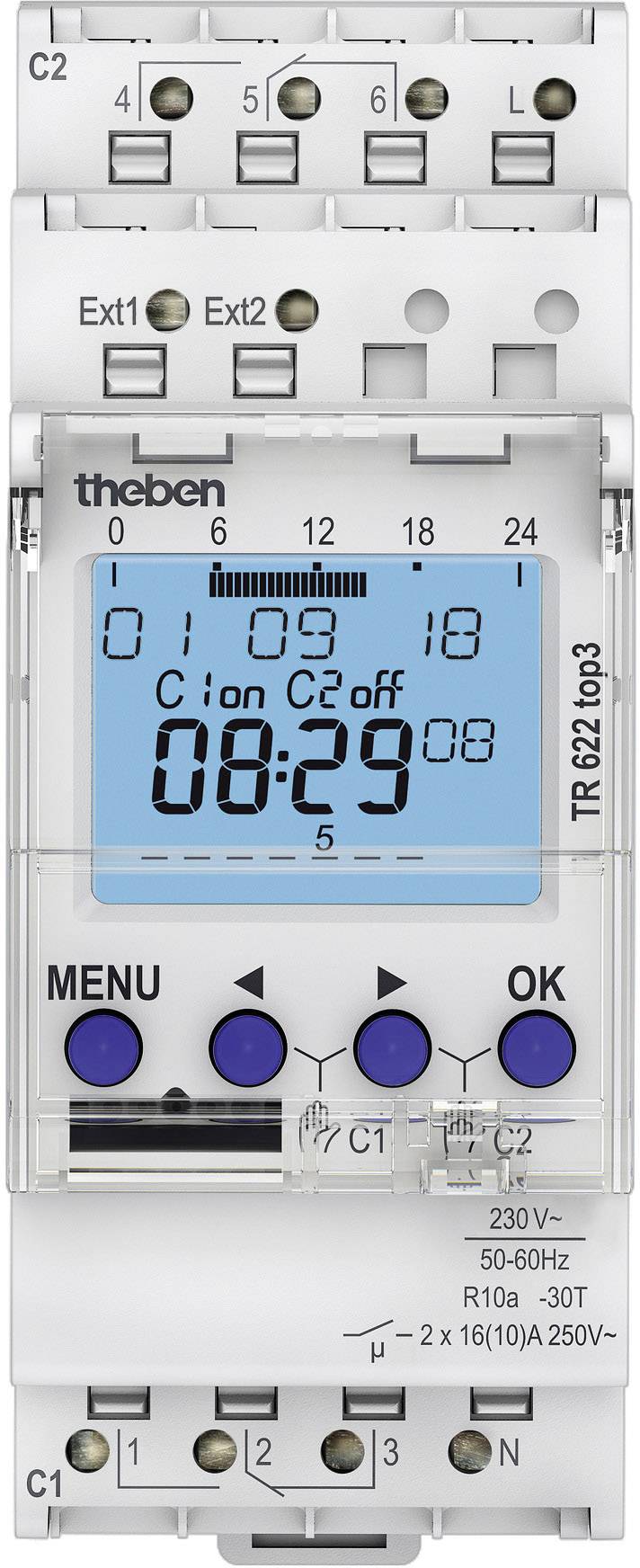

Theben 6220130 Timer digital 7 day mode 2600 W IP20 Count-down mode, Power reserve, External input, Impulse change-over,
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Digital timer TR 622 top 3
- 84 memory locations
- 10 years power reserve (lithium battery)
- Integrated operating hours counter
- This text is machine translated.
Technical specifications
- Product type
Timer
- Type
digital
- Features
Count-down mode
Power reserve
External input
Impulse change-over
Daylight savings control (automatic)
Hour counter
RND mode
Holiday program mode
- Switching cycle
7 day mode
- Used at
Indoors
IP20
- Max. switching capacity
2600 W
- Operating voltage
230 V AC
- Switching current (max.)
10 A
- Factory colour
Multicolour
- Shortest switching time
1 s
- Summer/winter time
automatic
- Width
35.8 mm
- Height
90.1 mm
- Depth
69.2 mm
- Dim
(W x H x D) 35.8 x 90.1 x 69.2 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2111748 Theben 6220130 Timer digital 7 day mode 2600 W IP20 Count-down mode, Power reserve, External input, Impulse change-over,
User & Safety Instructions
User & Safety Instructions 2111748 Theben 6220130 Timer digital 7 day mode 2600 W IP20 Count-down mode, Power reserve, External input, Impulse change-over,
