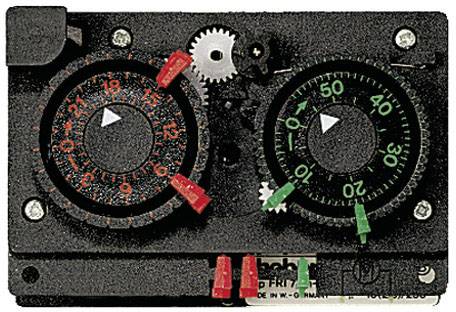

Theben FRI 77 g-2 DIN rail mount timer
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Nominal Switching power at 250 V AC: 16 A
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: DIN rail
- Product type
DIN rail mount timer
- Channels
2-channel
- Type
FRI 77 g-2
- Manufacturer part #
0770832
- Dim
(L x W x H) 48 x 82 x 55 mm
- Width
82 mm
- Height
55 mm
- Length
48 mm
DIN rail
82
55 mm
48 mm
Change-over contact
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158166 Theben FRI 77 g-2 DIN rail mount timer
User & Safety Instructions
User & Safety Instructions 2158166 Theben FRI 77 g-2 DIN rail mount timer
Description
Short-term and abtau-zeitschaltuhr without power reserve, drive without housing 65 x 82 x 48 mm, quick-mounting for 35 mm rail, 24-hour program controls at the beginning of the Abtauphase, adjustable duration of defrosting 2-56 min., additional time-delayed fan control
