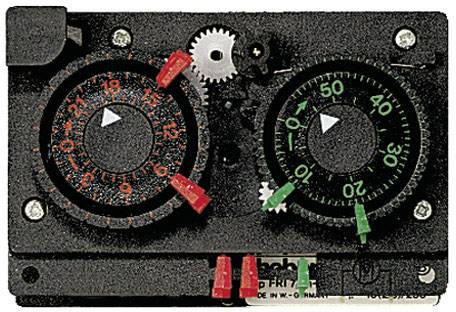

Theben FRI 77 h-2 DIN rail mount timer analogue 250 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Nominal Switching power at 250 V AC: 16 A
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
250 V AC
- Channels
1-channel
- Type
analogue
- Type
FRI 77 h-2
- Manufacturer part #
0770802
- Dim
(L x W x H) 48 x 82 x 55 mm
- Width
82 mm
- Height
55 mm
- Length
48 mm
- Features
Count-down mode
- Switching cycle
24h mode
DIN rail
82
55 mm
48 mm
Change-over contact
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158167 Theben FRI 77 h-2 DIN rail mount timer analogue 250 V AC
User & Safety Instructions
User & Safety Instructions 2158167 Theben FRI 77 h-2 DIN rail mount timer analogue 250 V AC
Description
Short-term and abtau-zeitschaltuhr without power reserve, drive without housing 65 x 82 x 48 mm, quick-mounting for 35 mm rail, 24-hour program controls at the beginning of the Abtauphase, adjustable duration of defrosting 2-56 Min.
