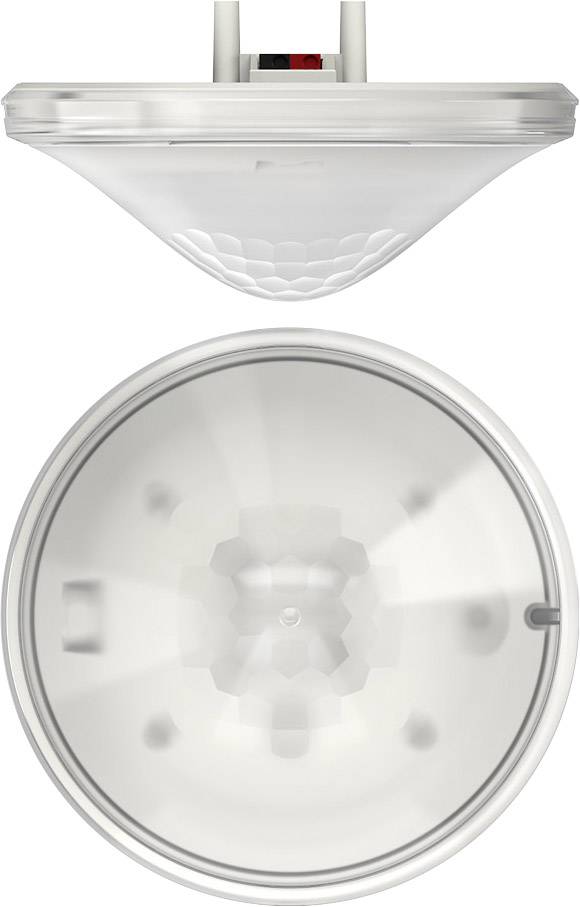

Theben KNX 2079000 Motion detector thePrema P360 KNX UP WH
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Measuring range for brightness: 5 - 3000 lx
- Detection angle: 360°
- Delay time light: 30 s - 60 min
- Light bulbs: compact fluorescent lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs
- Type of light measurement: mixing light measurement
- Delay time presence: 10 s - 120 min
- Switch-on delay presence: 10 s to 30 min/inactive
- Ambient temperature: 0 °C ... 50°C
- Detection area: 81 m² (9.0 x 9.0 m)
- Product type
Motion detector
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
5
- Frequency
868 MHz
- Mounting type
Flush mount
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Features
Test function
Other
White
110
Presence detector
110 mm
58 mm
Untreated
16 mm
110 mm
FALSE
29 mm
29 mm
Thermoplastic
TRUE
FALSE
FALSE
TRUE
Plastic
FALSE
9010
29 mm
FALSE
Matt
FALSE
FALSE
16
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157622 Theben KNX 2079000 Motion detector thePrema P360 KNX UP WH
User & Safety Instructions
User & Safety Instructions 2157622 Theben KNX 2079000 Motion detector thePrema P360 KNX UP WH
User & Safety Instructions 2157622 Theben KNX 2079000 Motion detector thePrema P360 KNX UP WH
Description
KNX presence detector for ceiling mounting, three channels light for control of three-light groups, switch or constant light level control, operating as a fully or semi-automatic switchable, channel brightness with cyclic output, channel for monitoring, reduction of follow-up time light with a short presence, mixed light measurement, extended square detection range, light switch-off delay is self-learning, switching between 2 brightness setpoint values, brightness setpoint values via bus adjustable, standby functionality, 2 channels with switch-on delay, off delay adjustable presence/inactive, parameters can be controlled remotely and readable (SendoPro 868-A), Master/Slave mode can be selected, test functions, scene control with two scenes, 8-bit scenes, integrated bus coupling unit
