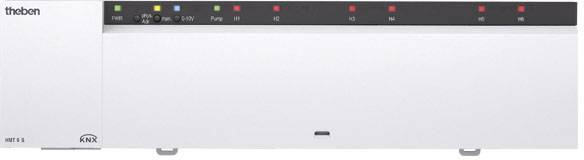

Theben KNX 4900373 Thermal actuator HMT 6 S KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Stand-by output 1 W
- Frequency 50 - 60 Hz
- Number of Channels: 6
- Type of connection: Spring-plug terminals
- Ambient temperature: -5°C ... 50°C
- Product type
Thermal actuator
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
240 V AC
1 W
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
Wall
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.68
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157947 Theben KNX 4900373 Thermal actuator HMT 6 S KNX
User & Safety Instructions
User & Safety Instructions 2157947 Theben KNX 4900373 Thermal actuator HMT 6 S KNX
User & Safety Instructions 2157947 Theben KNX 4900373 Thermal actuator HMT 6 S KNX
Description
Heating actuator for controlling 6 thermal actuators, switching 24 V DC or solid 0-10V DC, integration of up to 2 heating circuit pumps, the inclusion of the boiler control, demand-driven adjustment of the flow temperature: automatic determination of the maximum actuator size for the adjustment of the flow temperature to the actual demand, no KNX room thermostat is necessary: flexible use of each channel as a heating actuator or heating control, installation directly in the heating circuit distributor, screw-less- Clamping Technology, integrated power supply, noise-free semiconductor switch (Triac), continuous or switching manipulated variable can be selected
