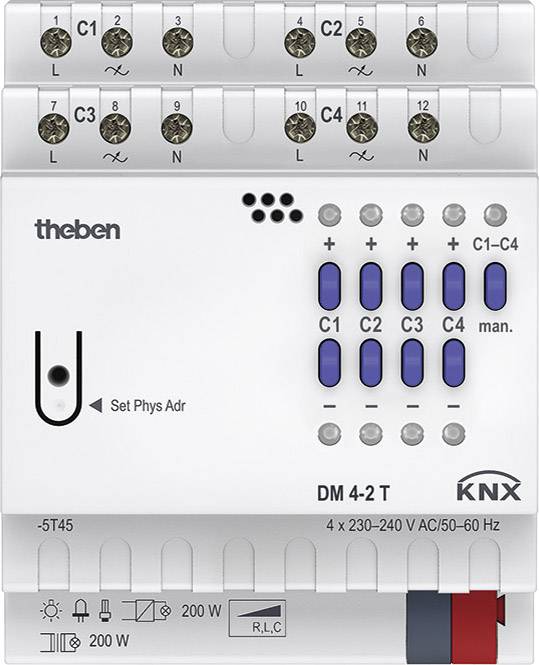

Theben KNX 4940280 Dimmer actuator DM 4-2 T KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Lamp types Incandescent lamps, low voltage and high-voltage halogen lamps, dimmable compact fluorescent lamps and LED
- Incandescent/halogen lamp load: 200 W
- LED-Lamp: phase section (RC-mode): 200 W
- Compact fluorescent lamps: phase section (RC-mode): 200 W
- Switching power min: 2 W
- Max. Cable length: 100 m
- Ambient temperature: -5°C ... 45°C
- Product type
Dimmer actuator
- Series
KNX
- Max. switching capacity
200 W
IP20
- Operating voltage
240 V AC
200 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.25
- Features
Dimmer function
DRA (DIN-rail adapter)
Dimming actuator
50-60 MHz
TRUE
FALSE
FALSE
TRUE
4
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2157679 Theben KNX 4940280 Dimmer actuator DM 4-2 T KNX
User & Safety Instructions
User & Safety Instructions 2157679 Theben KNX 4940280 Dimmer actuator DM 4-2 T KNX
User & Safety Instructions 2157679 Theben KNX 4940280 Dimmer actuator DM 4-2 T KNX
Description
KNX universal dimming actuator 4-way, mounting enclosure, width 4 TE, dimming range 0-100%, maximum load: 4 x 200 W/VA, for dimming the light bulbs, low-voltage and high-voltage halogen lamps, dimmable energy saving lamps, dimmable LED retrofit lamps. Different Dimm curves allow a stepless dimming of all lamp types, also suitable for controlling many fans, automatic load detection (selectable), manual operation 0, 25, 50, 75 and 100% or test
