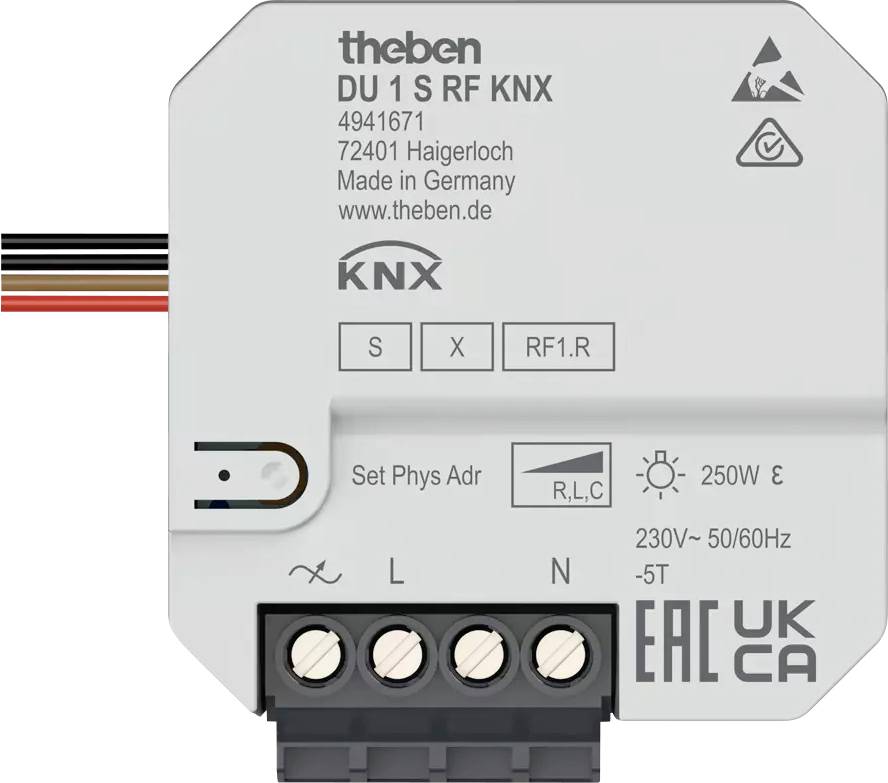

Theben KNX 4941671 Dimmer actuator DU 1 S RF KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Dimmer actuator
- Series
KNX
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
250 W
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Mounting type
Flush mount
- Width
75 cm
- Height
115 cm
- Depth
40 cm
- Dim
(W x H x D) 75 x 115 x 40 cm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3358077 Theben KNX 4941671 Dimmer actuator DU 1 S RF KNX
User & Safety Instructions
User & Safety Instructions 3358077 Theben KNX 4941671 Dimmer actuator DU 1 S RF KNX
User & Safety Instructions 3358077 Theben KNX 4941671 Dimmer actuator DU 1 S RF KNX
User & Safety Instructions 3358077 Theben KNX 4941671 Dimmer actuator DU 1 S RF KNX
Description
KNX 1-way universal radio dimming actuator UP, secure communication via KNX-RF with support of KNX Data Secure, optimized dimming output for dimmable energy saving lamps, LED, incandescent and halogen lamps as well as dimmable transformers, easy adaptation to different lighting sources through automatic load detection, adjustable dimming curve for precise and flicker-free dimming, 2 binary inputs for potential-free contacts such as buttons, switches, Temperature sensor (I2), the binary inputs are assigned to the dimming output ex works (function test before programming), integrated temperature monitoring for increased operational safety e.g. in case of overload
