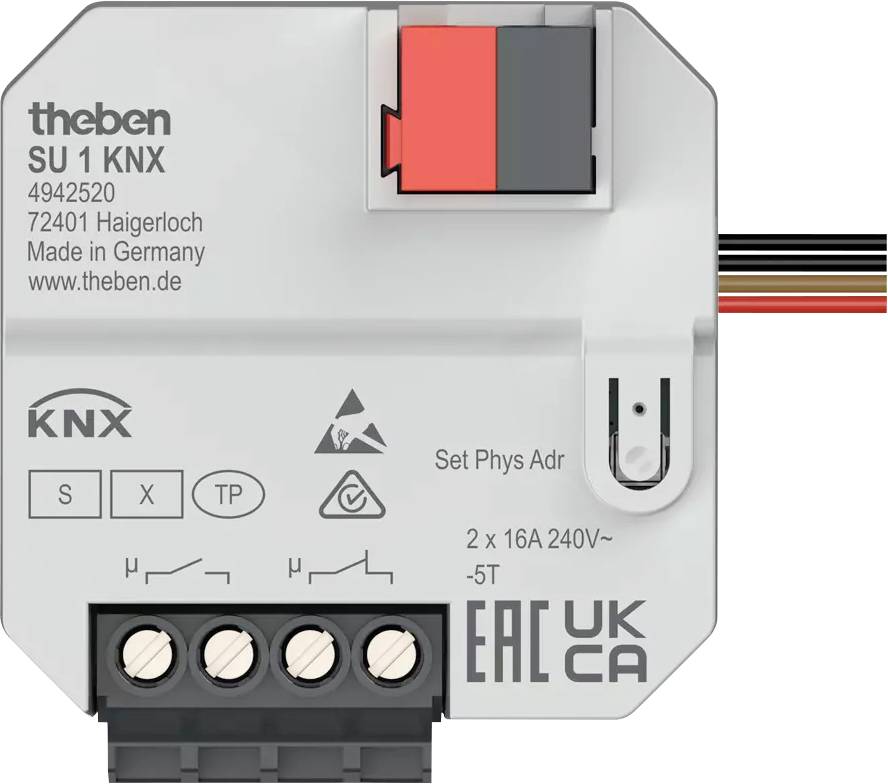

Theben KNX 4942520 Actuator SU 1 KNX
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Actuator
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
1
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
n.rel.
- Weight
0
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3357822 Theben KNX 4942520 Actuator SU 1 KNX
User & Safety Instructions
User & Safety Instructions 3357822 Theben KNX 4942520 Actuator SU 1 KNX
User & Safety Instructions 3357822 Theben KNX 4942520 Actuator SU 1 KNX
Description
KNX 1-way switch actuator UP, 1x NC, 1x NC contact with common control, adjustable features: NC / NO, switching, delay, pulse function, 2 binary inputs for potential-free contacts such as buttons, switches, temperature sensor (I2), The binary inputs are assigned to the switching output at the factory (function test before programming), integrated temperature monitoring for increased operational safety e.g. in case of overload
