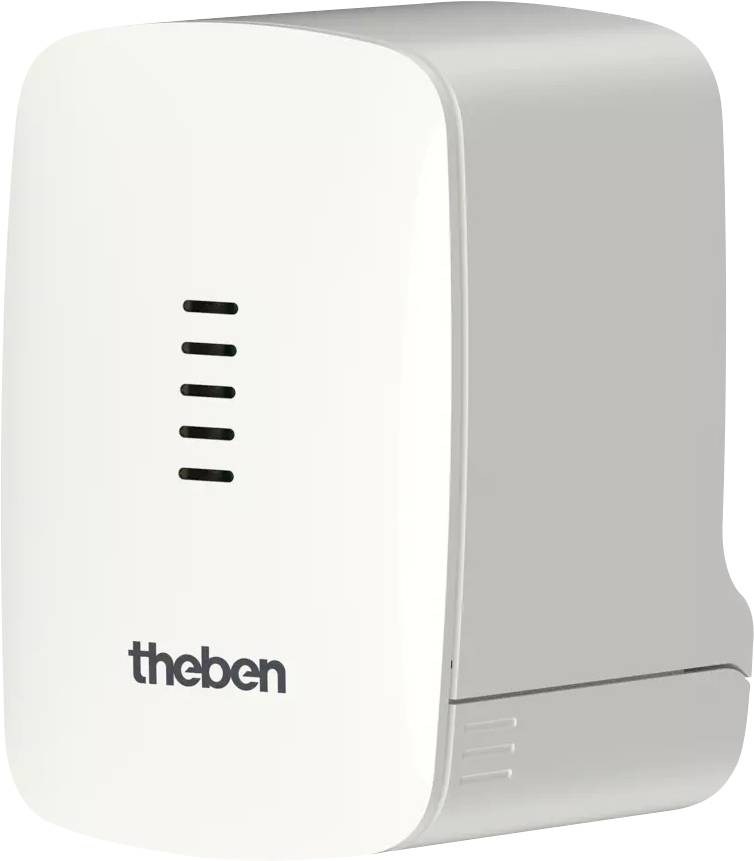

Theben KNX 7319205 Actuator CHEOPS S KNX

Motor-operated KNX actuator for heating and cooling valves, integrated temperature sensor, integrated controller for efficient heating and cooling with one additional stage each, high actuating force with up to 220 N at a maximum valve stroke of 8 mm, 2 universal binary inputs, connection possibilities e.g. for external temperature sensor, window contact, presence detector or pushbutton, Integrated logic for up to 10 window contacts, can be used in the heating circuit distributor, integrated bus coupler, automatic valve adaptation, can be used universally owing to a large range of valve adapters, 2 different valve adapters for the most common valves M30x1.5 and Danfoss included (VA 10, VA 100), safe start-up and communication through support of KNX Data Secure

This text is machine translated.
