Image similar

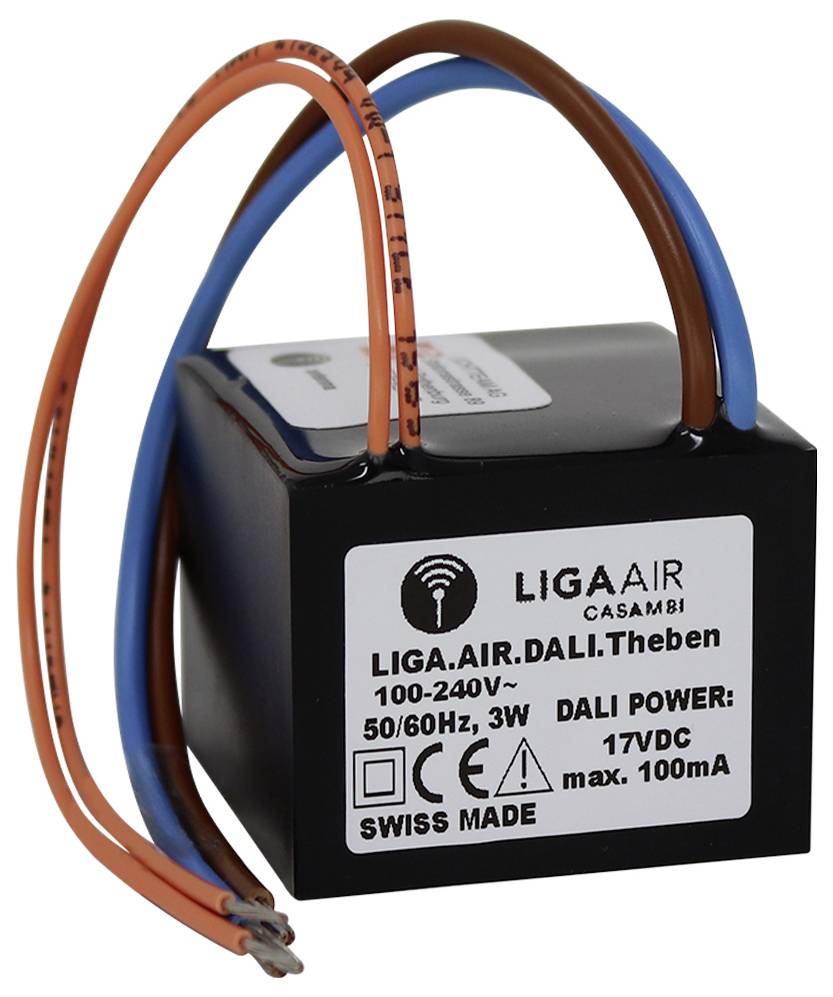

Theben LIGA.AIR.DALI.Theben Integation module 3 W 38 mm 26 mm
EAN:
Part number:
Item no:
Product type
Integation module
Operating voltage
240 V AC
Type
LIGA.AIR.DALI.Theben
Power (max) P(TOT)
3 W
Dim
(W x H) 38 mm x 26 mm
Technical specifications
- Mounting type: Flush-mounted
- Colour, black
- Transparent: No.
- Rated voltage: 240 V
- Mains frequency: 50/60 Hz.
- Power consumption 0.5 W
- Min Depth of the device socket 40 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Operation via Bluetooth: Yes
- Compatible with Casambi: Yes
- RAL number (similar): 9005
- Extension input: Yes
- Device width 38 mm
- Device height 26 mm
- Device depth 38 mm
- Operating mode: Other
- Metallic color: No.
- Can be used with button: No.
- Suitable for use with motion detectors: Yes
- Can be used with presence detectors: Yes
- Can be used with timer/timer: No.
- Can be used with IR key: No.
- Light value storage: Yes
- Can be used with radio button: No.
- Control current 100 mA
- Type
LIGA.AIR.DALI.Theben
- Product type
Integation module
- Power (max) P(TOT)
3 W
- Operating voltage
240 V AC
- Dim
(W x H) 38 mm x 26 mm
- Width
38 mm
- Height
26 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550912 Theben LIGA.AIR.DALI.Theben Integation module 3 W 38 mm 26 mm
Description
Module for the integration of DALI-2 sensors in the CASAMBI system, smallest DALI module for 100-240 Volt AC, up to 50 DALI subscribers, lowest power consumption, max. 3 Watts., Simply put into operation by CASAMBI, control via the free Casambi APP, input voltage range from 100-240 Volt AC, DALI BUS output up to max. 100mA, ABS housing, the compact design of the housing allows easy installation in UP-socket or in a cable channel
