Theben LUNA 112 top3 AL Twilight switch 1 pc(s) 230 V
EAN:
Part number:
Item no:
Product type
Twilight switch
Max. operating voltage
230 V
Type
LUNA 112 top3 AL
Content
1 pc(s)
Operating voltage
230 V
Technical specifications
- Rated frequency: 50/60 Hz
- Max. Light bulb load: 3600 W
- Max. Fluorescent lamp load: 3600 VA
- Width in the division units: 2
- Setting range for brightness value: 1 to 99000 lx
- Product type
Twilight switch
- Type
LUNA 112 top3 AL
- Content
1 pc(s)
- Operating voltage
230 V
- Max. operating voltage
230 V
- Operating voltage
230 V (max)
- Switching current (max.)
10 A
- Mounting type
DIN rail
IP20
- Length
69.2 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2158649 Theben LUNA 112 top3 AL Twilight switch 1 pc(s) 230 V
Description

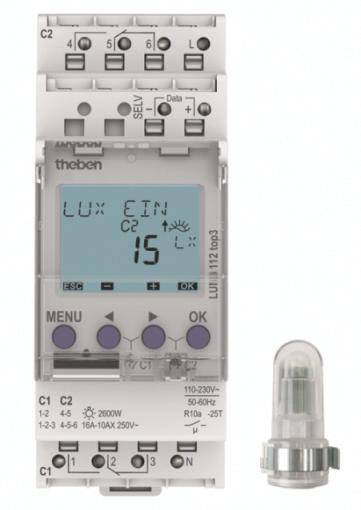

Digital twilight switch/light control device, 2 channels, separate building light sensor (IP55) included in the delivery, 1-99,000 lx, width 2 TE, App-Programmierung possible, secure transmission via optional Bluetooth Low Energy OBELISK top 3, Maximum Security from manipulation, programs can only be transferred from the App in the watch, if the Bluetooth OBELISK top 3 in the watch, 600 Watt LED-power, 800 Ampere/200?s inrush current, low standby power, operating hours counter, DuoFix plug-in terminals, power reserve, OBELISK interface for PC-programming.
