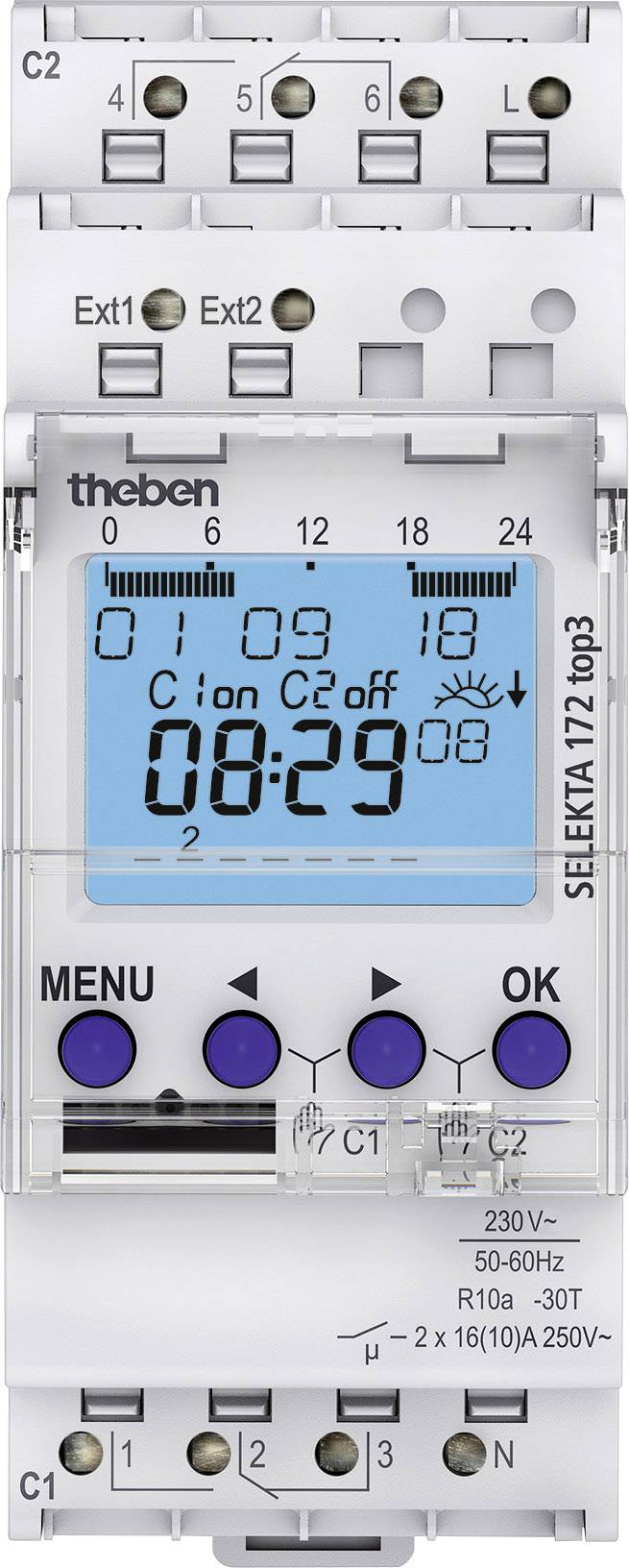

Theben SELEKTA 172 top3 DIN rail mount timer 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Theben SELEKTA 172 top 3 Digital
Technical specifications
- Contact Type: changer
- Protection class: IP20
- Product type
DIN rail mount timer
- Operating voltage
230 V AC
- Channels
2-channel
- Type
SELEKTA 172 top3
- Manufacturer part #
1720130
- Factory colour
Multicolour
- Astro function
Yes
- Min. power reserve
10 years
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158637 Theben SELEKTA 172 top3 DIN rail mount timer 230 V AC
User & Safety Instructions
User & Safety Instructions 2158637 Theben SELEKTA 172 top3 DIN rail mount timer 230 V AC
User & Safety Instructions 2158637 Theben SELEKTA 172 top3 DIN rail mount timer 230 V AC
Description
Astro digital time switch for DIN rail, 2 channels, week program, astronomical switching function, position data via coordinates or countries city list can be programd, astro-pulse, 3 different twilight ranges can be set, 2 external inputs, 3 special programs, channel selection and channel interlock, width 2 TE, App-Programmierung possible, secure transmission via optional Bluetooth Low Energy OBELISK top 3, Maximum Security from manipulation, time switching programs can only be transferred from the App in the watch, if the Bluetooth OBELISK top 3 in the watch is 100% compatible with top 2, 600 Watt LED performance, 800 Ampere / 200s inrush current, 0.4 Watt standby power, DuoFix plug-in terminals, power reserve and programd summer/winter time changeover, OBELISK interface for PC-programming.
