Buy Theben SELEKTA 174 top3 DIN rail mount timer

Electronic time switch with LCD display, showing 'LONDON' and time 08:29. Buttons for menu and confirmation, multiple setting options.

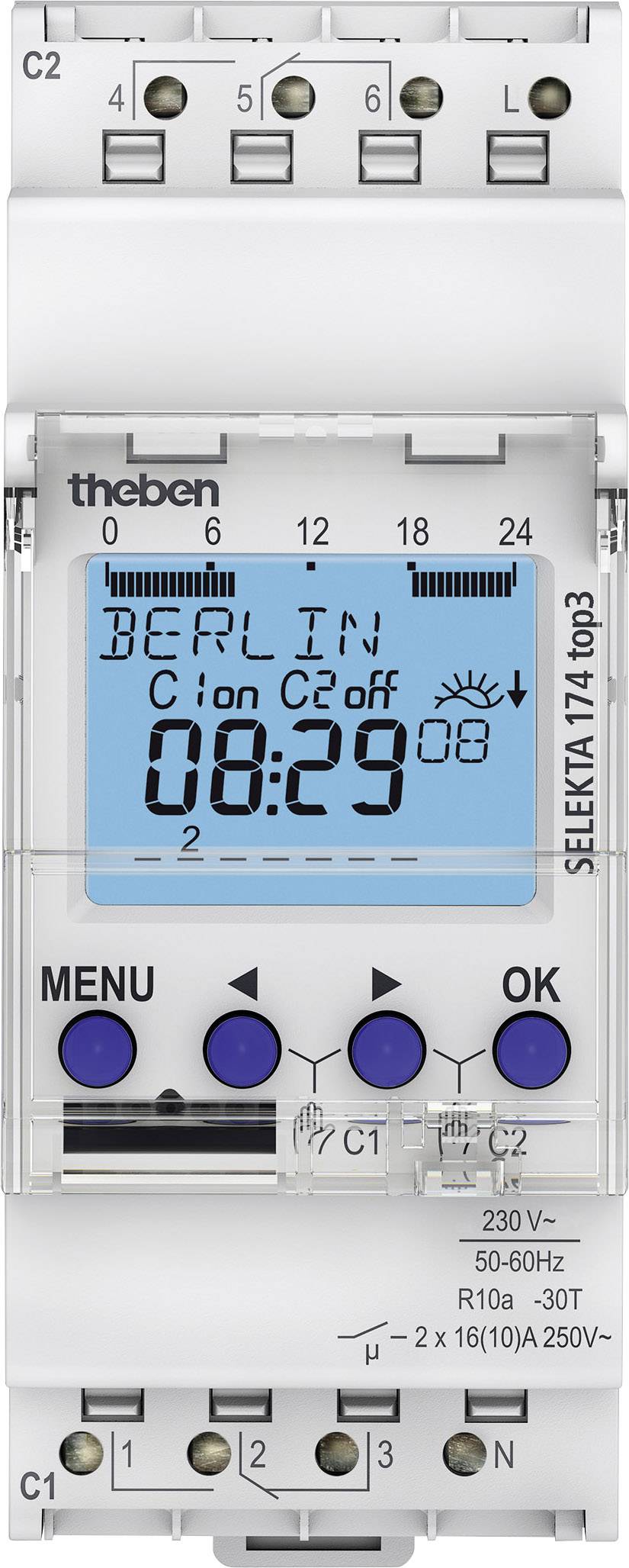

Digital time switch with LCD display, showing current time '08:29:08', day 'Berlin' and two control options 'C2on' and 'C2off'.

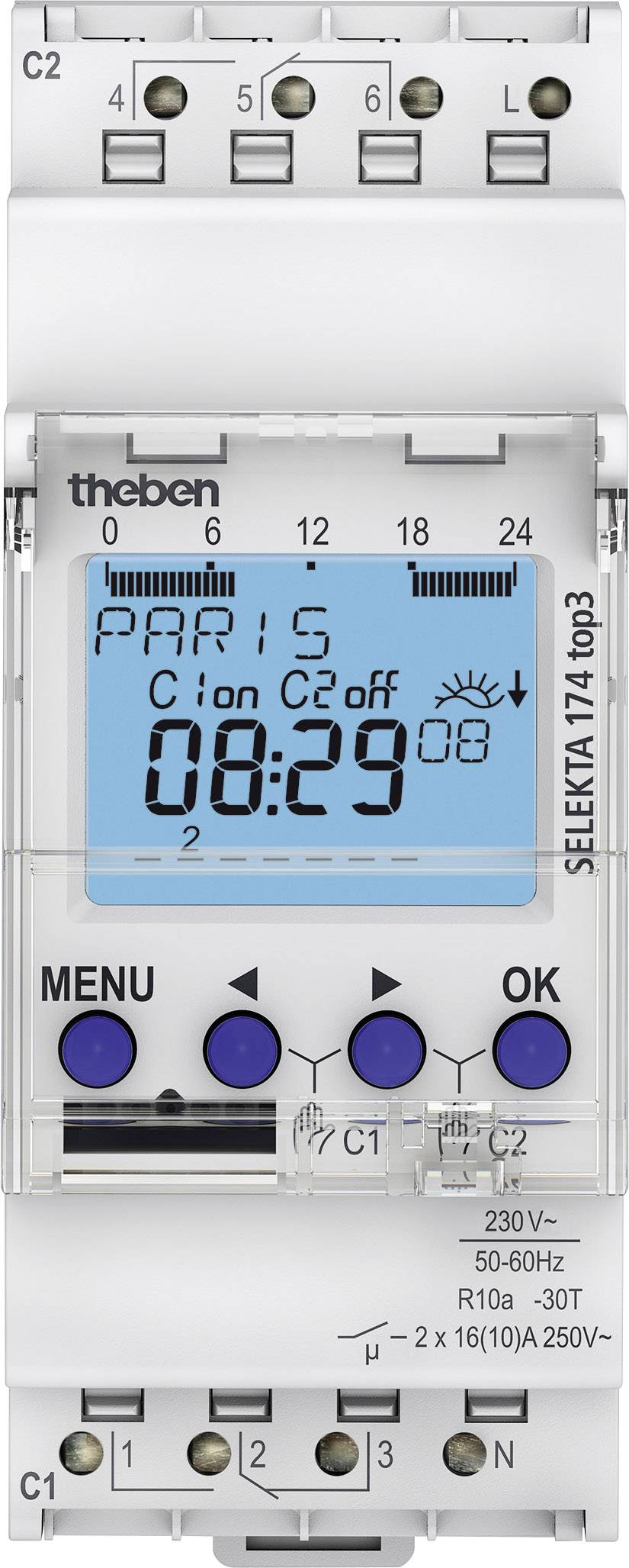

Digital timer with LCD display, showing 'PARIS' and the time '08:29', programmed settings visible; for time control.<br><br>Digital time switch with LCD display, showing 'PARIS' and the time '08:29', set programmes visible; for time regulation.

Digital timer with LCD display. Shows 'MADRID', date and time. Three blue buttons: 'MENU', 'C1', 'C2' and 'OK'.

Digital time switch displays 'ROMA', current date, time 08:29. Buttons and symbols for control.

Digital time switch with blue display showing 'AMSTERDAM' and time '08:29:08'. Buttons: 'MENU', 'OK', 'C1', 'C2' at the bottom.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Automatic summer/winter time changeover: Yes
Width in the division units: 2
Nominal Switching power at 250 V AC: 16 A
Frequency of the power supply: 50 Hz
Type of voltage of the power supply voltage AC
Contact Type: changer
Protection class: IP20
Installation type: DIN rail

Product type: DIN rail mount timer

Channels: 2-channel

Type: SELEKTA 174 top3

Manufacturer part #: 1740130

Factory colour: Multicolour

Height: 128 mm

Length: 60 mm

Mounting type: DIN rail

Weight: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2158592 Theben SELEKTA 174 top3 DIN rail mount timer

User & Safety Instructions

User & Safety Instructions 2158592 Theben SELEKTA 174 top3 DIN rail mount timer

Description

Digital timer clock for DIN rail, 2 channels, Astro and week program, width 2 TE, astronomical switching function, position data via coordinates or countries city list can be programd, App-Programmierung possible, secure transmission via optional Bluetooth Low Energy OBELISK top 3, Maximum Security from manipulation, time switching programs can only be transferred from the App in the watch, if the Bluetooth OBELISK top 3 in the watch is 100% compatible with top 2, 600 Watt LED performance, 800 Ampere / 200s inrush current, 0.4 Watt standby power, DuoFix plug-in terminals, power reserve and programd summer/winter time changeover, OBELISK interface for PC-programming.

This text is machine translated.
