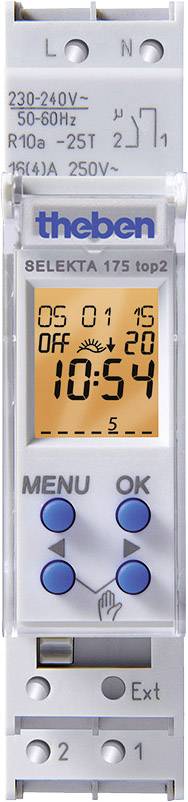

Theben SELEKTA 175 top2 DIN rail mount timer digital 250 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: Yes
- Width in the division units: 1
- Nominal Switching power at 250 V AC: 16 A
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: Normally open contact
- Protection class: IP20
- Installation type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
250 V AC
- Channels
1-channel
- Type
digital
- Type
SELEKTA 175 top2
- Manufacturer part #
1750100
- Dim
(L x W x H) 60 x 17 x 128 mm
- Astro function
Yes
- Data key
Yes
- Width
17 mm
- Height
128 mm
- Length
60 mm
- Features
Daylight savings/sunup/sundown control
- Switching cycle
24h mode
- Weight
0
DIN rail
17
128 mm
60 mm
Normally open contact (NO)
1
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158508 Theben SELEKTA 175 top2 DIN rail mount timer digital 250 V AC
User & Safety Instructions
User & Safety Instructions 2158508 Theben SELEKTA 175 top2 DIN rail mount timer digital 250 V AC
Description
Astro digital time switch for DIN rail, astronomical program switches at sunrise and sunset, database with city names, text-oriented operator guidance on the display, Width 1 unit, power reserve and programd summer/winter time changeover, day and week program, DuoFix plug-in terminals, OBELISK interface for PC-programming, 1 channel
