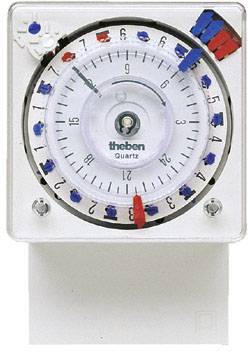

Theben SUL 189 hw Timer analogue
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: front panel installation 72 x 72 mm
- Product type
Timer
- Channels
2-channel
- Type
analogue
- Type
SUL 189 hw
- Manufacturer part #
1890108
- Dim
(L x W x H) 54 x 72 x 104 mm
- Astro function
No
- Data key
No
- Display backlighting
No
- External input
No
- Min. power reserve
3 days
- Impulse
No
- Width
72 mm
- Height
104 mm
- Length
54 mm
- Features
Progammable
- Switching cycle
7 day mode
- Cycle
No
Panel mounting 72x72 mm
72
104 mm
54 mm
Change-over contact
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157999 Theben SUL 189 hw Timer analogue
User & Safety Instructions
User & Safety Instructions 2157999 Theben SUL 189 hw Timer analogue
Description
Timer with plug-in base, front frame 72 x 72 mm, clamping bracket, 3 days power reserve, 24 hours + 7 days programmable, shortest switching time 30 min./12 hours., 2 channels
