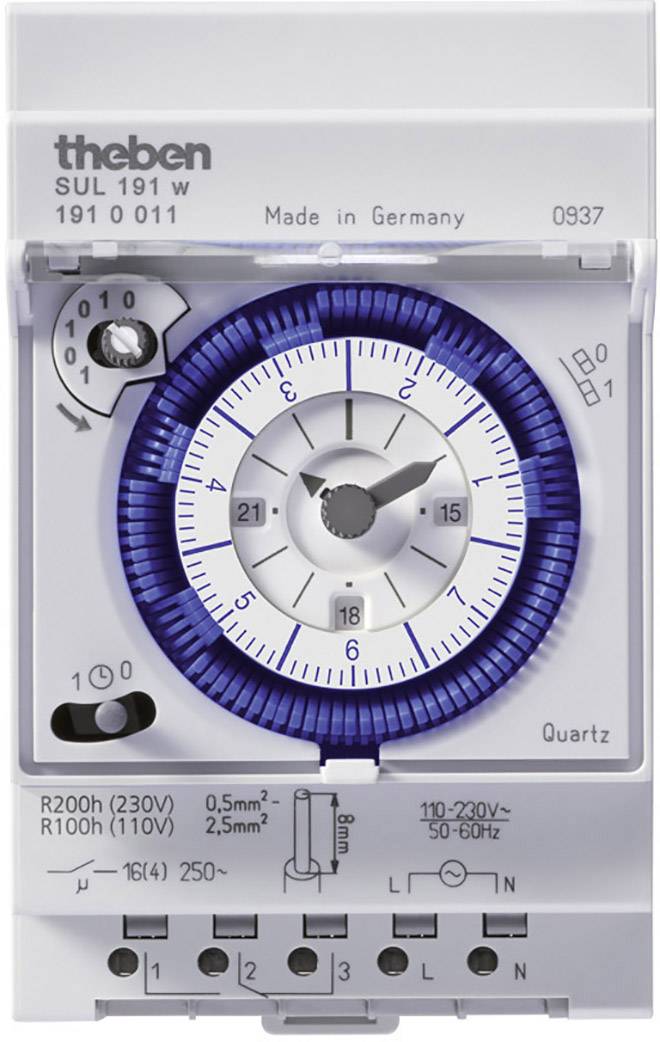

Theben SUL 191 w DIN rail mount timer 110 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Width in the division units: 3
- Nominal Switching power at 250 V AC: 16 A
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
110 V
- Channels
1-channel
- Type
SUL 191 w
- Manufacturer part #
1910011
- Dim
(L x W x H) 60 x 52.5 x 90 mm
- Width
52.5 mm
- Height
90 mm
- Length
60 mm
- Mounting type
DIN rail
DIN rail
52.5
90 mm
60 mm
Change-over contact
3
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158250 Theben SUL 191 w DIN rail mount timer 110 V
User & Safety Instructions
User & Safety Instructions 2158250 Theben SUL 191 w DIN rail mount timer 110 V
Description
Series mount timer, 200 hour power reserve, width 3 TE, 7-day program, shortest switching time 2 hours, clock for time display and 12h/24h detection, time correction in and counter-clockwise possible, Circuit selection, and hand switch with 3 positions: continuous-ON/AUTO/continuous-OFF, switching state display, DuoFix spring-plug terminals
