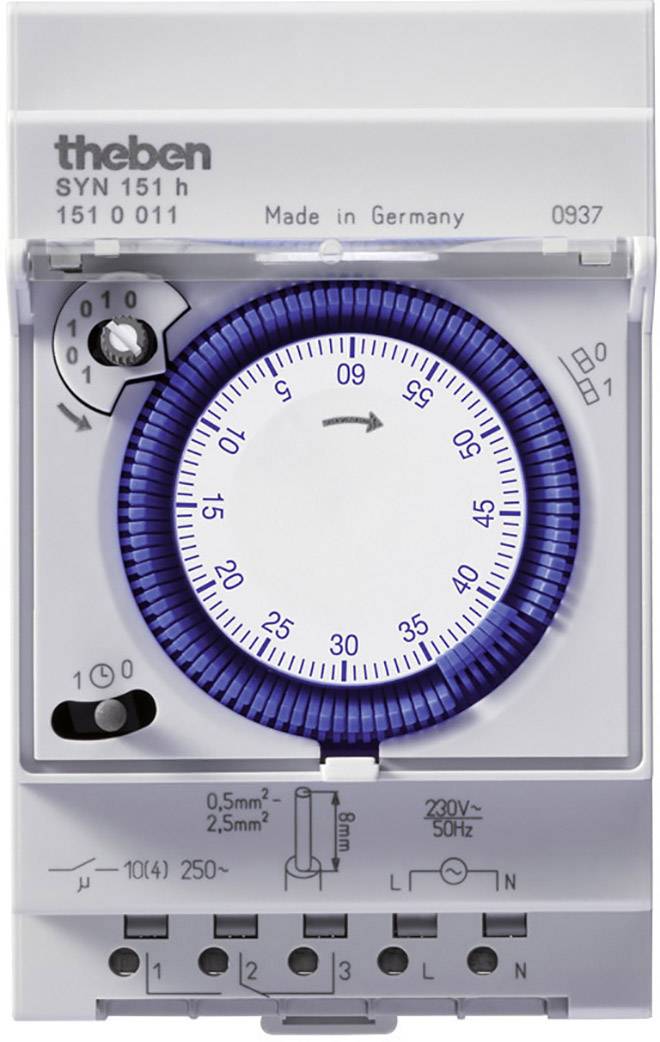

Theben SYN 151 h DIN rail mount timer 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Width in the division units: 3
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
230 V AC
- Channels
1-channel
- Type
SYN 151 h
- Manufacturer part #
1510011
- Factory colour
Multicolour
- Dim
(L x W x H) 60 x 52.5 x 90 mm
- Width
52.5 mm
- Height
90 mm
- Length
60 mm
- Features
Programmable ON/AUTO/OFF settings
- Mounting type
DIN rail
DIN rail
52.5
90 mm
60 mm
Change-over contact
3
AC
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158251 Theben SYN 151 h DIN rail mount timer 230 V AC
User & Safety Instructions
User & Safety Instructions 2158251 Theben SYN 151 h DIN rail mount timer 230 V AC
Description
Series mount timer w/o power reserve, width 52.5 mm, 60 Min. Segment program, shortest switching time 37.5 sec, Circuit selection, and hand switch with 3 positions: continuous-ON/AUTO/continuous-OFF, switching state display, spring-plug terminals for each 2 conductor
