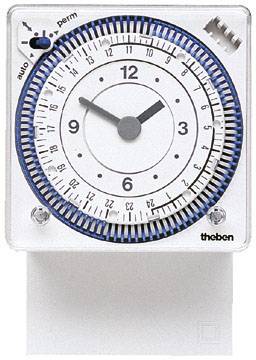

Theben SYN 169 s Timer analogue 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Width in the division units: 3
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: front panel installation 72 x 72 mm
- Product type
Timer
- Operating voltage
230 V AC
- Channels
1-channel
- Type
analogue
- Type
SYN 169 s
- Manufacturer part #
1690801
- Dim
(L x W x H) 69 x 72 x 104 mm
- Width
72 mm
- Height
104 mm
- Length
69 mm
- Switching cycle
24h mode
- Weight
0
Panel mounting 72x72 mm
72
104 mm
69 mm
Change-over contact
3
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157997 Theben SYN 169 s Timer analogue 230 V AC
User & Safety Instructions
User & Safety Instructions 2157997 Theben SYN 169 s Timer analogue 230 V AC
Description
Timer with plug-in base, front frame 72 x 72 mm, clamping bracket, without power reserve, 24 hour program, the shortest switching time is 15 mins.
This text is machine translated.
