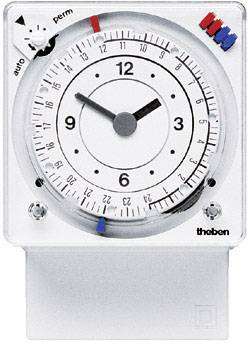

Theben SYN 269 h Timer analogue
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time changeover: No
- Frequency of the power supply: 50 Hz
- Type of voltage of the power supply voltage AC
- Contact Type: changer
- Protection class: IP20
- Installation type: front panel installation 72 x 72 mm
- Product type
Timer
- Channels
1-channel
- Type
analogue
- Type
SYN 269 h
- Manufacturer part #
2690008
- Dim
(L x W x H) 54 x 72 x 104 mm
- Width
72 mm
- Height
104 mm
- Length
54 mm
- Features
Progammable
- Switching cycle
7 day mode
Panel mounting 72x72 mm
72
104 mm
54 mm
Change-over contact
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2157994 Theben SYN 269 h Timer analogue
User & Safety Instructions
User & Safety Instructions 2157994 Theben SYN 269 h Timer analogue
Description
Timer with plug-in base, front frame 72 x 72 mm, clamping bracket, without power reserve, switchable 24 hours/7 days programmable, shortest switching time 20 Min./2 hours, circuit pre-selection and continuous circuit
