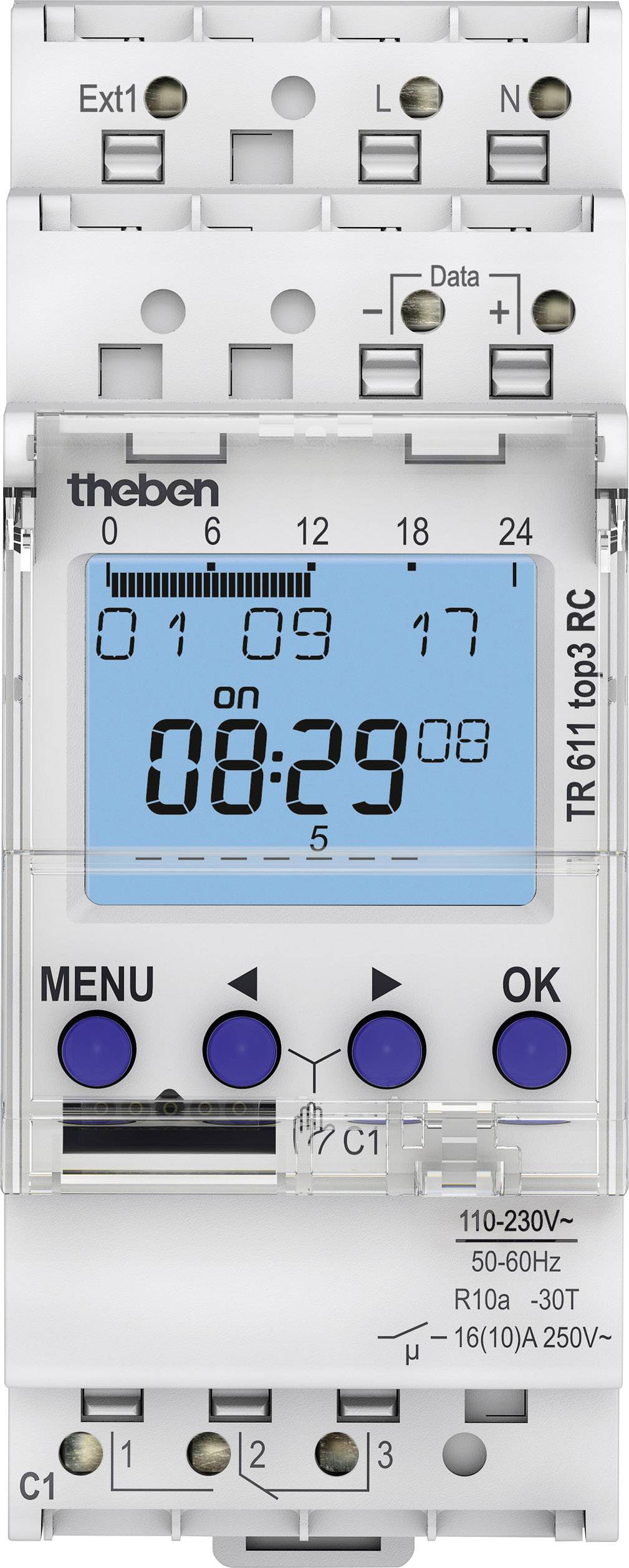

Theben TR 611 top3 RC DIN rail mount timer 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Contact Type: changer
- Protection class: IP20
- Product type
DIN rail mount timer
- Operating voltage
230 V AC
- Channels
1-channel
- Type
TR 611 top3 RC
- Manufacturer part #
6110330
- Min. power reserve
10 years
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158638 Theben TR 611 top3 RC DIN rail mount timer 230 V AC
User & Safety Instructions
User & Safety Instructions 2158638 Theben TR 611 top3 RC DIN rail mount timer 230 V AC
User & Safety Instructions 2158638 Theben TR 611 top3 RC DIN rail mount timer 230 V AC
Description
Digital timer clock for DIN rail, 1-channel, week program, DCF or GPS radio-control with external antenna possible, external input, 3 special programs, width 2 TE, App-Programmierung possible, secure transmission via optional Bluetooth Low Energy OBELISK top 3, Maximum Security from manipulation, time switching programs can only be transferred from the App in the watch, if the Bluetooth OBELISK top 3 in the watch is 100% compatible with top 2, 600 Watt LED performance, 800 Ampere / 200s inrush current, 0.8 Watt standby power, DuoFix plug-in terminals, power reserve and programd summer/winter time changeover, OBELISK interface for PC-programming.
This text is machine translated.
This text is machine translated.
