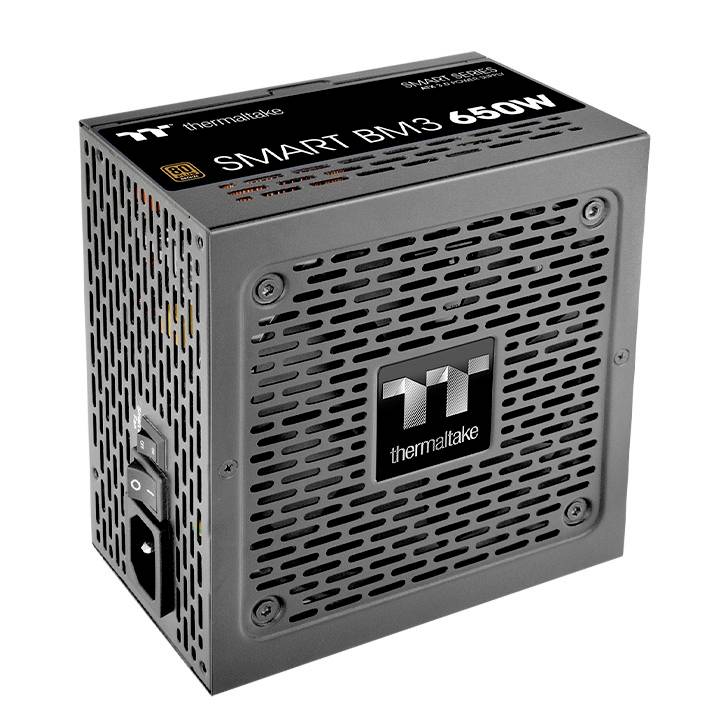

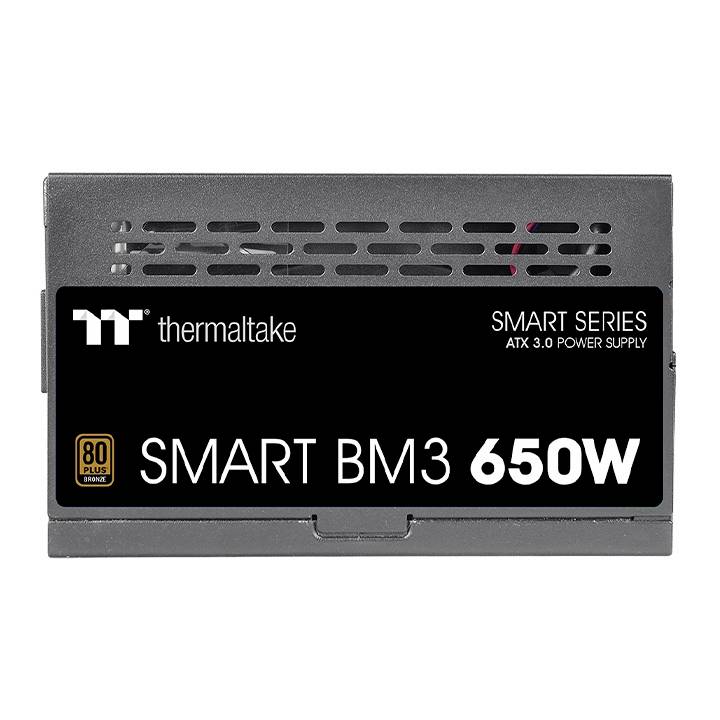

Thermaltake Smart BM3 PC power supply unit 650 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Modular
Yes
Certification
80 PLUS Bronze
Form factor
ATX
Thermaltake Smart BM3 PC power supply unit
Highlights & Details
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Bronze
Technical specifications
- Product type
PC power supply unit
- PSU output power
650 W
- Modular
Yes
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Multicolour
- ATX version
ATX 3.0
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
2.28 kg
- -12V / DC
0.3 A
- -5V DC
3 A
- +12 V/DC (1)
54.2 A
- 5 V DC
18 A
- 24-pin
1
- 4-pin Molex
7
- 6-pin PCIe
4
- 6-pin PCIe
4
- 5-pin SATA
3
- Features
ATX 3.0
PCIe Gen 5.0
- Output rating > 500 W
650 W
- Power rating
501 - 750 W
- Fan size
120 mm
- 3.3V DC
18 A
- Operating voltage
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937693 Thermaltake Smart BM3 PC power supply unit 650 W ATX 80 PLUS Bronze
Description
80 PLUS Bronze certified semi-modular power supply, compatible with Intel ATX 3.0 specifications. It is equipped with a native PCIe Gen 5.0 port and can supply entry level Next-Gen GPUs with a 12VHPWR cable.
Fully compatible with Intel ATX 3.0 standards
The Smart BM3 series is fully compatible with Intel ATX 3.0 specifications, which support up to 200% power output, achieve 60% efficiency at low load and meet the required timing standards for power supplies.
PCIe Gen 5.0 ready

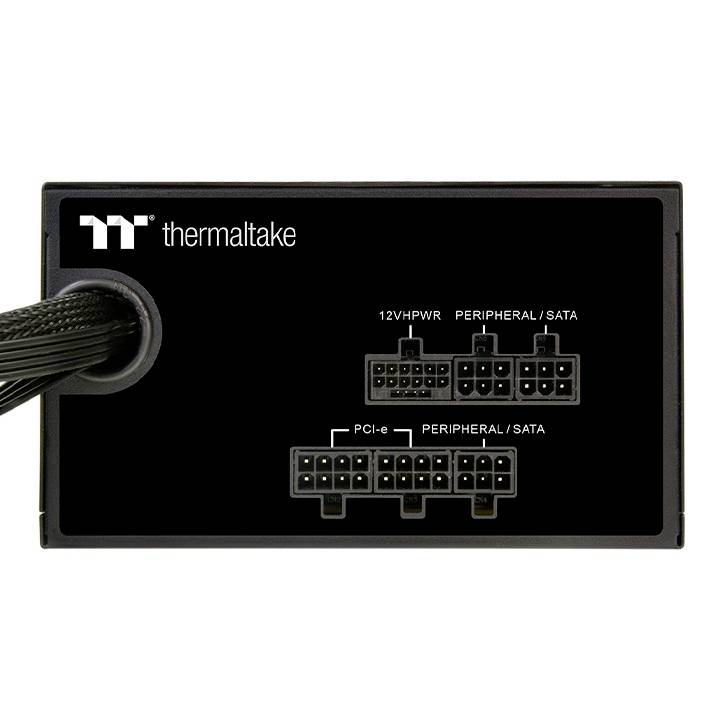

The Smart BM3 Bronze series is equipped with a 16-pin connector to provide a strong and stable performance that allows the power supply to operate next generation GPUs natively.
The wattage specified on the 12VHPWR connector is the recommended wattage rating. (Ref. Intel design guideline)
The Smart BM3 550W's native 16-pin (12VHPWR) PCIe port can deliver up to 300 W for PCIe 5.0 graphics cards.
Compatible with the latest graphics cards
With the increasing power consumption of graphics cards also their need for electricity increases. The Smart BM3 series was developed to support Nvidia and AMD graphics cards. It supports 8-pin PCIe cable for AMD graphics cards and entry-level RTX 40 series graphics cards and has a 1 x 16-pin connector for RTX 40 series cards that require a PCIe Gen 5.0 connector to supply the graphics cards according to their different connection options.
Be Smart, Stay Quiet

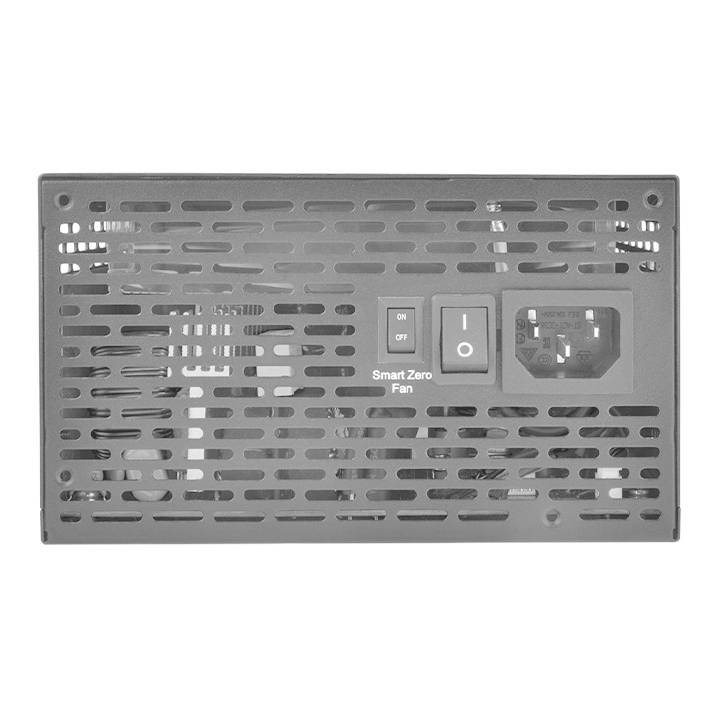

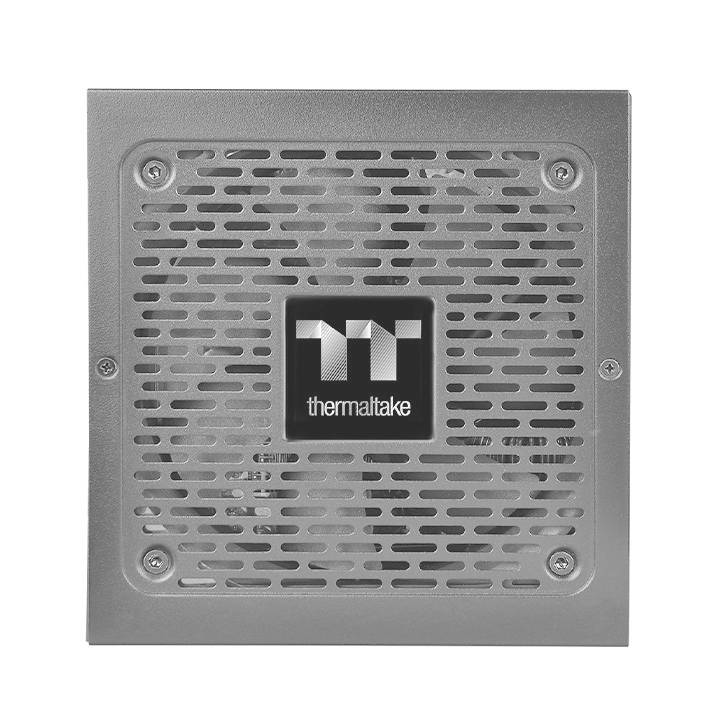

Fitted with a 120-mm FDB-fan, which provides for an excellent air current. In addition, the fan rotates with the Smart Zero fan function only when the load exceeds 20 % of power supply, which minimizes unwanted noises.
High quality Japanese 105°C/221°F main electrolytic capacitor
High quality Japanese main electrolytic capacitor improves the durability of the power supplies and ensures the stability and reliability of the Smart BM3 series.
Single +12V rail with high current and DC-to-DC design
The powerful single +12V-rail can correctly deliver the power required for the best compatibility. The use of LLC and DC/DC circuits provides for a very stable operation and improved voltage regulation.
Integrated protection in industrial quality
To protect the hardware, the Smart BM3 is equipped with industrial protective devices: OCP (over current protection), OVP (over voltage protection), UVP (under voltage protection), OPP (over Power protection), SCP (short circuit protection), OTP (over temperature protection).

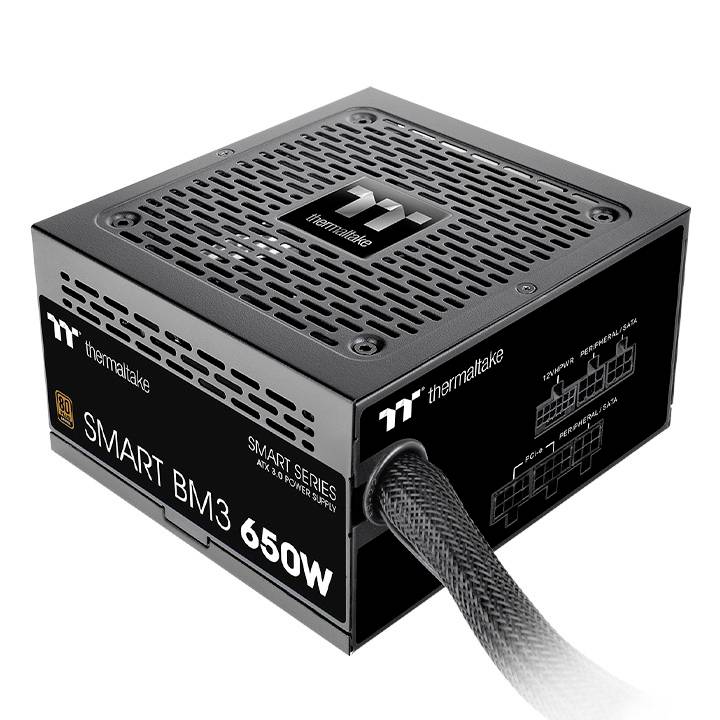

Semi-modular flat cable design
Soft, flat, black cables come with a jacket that simplifies cable installation and provides optimum voltage to the system.
80 PLUS Bronze certified and Intel C6/C7 States ready
The Smart BM3 Bronze series saves energy through its high energy efficiency of up to 85% and is certified according to 80 PLUS Bronze. It is optimized to work with all generations of Intel processors to achieve maximum energy savings.
This text is machine translated.
