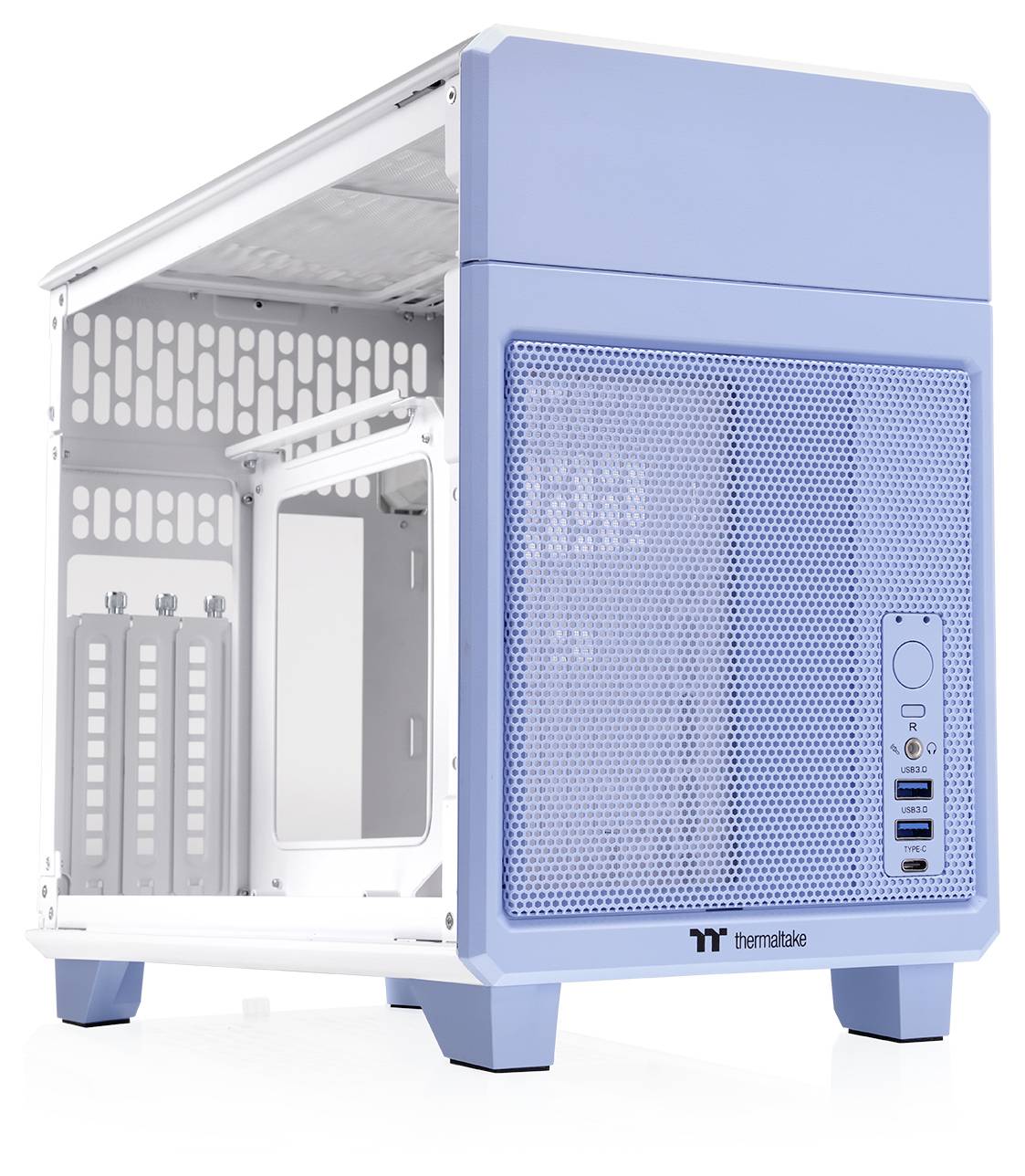

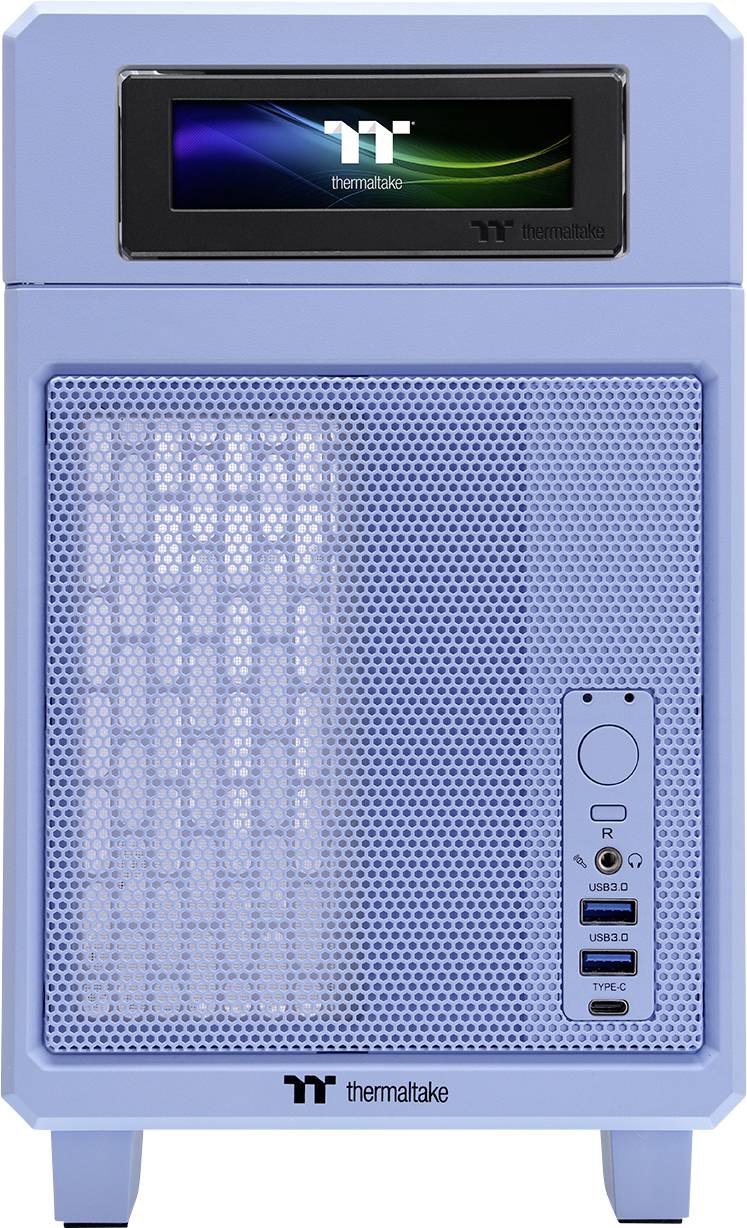

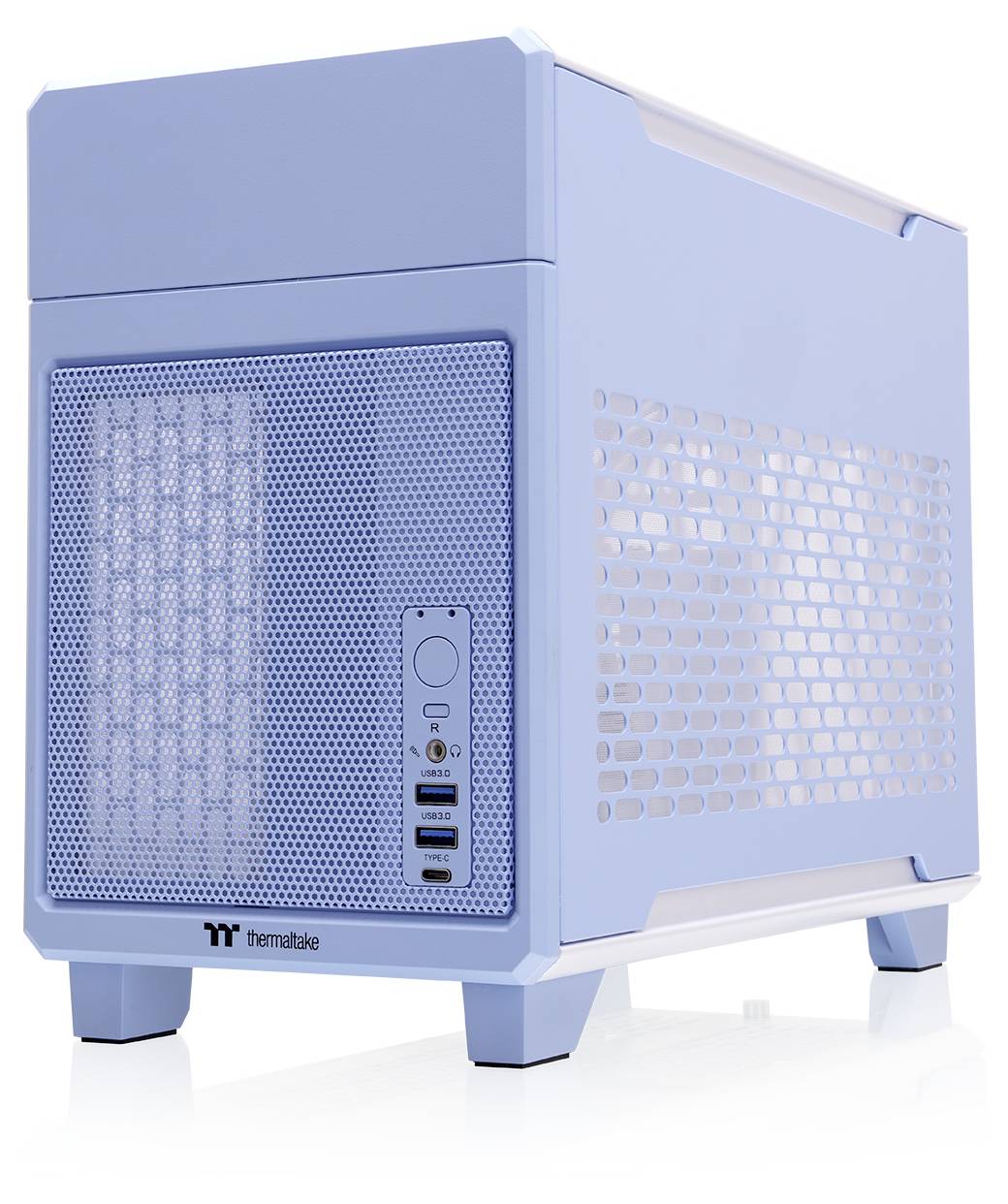

Thermaltake TR100 Hydrangea Blue Mini tower Game console casing Baby blue Window
EAN:
Part number:
Item no:
Thermaltake TR100 Hydrangea Blue Mini tower Game console casing
Technical specifications
- Tempered Glass x3 (4 mm thickness) side panel
- Material SPCC
- Cooling system:
- Top (exhaust) 120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
- Rear(exhaust):120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
- Drive-Bay:
- -Accessible: 2 x 2.5"(with side bracket)
- -Hidden: 2 x 3.5” (without rear fan)
- Expansion slots: 2
- Motherboards: 6.7” x 6.7” (Mini ITX)
- I/O port USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 2
- PSU: STANDARD PS2 PSU
- Supporter support:
- -Top 1 x 120mm, 1 x 140mm
- Rear 1 x 120mm, 1 x 140mm
- -Top of the PSU cover 1 x 120mm, 1 x 140mm
- Radiator support: Top: 1x120mm
- Clearance:
- -CPU cooler height limit: 190mm
- -VGA length limit: 330mm
- -PSU length limit: 180mm
- Box Size (L x W x H): 327 x 348 x 559mm / 12.9” x 13.7” x 22” inch
- Cuft:2.25
- Product type
Game console casing
- Case type
Mini tower
- Factory colour
Baby blue
- Interfaces (front)
USB C® (USB 3.2 2nd gen)
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
2
- Width
266 mm
- Height
462.8 mm
- Depth
266 mm
- Weight
6.1
- Form factor
Mini-ITX
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 266 x 462.8 x 266 mm
- Features
Window
- No. of USB 3.2
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3385579 Thermaltake TR100 Hydrangea Blue Mini tower Game console casing Baby blue Window
Description
Scope of delivery
- 1 housing, accessories
- This text is machine translated.
