Thermo TECH Fabric Heating foil 12 V DC, 12 V AC 15 W IP rating IPX4 (L x W) 350 mm x 260 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
12 V DC
12 V AC
Power
15 W
IP rating
IPX4
Surface temperature
36 °C
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 1 Piece(s) available
Highlights & Details

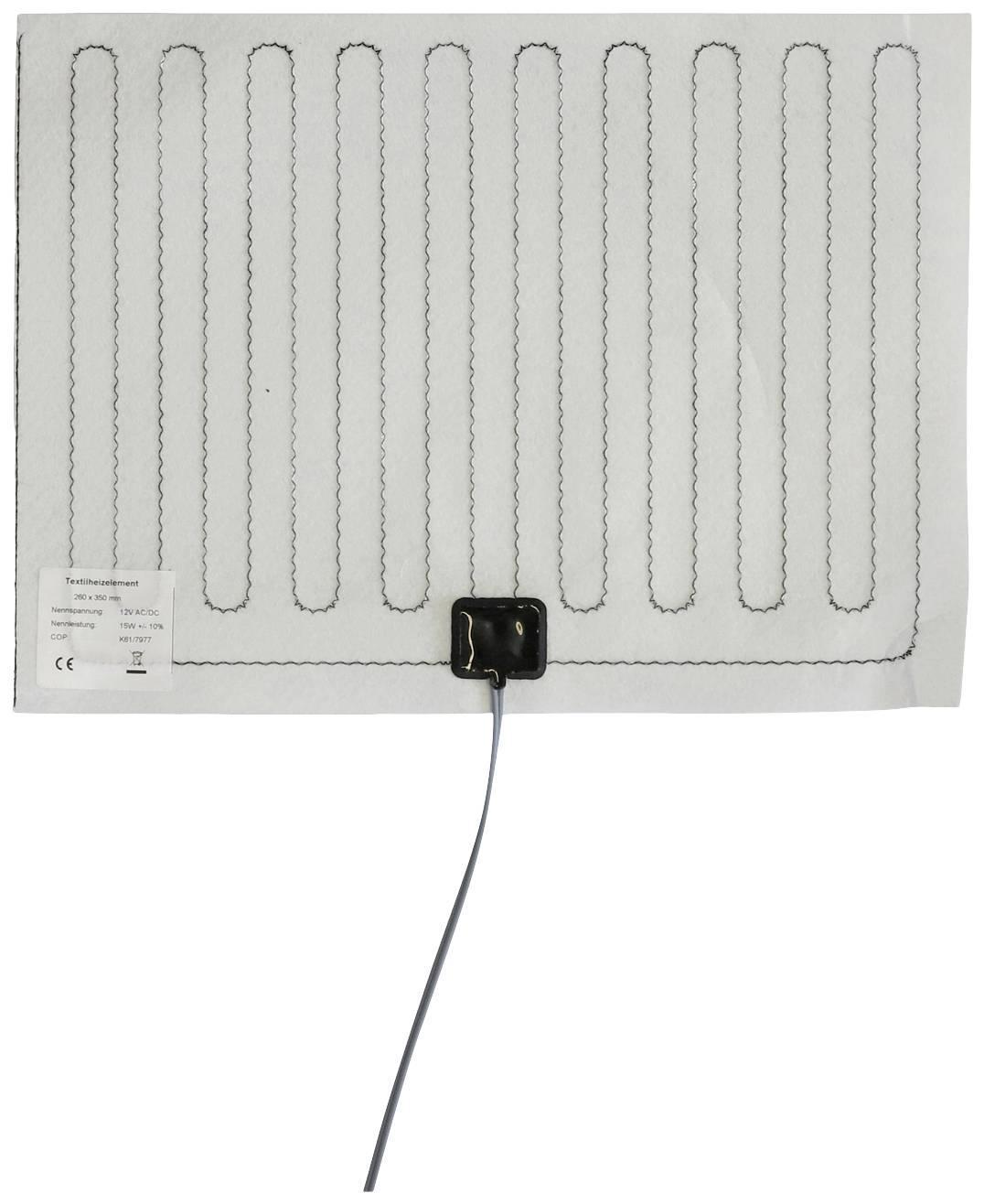

Textile heating element, 12V AC/DC, 15W +/-10%, 260x350mm
- Polyester fabric
- Insulated heating conductor
- Without adhesive tape
- Twin cable 2x 0.75 mm² x 1000mm
- This text is machine translated.
Technical specifications
- Constant operating temperature -30 °C to +105 °C
- Heat density 0,016 W/cm²
- Product type
Heating foil
- Operating voltage
12 V DC
12 V AC
15 W
- Material
Fabric
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
1000 mm
IPX4
- Min. surface temperature
-30 °C
- Surface temperature
36 °C
- Max. surface temperature
+105 °C
- Length
350 mm
- Width
260 mm
- Dim
(L x W) 350 mm x 260 mm
Documents & Downloads
Datasheet
Datasheet 2986453 Thermo TECH Fabric Heating foil 12 V DC, 12 V AC 15 W IP rating IPX4 (L x W) 350 mm x 260 mm
User & Safety Instructions
User & Safety Instructions 2986453 Thermo TECH Fabric Heating foil 12 V DC, 12 V AC 15 W IP rating IPX4 (L x W) 350 mm x 260 mm
