Thermo TECH Fabric Heating foil 24 V DC, 24 V AC 20 W IP rating IPX4 (L x W) 265 mm x 180 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
20 W
IP rating
IPX4
Surface temperature
45 °C
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details

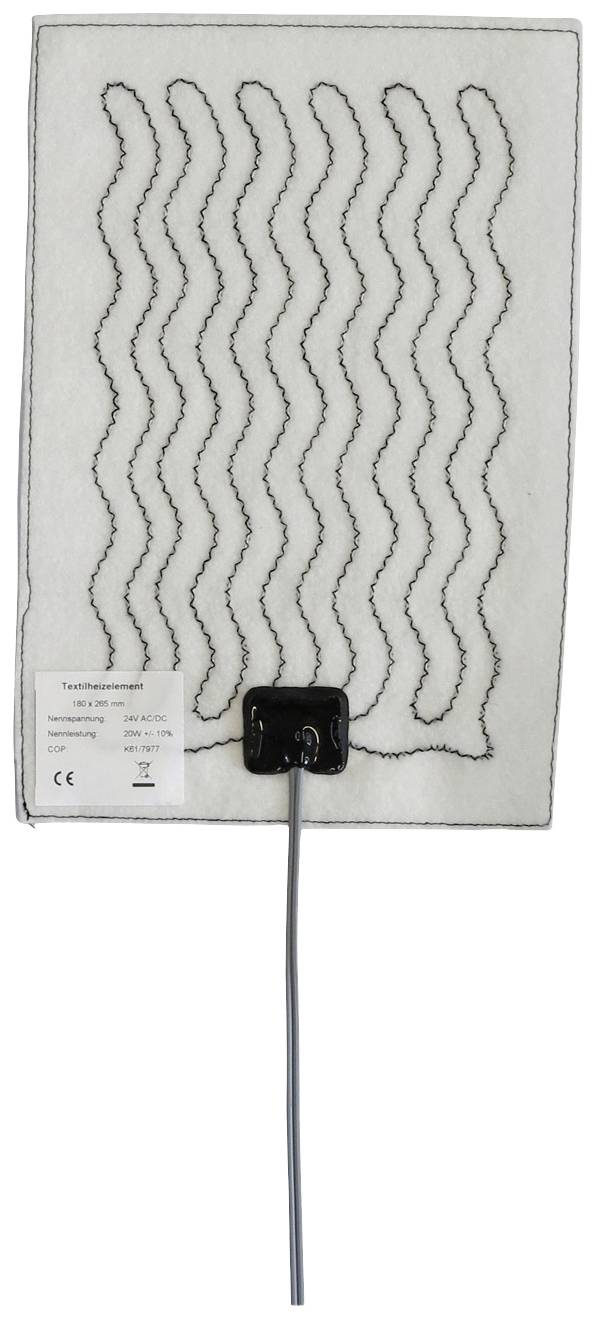

Textile heating element, 24V AC/DC, 20W +/-10%, 180x265mm
- Polyester fleece
- Insulated heating conductor
- Without adhesive tape
- Twin cable 2x 0.75 mm² x 1000mm
- This text is machine translated.
Technical specifications
- Constant operating temperature -30 °C to +105 °C
- Heat density 0,042 W/cm²
- Product type
Heating foil
- Operating voltage
24 V DC
24 V AC
20 W
- Material
Fabric
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
1000 mm
IPX4
- Min. surface temperature
-30 °C
- Surface temperature
45 °C
- Max. surface temperature
+105 °C
- Length
265 mm
- Width
180 mm
- Dim
(L x W) 265 mm x 180 mm
