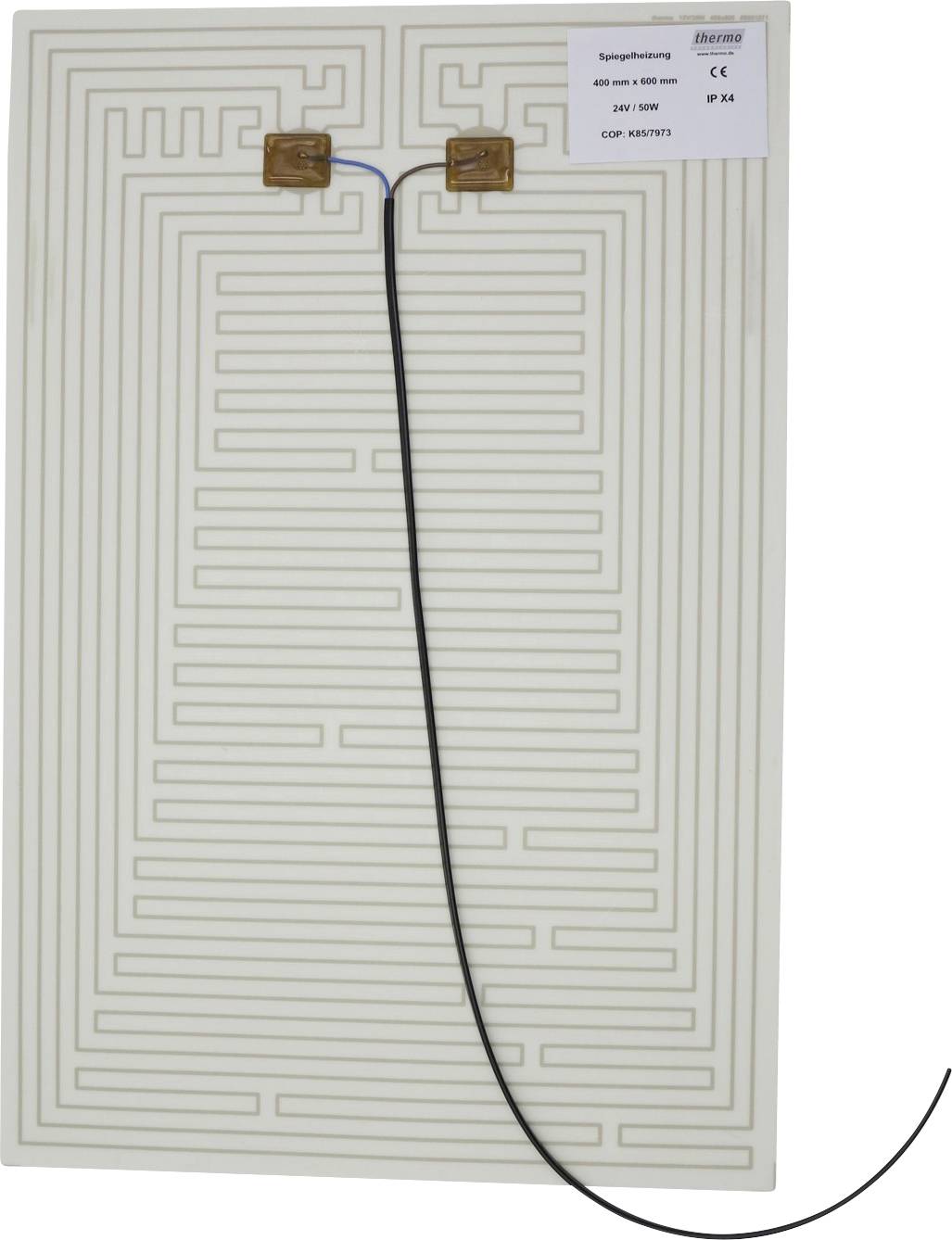

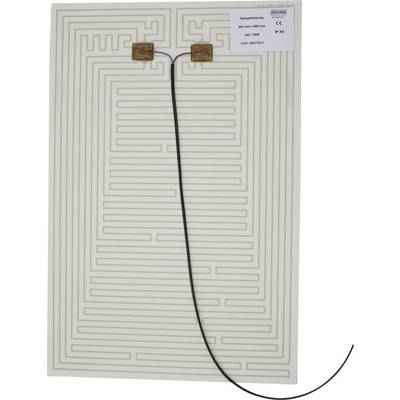

Thermo TECH Heating foil 24 V AC, 24 V DC 50 W IP rating IPX4 (L x W) 600 mm x 400 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Heat density 0.021 W/cm²
- Operating voltage
24 V AC
24 V DC
50 W
- Material thickness
0.30 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- Length
600 mm
- Width
400 mm
- Dim
(L x W) 600 mm x 400 mm
- RoHS-compliant
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 3742801 Thermo TECH Heating foil 24 V AC, 24 V DC 50 W IP rating IPX4 (L x W) 600 mm x 400 mm
User & Safety Instructions
User & Safety Instructions 3742801 Thermo TECH Heating foil 24 V AC, 24 V DC 50 W IP rating IPX4 (L x W) 600 mm x 400 mm
Description
Fully self-adhesive surface-adhesive, connection cable H03VVH2-F 2x0.75 mm2, black, oval, approx. 800 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
