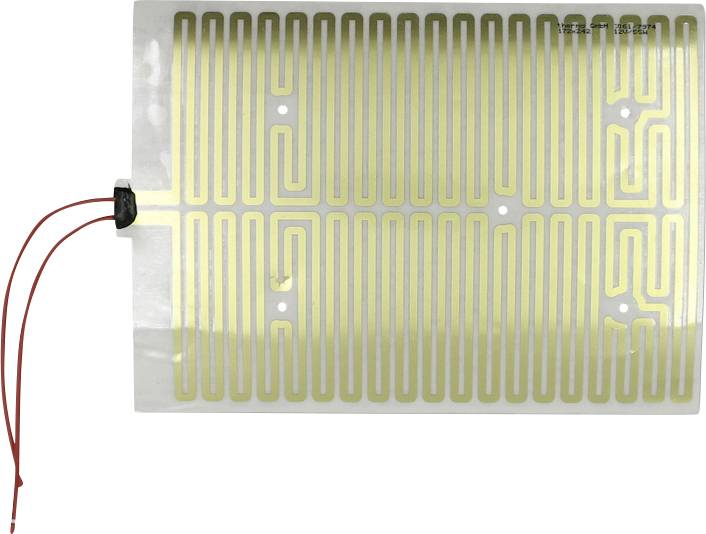

Thermo TECH PET Heating element 12 V AC, 12 V DC 55 W IP rating IPX4 (L x W) 232 mm x 172 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
12 V AC
12 V DC
Power
55 W
IP rating
IPX4
Length
232 mm
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Heat density 0.138 W/cm²
- Product type
Heating element
- Operating voltage
12 V AC
12 V DC
55 W
- Material
PET
IPX4
- Min. surface temperature
-30 °C
- Max. surface temperature
+85 °C
- Length
232 mm
- Width
172 mm
- Dim
(L x W) 232 mm x 172 mm
Documents & Downloads
Datasheet
Datasheet 3742775 Thermo TECH PET Heating element 12 V AC, 12 V DC 55 W IP rating IPX4 (L x W) 232 mm x 172 mm
User & Safety Instructions
User & Safety Instructions 3742775 Thermo TECH PET Heating element 12 V AC, 12 V DC 55 W IP rating IPX4 (L x W) 232 mm x 172 mm
Description
Adhesive tape Crown 612, silicone leads AWG 18 x 150 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
