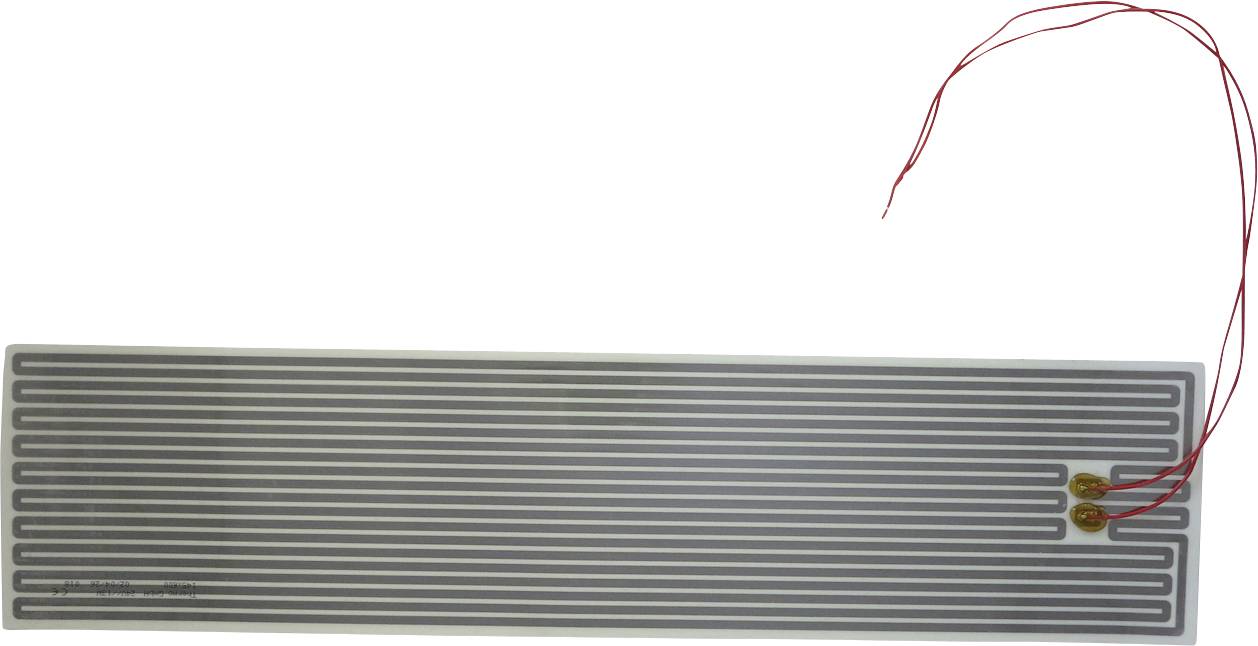

Thermo TECH PET Heating element 24 V AC, 24 V DC 13 W IP rating IPX4 (L x W) 600 mm x 145 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
24 V AC
24 V DC
Power
13 W
IP rating
IPX4
Length
600 mm
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Heat density 0.015 W/cm²
- Product type
Heating element
- Operating voltage
24 V AC
24 V DC
13 W
- Material
PET
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-30 °C
- Max. surface temperature
+85 °C
- Length
600 mm
- Width
145 mm
- Dim
(L x W) 600 mm x 145 mm
Documents & Downloads
Datasheet
Datasheet 3742772 Thermo TECH PET Heating element 24 V AC, 24 V DC 13 W IP rating IPX4 (L x W) 600 mm x 145 mm
User & Safety Instructions
User & Safety Instructions 3742772 Thermo TECH PET Heating element 24 V AC, 24 V DC 13 W IP rating IPX4 (L x W) 600 mm x 145 mm
Description
Underside self-adhesive, silicone connecting wires AWG 22 x 500 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
