Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 5 W IP rating IPX4 (L x W) 80 mm x 23 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
12 V DC
12 V AC
Power
5 W
IP rating
IPX4
Surface temperature
124 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 2 Piece(s) available
Highlights & Details

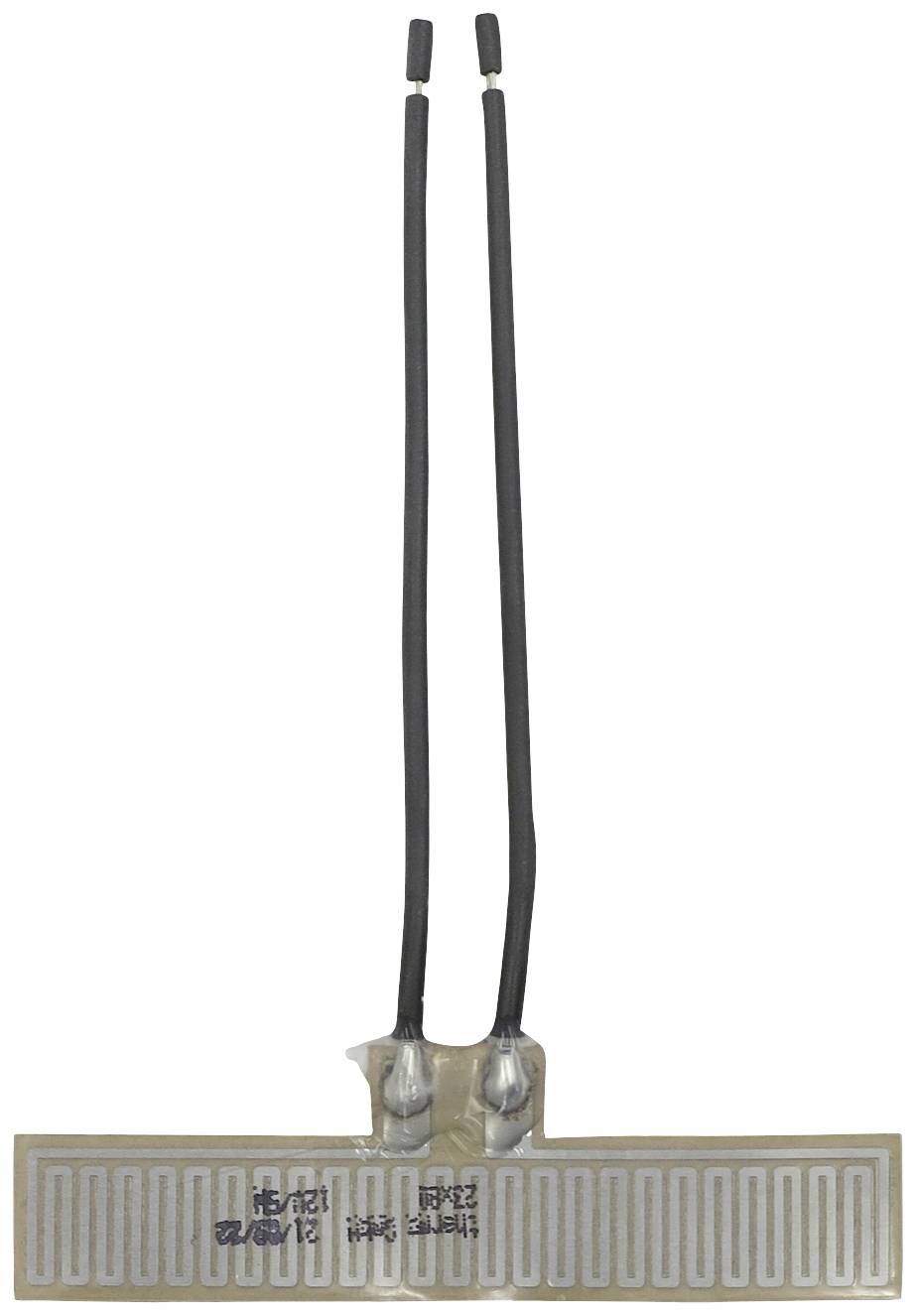

PET heating element, heat conductor etched, 12V AC/DC, 5.0W +/-10%, 23x80mm
- Heat conductor etched
- Underside self-adhesive
- Helutherm 145 single wire
- 0.5 mm² x 500 mm
- This text is machine translated.
Technical specifications
- Continuous operating temperature -40 °C to +80 °C.
- Heat density 0,272 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
12 V DC
12 V AC
5 W
- Material
PET
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
500 mm
IPX4
- Min. surface temperature
-40 °C
- Surface temperature
124 °C
- Max. surface temperature
+80 °C
- Length
80 mm
- Width
23 mm
- Dim
(L x W) 80 mm x 23 mm
Documents & Downloads
Datasheet
Datasheet 2986461 Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 5 W IP rating IPX4 (L x W) 80 mm x 23 mm
User & Safety Instructions
User & Safety Instructions 2986461 Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 5 W IP rating IPX4 (L x W) 80 mm x 23 mm
