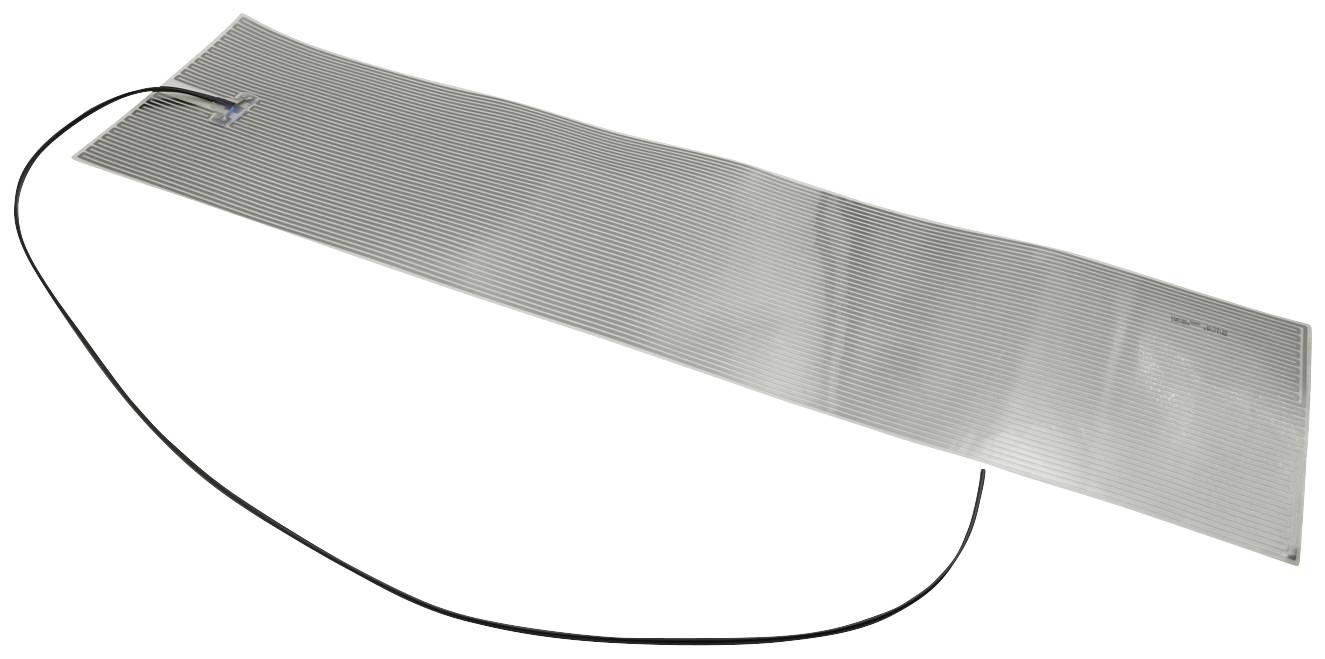

Thermo TECH PET Heating foil self-adhesive 230 V DC, 230 V AC 115 W IP rating IPX4 (L x W) 800 mm x 195 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
230 V DC
230 V AC
Power
115 W
IP rating
IPX4
Surface temperature
56 °C
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 1 Piece(s) available
Highlights & Details
PET heating element, heat conductor etched, 230V AC/DC, 115W +/-10%, 195x800mm
- Heat conductor etched
- Underside self-adhesive
- Helutherm 145 single wire
- 0.5 mm² x 500 mm
- This text is machine translated.
Technical specifications
- Continuous operating temperature -40 °C to +80 °C.
- Heat density 0,074 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
115 W
- Material
PET
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
500 mm
IPX4
- Min. surface temperature
-40 °C
- Surface temperature
56 °C
- Max. surface temperature
+80 °C
- Length
800 mm
- Width
195 mm
- Dim
(L x W) 800 mm x 195 mm
