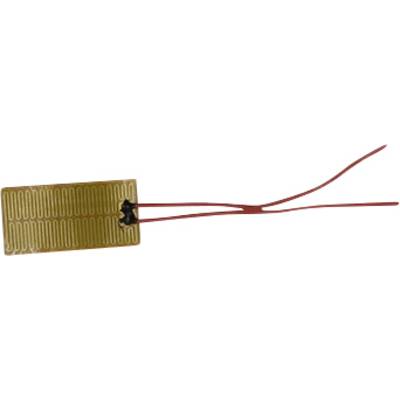

Thermo TECH Polyamide Heating element 12 V AC, 12 V DC 3.2 W IP rating IPX4 (L x W) 50 mm x 25 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
12 V AC
12 V DC
Power
3.2 W
IP rating
IPX4
Length
50 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Heat density 0.213 W/cm²
- Product type
Heating element
- Operating voltage
12 V AC
12 V DC
3.2 W
- Material
Polyamide
- Material thickness
0.2 mm
IPX4
- Min. surface temperature
-30 °C
- Max. surface temperature
+150 °C
- Length
50 mm
- Width
25 mm
- Dim
(L x W) 50 mm x 25 mm
Documents & Downloads
Datasheet
Datasheet 3742765 Thermo TECH Polyamide Heating element 12 V AC, 12 V DC 3.2 W IP rating IPX4 (L x W) 50 mm x 25 mm
User & Safety Instructions
User & Safety Instructions 3742765 Thermo TECH Polyamide Heating element 12 V AC, 12 V DC 3.2 W IP rating IPX4 (L x W) 50 mm x 25 mm
Description
Adhesive tape 3M 966, silicone leads AWG 22 x 100 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
