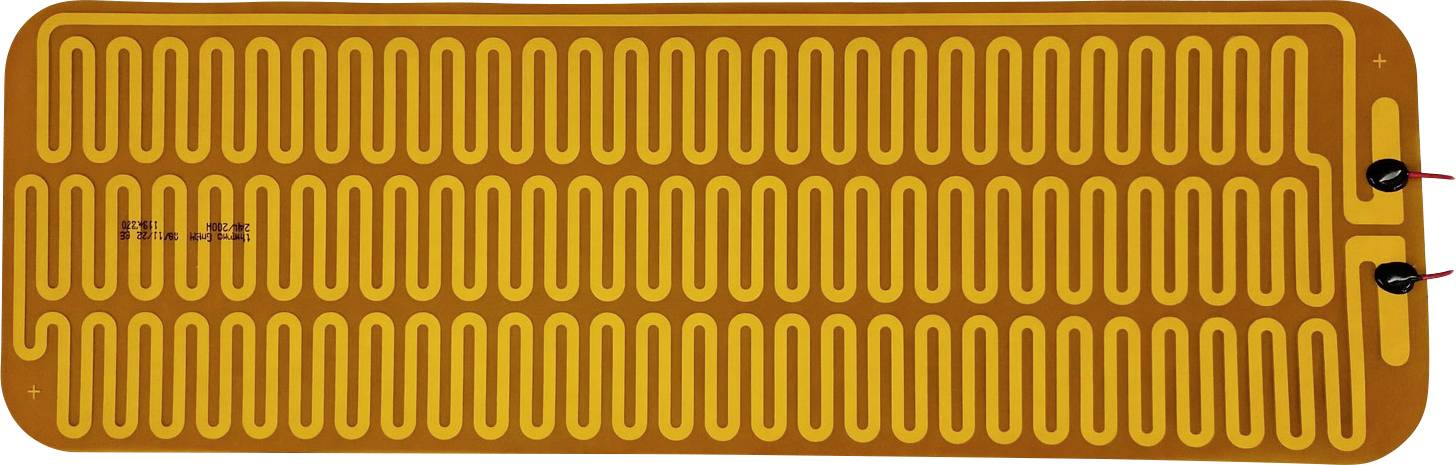

Thermo TECH Polyamide Heating element 24 V AC, 24 V DC 200 W IP rating IPX4 (L x W) 370 mm x 119 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
24 V AC
24 V DC
Power
200 W
IP rating
IPX4
Length
370 mm
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Heat density 0.454 W/cm²
- Product type
Heating element
- Operating voltage
24 V AC
24 V DC
200 W
- Material
Polyamide
- Material thickness
0.2 mm
IPX4
- Max. surface temperature
+180 °C
- Length
370 mm
- Width
119 mm
- Dim
(L x W) 370 mm x 119 mm
Documents & Downloads
Datasheet
Datasheet 3742766 Thermo TECH Polyamide Heating element 24 V AC, 24 V DC 200 W IP rating IPX4 (L x W) 370 mm x 119 mm
User & Safety Instructions
User & Safety Instructions 3742766 Thermo TECH Polyamide Heating element 24 V AC, 24 V DC 200 W IP rating IPX4 (L x W) 370 mm x 119 mm
Description
No adhesive tape, PTFE connection wires AWG 20 x 300 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
